Horner HE693RTD601R Original Industrial Spare Series 90-30 Compatible: Ensuring System Stability in Critical Automation Environments

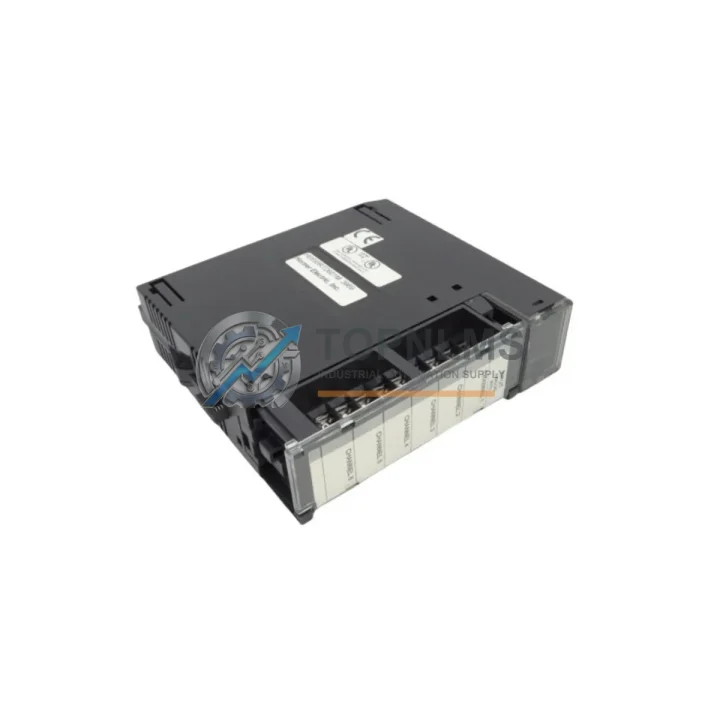

The Horner HE693RTD601R is a 6-channel RTD (Resistance Temperature Detector) analog input module engineered for the GE Series 90-30 PLC platform. Designed for demanding industrial environments, this module provides precise temperature measurement across six independent RTD channels, making it an essential component in process control, HVAC automation, furnace management, and continuous manufacturing lines. As an original spare part, the HE693RTD601R delivers the signal fidelity and firmware compatibility that aftermarket alternatives cannot guarantee — a critical consideration when system uptime is non-negotiable.

In industrial facilities where aging GE Series 90-30 control systems remain the backbone of production, sourcing verified original spare modules is the single most effective strategy for preventing unplanned downtime. The HE693RTD601R slots directly into the Series 90-30 rack without configuration changes, preserving your existing ladder logic, I/O mapping, and HMI tag structures. This plug-and-replace compatibility dramatically reduces mean time to repair (MTTR) during emergency maintenance windows.

Critical Technical Specs

Preventive Maintenance Strategy

When a Series 90-30 system requires RTD module replacement, experienced maintenance engineers treat the event as a trigger for a broader system health audit. The HE693RTD601R operates within an interconnected control architecture, and its performance depends on the integrity of surrounding components. A structured preventive maintenance approach significantly reduces the risk of cascading failures.

Begin by inspecting the Series 90-30 power supply module (such as the IC693PWR321 or IC693PWR330) — an aging or undersized power supply is a leading cause of analog module instability and erratic RTD readings. Verify output voltage stability under load before commissioning the replacement HE693RTD601R. Simultaneously, check the Series 90-30 CPU module (IC693CPU364 or IC693CPU374) for firmware currency and memory integrity, as outdated CPU firmware can misinterpret analog I/O data from newer module revisions.

Inspect all RTD field wiring and terminal blocks connected to the module. Corroded or loose terminations on the IC693ACC300 or equivalent terminal strip assemblies introduce resistance errors that mimic sensor faults, leading to false alarms and unnecessary module replacements. Re-torque all screw terminals and apply dielectric grease where moisture ingress is a concern. If the facility uses signal isolators or signal conditioners between field RTD sensors and the PLC input, verify that the isolator output range matches the HE693RTD601R input configuration — mismatched signal ranges are a common source of calibration drift.

While the control cabinet is open, assess the condition of the Series 90-30 I/O expansion rack and its backplane connectors. Oxidized backplane contacts cause intermittent communication faults that are notoriously difficult to diagnose under load. If the system includes discrete I/O modules such as the IC693MDL645 (24VDC input) or IC693MDL741 (relay output), inspect their status LEDs and verify that field devices are within rated load specifications. Overloaded relay outputs are a frequent source of backplane noise that degrades analog measurement accuracy.

For facilities running Series 90-30 communication modules — including Ethernet interfaces (IC693CMM321) or Genius Bus Controllers (IC693BEM331) — confirm that network traffic loads are within module specifications. Excessive polling rates from SCADA systems can starve the CPU of scan time, indirectly affecting analog I/O update rates. If the system interfaces with a GE Fanuc HMI or operator panel, verify that tag refresh rates are configured appropriately to avoid false process alarms during module hot-swap procedures.

Finally, review your spare parts inventory for Series 90-30 rack assemblies (IC693CHS391, IC693CHS397) and fuse modules or circuit protection assemblies. A single blown fuse in the field wiring circuit can disable an entire RTD channel, and having replacement fuses and fuse holders on-site eliminates unnecessary procurement delays during emergency maintenance.

Strategic Replacement Solutions

The HE693RTD601R is a direct replacement for aging or failed RTD analog input modules in GE Series 90-30 systems without requiring any rack modification, rewiring, or software reconfiguration. This is a critical advantage in facilities where the original system integrator is no longer available and engineering documentation is incomplete — the module’s plug-and-play compatibility with the Series 90-30 backplane means maintenance technicians can execute the replacement without PLC programming expertise.

For facilities transitioning from older Horner Automation OEM variants of the Series 90-30 platform, the HE693RTD601R maintains full backward compatibility with GE Fanuc-branded equivalents such as the IC693ALG392. This cross-compatibility eliminates the need for costly system upgrades or I/O remapping projects, allowing production to resume within the same maintenance window. The module’s support for multiple RTD wiring configurations (2-wire, 3-wire, and 4-wire) provides additional flexibility when field sensor wiring does not match the original installation specification.

Stocking the HE693RTD601R as a critical spare reduces emergency procurement lead times from weeks to hours. For facilities operating multiple Series 90-30 systems across different production lines or plant areas, a single spare module can serve as a universal replacement across all installations, maximizing inventory efficiency and minimizing carrying costs. Each unit shipped from TOPNLMS undergoes functional verification testing prior to dispatch, and is covered by a 12-month warranty from the date of shipment.

Support FAQ

Q1: Is the HE693RTD601R compatible with all GE Series 90-30 rack sizes and CPU models?
Yes. The HE693RTD601R is compatible with all standard Series 90-30 rack configurations, including 5-slot, 10-slot, and expansion racks. It operates with all Series 90-30 CPU modules, including the IC693CPU331, IC693CPU341, IC693CPU351, IC693CPU364, and IC693CPU374. No hardware or firmware modifications are required.

Q2: What pre-shipment testing does TOPNLMS perform on the HE693RTD601R?
Each HE693RTD601R unit undergoes functional verification testing prior to shipment, including backplane communication checks and channel-level signal integrity verification. Units are shipped with original packaging where available, and each order includes a test report. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can I replace the HE693RTD601R without taking the entire PLC system offline?
The Series 90-30 platform does not natively support hot-swap of analog I/O modules. It is recommended to place the CPU in Stop mode and de-energize the affected rack slot before replacing the module. After installation, perform a channel-by-channel verification against your process baseline values before returning the system to Run mode. TOPNLMS recommends maintaining at least one spare HE693RTD601R on-site to minimize planned downtime duration.

Q4: How do I verify compatibility if my system uses a GE Fanuc-branded equivalent module?
The HE693RTD601R is functionally equivalent to GE Fanuc part number IC693ALG392 and is interchangeable in all standard Series 90-30 applications. If your system uses a different RTD module variant, contact TOPNLMS with your existing part number and we will confirm compatibility before shipment. Our technical team can also assist with I/O configuration verification for non-standard wiring arrangements.
