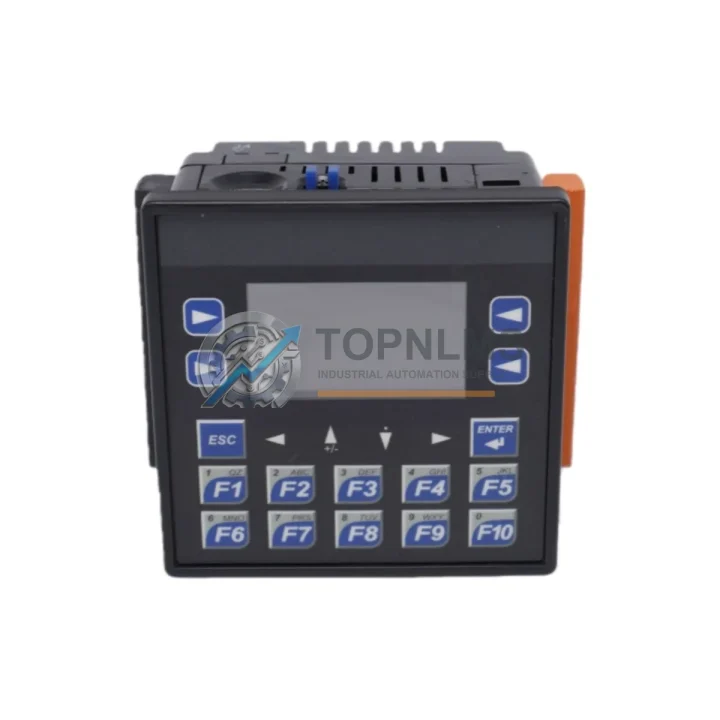

Horner APG HE-XE105UD Replacement for XL Series OCS: Smooth Migration from Legacy All-in-One Controllers

When your existing Horner APG XL Series OCS reaches end-of-life or becomes difficult to source, the HE-XE105UD offers a direct, field-proven upgrade path that preserves your existing wiring infrastructure, ladder logic programs, and control cabinet layout. Designed as a compact all-in-one Operator Control Station combining a color touchscreen HMI with a full-featured IEC 61131-3 PLC engine, the HE-XE105UD is engineered to minimize engineering rework and reduce system downtime during retrofit projects across manufacturing, water treatment, HVAC, and process automation applications.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful HE-XE105UD migration rarely involves the OCS unit alone. In practice, field engineers upgrading from discontinued XL Series controllers or aging HMI-PLC combinations will also evaluate the surrounding system components to ensure end-to-end compatibility.

On the I/O side, the HE-XE105UD works natively with Horner APG SmartStix I/O expansion modules, allowing existing distributed I/O wiring to remain largely intact. If your legacy system used discrete SmartStix digital input or analog output modules connected via the CAN bus, these can typically be retained without rewiring, significantly reducing retrofit labor costs. Where I/O counts have grown since the original installation, additional SmartStix modules can be added to the same CAN network without modifying the base OCS program structure.

For communication-intensive applications, the HE-XE105UD’s built-in RS-485 port supports Modbus RTU, making it straightforward to maintain existing connections to variable frequency drives (VFDs), flow meters, temperature controllers, and third-party field devices that were previously polled by the legacy OCS. If your plant network uses Ethernet-based protocols such as Modbus TCP or EtherNet/IP, the onboard Ethernet port handles these without additional communication modules or protocol converters.

In control cabinet installations where the original system included a separate Horner APG programming cable (typically a USB-to-serial or USB-to-CAN adapter used with Cscape software), the same cable and software environment is compatible with the HE-XE105UD. This means your engineering team can upload, modify, and download programs using familiar tools, eliminating the need for retraining or new software licensing during the transition period.

Where the legacy system relied on external signal conditioning — such as signal isolators between thermocouple inputs and the OCS analog inputs, or relay output modules in the control cabinet — these components remain fully compatible and do not require replacement. The HE-XE105UD’s analog input specifications are consistent with standard 4–20 mA and 0–10 V industrial signal ranges, preserving compatibility with existing field transmitters and sensors.

For sites that previously operated a standalone HMI panel alongside a separate PLC rack — a common configuration in older HVAC and water treatment installations — the HE-XE105UD’s all-in-one architecture consolidates both functions into a single panel-mount unit, reducing cabinet space requirements and eliminating the communication link between a separate HMI and PLC. This consolidation also simplifies spare parts management, as only one unit type needs to be stocked for both display and control functions.

If your upgrade project also involves replacing aging Horner APG XL4 or XL6 series units elsewhere in the same facility, the HE-XE105UD shares the same Cscape programming environment, allowing a unified software platform across multiple machine lines or process areas. This consistency reduces commissioning time and simplifies long-term maintenance for your automation team.

Retrofit Guidance FAQ

Q: Can I reuse my existing Cscape program from the legacy XL Series OCS?
A: In most cases, yes. Cscape project files are forward-compatible within the XL Series platform. After uploading your existing program to the HE-XE105UD, review the I/O mapping and communication port assignments to confirm they match the new unit’s hardware configuration. Minor tag remapping may be required if the legacy unit had a different I/O count or port layout.

Q: Do I need to rewire the control cabinet?
A: The HE-XE105UD uses the same XL Series panel cutout dimensions and standard terminal wiring conventions. In most direct replacement scenarios, existing field wiring can be reconnected to the new unit without modification. Verify power supply polarity and I/O terminal assignments against the HE-XE105UD wiring diagram before energizing.

Q: Is the CAN bus I/O network compatible with my existing SmartStix modules?
A: Yes. The HE-XE105UD’s CAN port is compatible with Horner APG SmartStix I/O expansion modules. Existing CAN network wiring, termination resistors, and node addresses can typically be retained without changes.

Q: What communication protocols does the HE-XE105UD support for third-party device integration?
A: The unit supports Modbus RTU (RS-232/RS-485), Modbus TCP (Ethernet), CAN, and USB. This covers the majority of field devices encountered in legacy PLC and DCS migration projects, including VFDs, smart sensors, remote I/O, and SCADA gateways.

Q: How much physical space does the HE-XE105UD require in the control cabinet?
A: The HE-XE105UD is designed to fit the standard XL Series panel cutout. If replacing a same-series unit, no cabinet modification is required. If replacing a multi-component system (separate HMI + PLC rack), the all-in-one form factor will typically reduce the required panel area.

Q: What is the lead time and shipping arrangement?
A: Units are stocked in Xiamen and ship within 1–3 business days of order confirmation. International express delivery (DHL, FedEx, UPS) is available. Each unit undergoes pre-shipment functional testing before dispatch.
