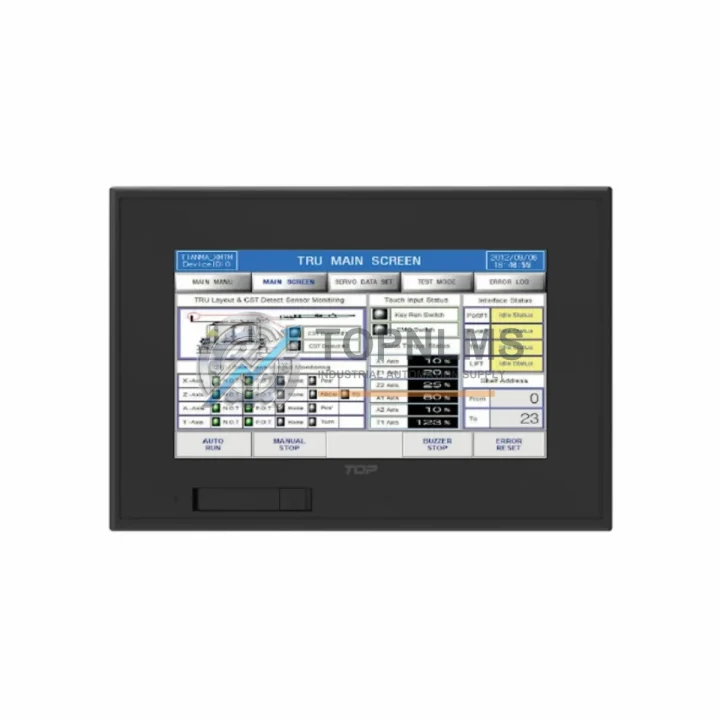

Honeywell TOPRE0700WD Replacement/Upgrade for TOPRE Series: Seamless Transition from Legacy HMI Systems

When your existing Honeywell TOPRE0700WD 7″ widescreen HMI panel reaches end-of-life or becomes difficult to source, a controlled migration strategy is essential to maintaining production continuity. This replacement and upgrade solution is engineered specifically for facilities running legacy Honeywell TOPRE Series operator panels integrated into PLC-based or DCS-based control architectures. Whether you are managing a single machine retrofit or a plant-wide modernization program, the TOPRE0700WD offers a direct-fit upgrade path that minimizes rewiring effort, preserves existing communication protocols, and fits within the original control cabinet cutout dimensions.

The TOPRE0700WD features a 7-inch widescreen TFT display with high-resolution touch input, making it a functional and visual upgrade over earlier TOPRE Series panels such as the TOPRE0570WD and TOPRE0430WD. Its support for Modbus RTU, Modbus TCP/IP, and Ethernet-based communication protocols ensures compatibility with a broad range of existing PLCs and DCS controllers without requiring protocol converters or gateway devices. Engineers migrating from older Honeywell HC900 controllers, Experion PKS nodes, or third-party Siemens S7-300 and Allen-Bradley MicroLogix installations will find the TOPRE0700WD’s multi-driver communication stack particularly valuable during phased migration projects.

From a wiring perspective, the TOPRE0700WD maintains the same power supply input range (24 VDC) as its predecessors, eliminating the need to modify existing panel power distribution. The rear-panel connector layout is compatible with standard DIN rail terminal blocks and Phoenix Contact-style wiring harnesses already present in most TOPRE Series installations. This means field technicians can complete a panel swap in a planned maintenance window without extensive rewiring or cabinet modification.

For facilities where the original TOPRE0700WD was connected to remote I/O modules — such as Honeywell’s own distributed I/O racks or third-party Wago 750 Series I/O nodes — the replacement unit supports the same polling architecture over RS-485 and Ethernet, preserving the existing field device topology. Signal isolators and surge protection modules already installed in the cabinet remain fully compatible and do not require replacement during the HMI swap.

Programming migration is straightforward. Projects developed in Honeywell’s TOPRE configuration software can be exported and re-imported into the replacement unit with minimal screen layout adjustment. Tag databases, alarm configurations, trend displays, and recipe management screens transfer cleanly, reducing engineering hours during commissioning. For sites that have already standardized on Ethernet-based SCADA connectivity — for example, using Wonderware InTouch or Ignition SCADA platforms — the TOPRE0700WD’s built-in Ethernet port supports OPC-UA and Modbus TCP polling without additional middleware.

Physical installation dimensions match the standard TOPRE Series panel cutout (approximately 192 mm × 138 mm), so no cabinet door modification is required. The unit mounts using the same four-point clamp system as earlier TOPRE models, and the front bezel IP65 rating is maintained, ensuring continued compliance with washdown and dust-exclusion requirements in food processing, pharmaceutical, and chemical plant environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TOPRE0700WD migration rarely involves the HMI panel alone. In most retrofit projects, the upgrade is coordinated alongside related control system components to ensure system-wide compatibility. During the transition from a legacy TOPRE0570WD or TOPRE0430WD installation, engineers commonly address the communication backbone first — replacing aging RS-485 communication cables and verifying that existing Honeywell HC900 Hybrid Controllers or third-party Siemens S7-200 PLCs are correctly addressed in the new HMI project file.

Where the original system used a dedicated programming cable (such as a USB-to-RS232 adapter or a proprietary Honeywell configuration cable) to upload HMI projects, the TOPRE0700WD supports direct Ethernet download, eliminating the need for legacy programming cables in most cases. For sites still using RS-485 multi-drop networks connecting multiple operator stations, the existing Wago 750-306 or Phoenix Contact FL SWITCH managed Ethernet switches can be retained without modification.

Power distribution within the control cabinet typically involves a 24 VDC DIN rail power supply module — units such as the Siemens SITOP PSU100S or Phoenix Contact QUINT-PS series are commonly found alongside TOPRE Series panels and remain fully compatible with the TOPRE0700WD’s power input requirements. Signal isolators, such as the Phoenix Contact MCR-SL series, installed between field sensors and PLC analog input modules do not require replacement during the HMI upgrade.

For facilities upgrading the broader control architecture simultaneously, the TOPRE0700WD integrates cleanly with Honeywell’s own ControlEdge PLC platform and with Allen-Bradley CompactLogix L-series controllers via Ethernet/IP, making it a practical choice for mixed-vendor environments. Remote I/O expansion racks — including Honeywell’s HC-TDIL16 digital input modules and HC-TDOL8 digital output modules — continue to operate transparently through the updated HMI communication configuration.

Retrofit Guidance FAQ

Q: Can the TOPRE0700WD reuse existing RS-485 wiring from the TOPRE0570WD installation?
A: Yes. The RS-485 port on the TOPRE0700WD uses the same signal polarity and termination conventions as earlier TOPRE Series panels. Existing shielded twisted-pair cabling and termination resistors can be retained without modification in most installations.

Q: Is the HMI project file from the legacy TOPRE0570WD directly importable?
A: Project files created in the TOPRE configuration software are forward-compatible. Screen resolution differences between the 5.7″ and 7.0″ panels require a one-time layout rescaling step, but tag databases, alarm groups, and communication driver settings transfer without manual re-entry.

Q: Does the TOPRE0700WD support Modbus TCP communication to existing SCADA systems?
A: Yes. The built-in Ethernet port supports Modbus TCP client and server modes, enabling direct integration with Wonderware, Ignition, and other SCADA platforms without additional gateway hardware.

Q: Will the TOPRE0700WD fit the existing cabinet cutout?
A: The TOPRE0700WD requires a 192×138 mm panel cutout. If the existing cutout is smaller (as with TOPRE0430WD installations), a stainless steel adapter plate is available to bridge the dimensional difference without requiring cabinet door replacement.

Q: What communication protocols are supported for PLC connectivity?
A: The TOPRE0700WD supports Modbus RTU (RS-232/RS-485), Modbus TCP/IP, Ethernet/IP, and several third-party PLC drivers including Siemens S7 MPI/PPI and Mitsubishi FX/Q series, making it suitable for multi-vendor retrofit environments.

Warranty Assurance

Every Honeywell TOPRE0700WD unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional pre-shipment inspection covering power-on verification, display uniformity check, touch calibration, and communication port continuity testing. Units that do not pass inspection are not shipped.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit dispatch within 3 business days of fault confirmation, minimizing production downtime for your facility. Our after-sales response team is reachable via email and phone to support remote troubleshooting, configuration guidance, and warranty claim processing.

Stock is maintained in Xiamen, China, with express international shipping options available to minimize lead times for urgent replacement requirements. All units are shipped in anti-static packaging with individual serial number documentation to support your incoming inspection and asset management processes.

For procurement inquiries, bulk pricing, or technical pre-sales support, contact our team directly.
