Honeywell TC-FXX132 Original Industrial Spare HPM Compatible

Product Overview

Honeywell TC-FXX132 Original Industrial Spare HPM Compatible: System Stability and Maintenance Value

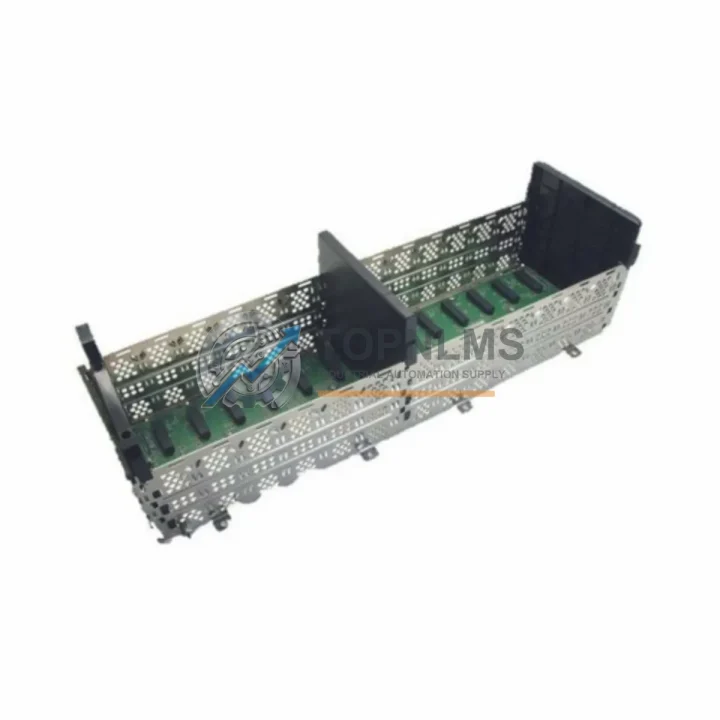

The Honeywell TC-FXX132 is a 13-slot High-Performance Manager (HPM) chassis designed for the TotalPlant Solution (TPS) Distributed Control System platform. As a foundational structural and backplane component, the TC-FXX132 provides the physical mounting, power distribution, and communication backbone for HPM I/O modules, processor cards, and redundancy modules within the TPS control architecture. Maintaining a verified original spare of this chassis is a critical element of any serious industrial maintenance and business continuity strategy.

In process industries — including refining, petrochemicals, power generation, pulp and paper, and pharmaceuticals — the TPS DCS platform has delivered decades of reliable process control. Many facilities continue to operate TPS-based systems well beyond their original design life, making access to original, tested spare parts like the TC-FXX132 chassis essential for sustaining uptime and avoiding costly system migrations.

Critical Technical Specs

Preventive Maintenance Strategy

When a TC-FXX132 chassis replacement is scheduled — whether during a planned turnaround, an emergency shutdown, or a proactive lifecycle refresh — experienced maintenance engineers know that the chassis itself is rarely the only component requiring attention. A thorough inspection of the surrounding HPM cabinet and associated control loop is essential to restoring full system integrity and preventing repeat failures.

During chassis replacement, it is standard practice to simultaneously inspect and, where necessary, replace the HPM processor module (such as the TC-FPCXX2 or TC-FPCXX4) seated in the chassis, as processor cards are subject to capacitor aging and firmware degradation over extended service periods. The HPM I/O link interface module and associated I/O modules — including analog input cards, analog output cards, and digital I/O modules — should be bench-tested or swapped with verified spares to rule out latent faults that may have contributed to the original failure event.

Power supply modules feeding the HPM chassis, such as the TC-FPSR22 or equivalent redundant power supply units, should be inspected for output voltage stability and capacitor health. A degraded power supply is a common root cause of intermittent chassis faults and unexplained module resets. Redundant power supply pairs should be replaced as a matched set to maintain symmetrical load sharing.

The communication infrastructure connecting the HPM to the TPS network — including the Local Control Network (LCN) interface cards and associated coaxial or fiber LCN cabling — should be verified for signal integrity. LCN interface modules are a frequent point of failure in aging TPS systems and are often overlooked during chassis-focused maintenance events. Similarly, the Universal Control Network (UCN) drop cables and terminators connecting field I/O to the HPM should be inspected for insulation degradation and connector corrosion.

Terminal blocks and field wiring marshalling panels connected to the HPM I/O should be inspected for loose terminations, corrosion, and insulation breakdown — particularly in high-humidity or chemically aggressive environments. Signal isolators and barriers protecting analog input channels from field-side transients are consumable items that benefit from periodic replacement on a defined maintenance interval rather than a run-to-failure basis.

For facilities managing multiple HPM cabinets, a structured spare parts inventory that includes at minimum one TC-FXX132 chassis, one set of HPM processor cards, one redundant power supply pair, and a selection of the most-used I/O module types provides a defensible baseline against unplanned downtime. Procurement of these items as a coordinated spare kit — rather than reactive emergency purchasing — significantly reduces mean time to repair (MTTR) and eliminates the risk of extended outages caused by parts availability delays.

Strategic Replacement Solutions

The TC-FXX132 is a direct original replacement for the 13-slot HPM chassis within the TotalPlant Solution DCS architecture. Unlike third-party or refurbished alternatives, an original Honeywell TC-FXX132 chassis ensures full backplane pin compatibility, correct power rail specifications, and validated mechanical tolerances for all HPM module form factors. This eliminates the risk of subtle incompatibilities that can cause intermittent faults, communication errors, or module seating issues — problems that are notoriously difficult to diagnose in a live process environment.

For facilities operating aging TPS systems where Honeywell factory support has been reduced or discontinued, maintaining a stock of original chassis and associated HPM components is the most cost-effective strategy for extending system life without undertaking a full DCS migration. A single unplanned shutdown in a continuous process facility can generate losses that far exceed the cost of a comprehensive spare parts inventory. The TC-FXX132, combined with a structured HPM spare parts program, provides a proven path to system longevity, reduced maintenance risk, and predictable operational costs.

All TC-FXX132 units supplied by TOPNLMS are sourced as original Honeywell components, individually tested for electrical continuity and mechanical integrity prior to shipment, and covered by a 12-month warranty against defects in materials and workmanship.

Support FAQ

Q: Is the TC-FXX132 compatible with all HPM module types used in TotalPlant Solution DCS?
A: The TC-FXX132 13-slot chassis is designed for the Honeywell HPM platform within the TPS DCS architecture and is compatible with the standard range of HPM I/O modules, processor cards, and redundancy modules. For specific module compatibility verification, please contact our technical team with your existing module part numbers prior to ordering.

Q: How is the TC-FXX132 tested before shipment?
A: Each unit undergoes electrical continuity testing of backplane connectors and power rails, mechanical inspection of slot guides and mounting hardware, and visual inspection for corrosion, physical damage, and component integrity. A test report is available upon request.

Q: What is the warranty coverage and what does it include?
A: The TC-FXX132 is covered by a 12-month warranty from the date of shipment. The warranty covers defects in materials and workmanship under normal industrial operating conditions. It does not cover damage resulting from improper installation, electrical overstress, or environmental conditions outside the specified operating range.

Q: Can I order the TC-FXX132 as part of a broader HPM spare parts kit?
A: Yes. TOPNLMS supports consolidated spare parts procurement for TPS/HPM systems. We can assist with sourcing complementary components including HPM processor modules, power supply units, I/O modules, and LCN interface cards as part of a coordinated maintenance inventory plan. Contact us to discuss your specific requirements.
