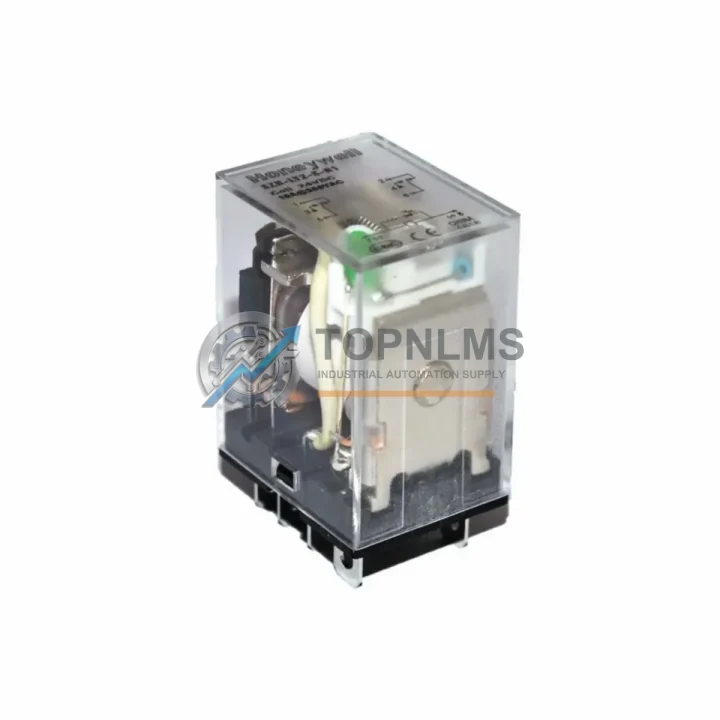

Honeywell SZR-LY2-N1 100VAC Original Industrial Spare SZR

Product Overview

Honeywell SZR-LY2-N1 100VAC Original Industrial Spare SZR: System Stability and Industrial Spare Parts Maintenance Value

In modern industrial automation environments, the reliability of every component in a control cabinet directly determines the stability of the entire production line. The Honeywell SZR-LY2-N1 100VAC is a DPDT (Double Pole Double Throw) general purpose relay from Honeywell’s proven SZR Series, widely deployed in PLC-driven control panels, DCS auxiliary relay circuits, motor starter interlocks, and signal switching applications across manufacturing, process control, and building automation sectors.

Sourcing an original, tested spare of the SZR-LY2-N1 100VAC before a failure occurs is one of the most cost-effective decisions a maintenance engineer can make. Unplanned downtime caused by a failed relay can cascade into conveyor stoppages, process upsets, or safety interlock faults — all of which carry costs far exceeding the price of a stocked spare. With a 12-month warranty and pre-shipment electrical testing, this unit ships ready for immediate installation.

Critical Technical Specs

Preventive Maintenance Strategy

A relay failure rarely occurs in isolation. In a well-maintained control cabinet, the SZR-LY2-N1 100VAC typically operates alongside a broader ecosystem of components that share the same electrical environment, thermal load, and operational duty cycle. When scheduling a relay replacement or conducting a planned shutdown inspection, experienced maintenance teams use the opportunity to audit adjacent components that may be approaching end-of-life.

Begin with the relay socket — the SZS-04 or PYF08A-compatible socket should be inspected for contact oxidation, terminal looseness, and heat discoloration. A degraded socket can cause intermittent contact resistance even with a new relay installed. Next, check the DIN rail terminal blocks in the same circuit loop; loose or corroded terminals are a leading cause of unexplained signal faults in relay-driven I/O circuits.

The 24VDC or 100VAC power supply module feeding the relay coil circuit deserves attention during any relay swap. Voltage ripple or sag from an aging power supply can cause relay chatter or premature coil burnout — replacing the relay without addressing a marginal power supply simply defers the next failure. Similarly, the fuse module or circuit protection device upstream of the relay panel should be tested; a fuse that has experienced repeated overcurrent events may have degraded interrupting capacity.

For systems where the SZR-LY2-N1 drives a PLC digital output circuit, inspect the corresponding PLC output module (such as a Honeywell or third-party DO module) for signs of output transistor degradation or blown output channels. In DCS environments, the signal isolator or signal conditioner in the same loop should be verified for drift. If the relay is part of a motor starter or contactor interlock circuit, the auxiliary contacts on the contactor and the overload relay should be tested for proper operation and contact wear.

Communication integrity in the broader control system also warrants a check: RS-485 or PROFIBUS communication modules in the same panel can be affected by electrical noise generated during relay switching. Ferrite cores, proper cable shielding, and grounding continuity should be verified. Finally, if the control cabinet houses an HMI or operator panel, confirm that alarm acknowledgment and status display functions tied to the relay circuit are operating correctly after the replacement.

Stocking a small buffer of SZR-LY2-N1 100VAC units — typically 2 to 5 pieces depending on the number of installed units — is a standard practice in facilities with continuous production requirements. The compact form factor and long shelf life of sealed relays make them ideal for on-site spare parts inventory.

Strategic Replacement Solutions

The Honeywell SZR-LY2-N1 100VAC is a direct, pin-compatible replacement for any existing SZR-LY2-N1 100VAC unit installed in a compatible SZR Series socket. No wiring modifications, no socket changes, and no PLC program edits are required — the replacement is a true drop-in substitution that restores original system functionality within minutes of installation.

For facilities managing aging control systems originally commissioned with Honeywell SZR Series relays, maintaining access to original-specification spare parts is critical to avoiding costly system redesigns. Substituting with non-original or cross-brand relays introduces risks including dimensional incompatibility with existing sockets, coil impedance mismatches that affect PLC output loading calculations, and contact rating differences that may not be immediately apparent but can reduce service life under actual load conditions.

By sourcing original SZR-LY2-N1 100VAC units, maintenance teams preserve the original system’s safety certification baseline, simplify documentation for audits and insurance purposes, and ensure that the replacement part performs identically to the unit it replaces — a key requirement in regulated industries such as pharmaceuticals, food processing, and energy generation.

For facilities planning a phased modernization, stocking original spares for the current installed base while evaluating next-generation control architectures is the most operationally sound approach. It eliminates emergency procurement pressure, allows maintenance to proceed on schedule, and protects production continuity during the transition period.

Support FAQ

Q1: Is this an original Honeywell SZR-LY2-N1 100VAC or a compatible substitute?
This is an original Honeywell SZR-LY2-N1 100VAC spare part, not a third-party compatible or counterfeit substitute. Each unit is sourced from authorized supply channels and undergoes pre-shipment electrical testing including coil continuity, contact resistance measurement, and insulation resistance verification before dispatch.

Q2: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and electrical performance failures under normal operating conditions. Units that fail within the warranty period are eligible for replacement or refund subject to inspection. The warranty does not cover damage resulting from incorrect installation, overvoltage, or operation outside specified ratings.

Q3: How do I verify compatibility with my existing socket before ordering?
The SZR-LY2-N1 100VAC is designed for use with Honeywell SZR Series sockets, including the SZS-04 and PYF08A-compatible types. Verify the socket model number printed on the existing socket body or refer to the original panel wiring diagram. If the existing relay is an SZR-LY2-N1 100VAC, the replacement unit is a direct pin-for-pin substitute requiring no socket modification.

Q4: What is the typical lead time and how is the unit packaged for shipment?
In-stock units are dispatched within 1–3 business days of order confirmation. Each relay is individually packaged in anti-static protective packaging with original labeling intact. International shipments are accompanied by a commercial invoice and packing list. Expedited shipping options are available for urgent maintenance requirements — contact us directly to arrange priority dispatch.
