Honeywell SPS5785 51198651-100 Replacement for Experion PKS

Product Overview

Honeywell SPS5785 51198651-100 Replacement for Experion PKS: Smooth Transition from Legacy TDC 3000 Systems

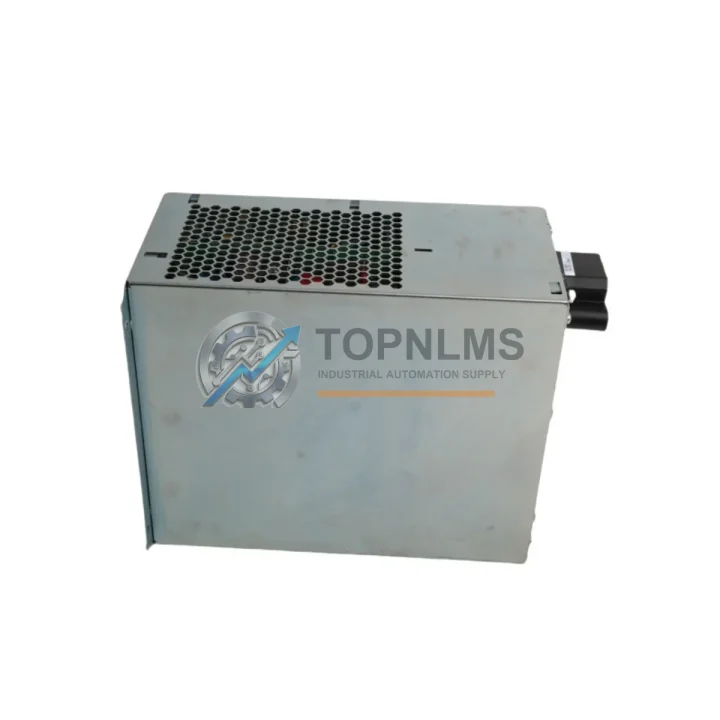

The Honeywell SPS5785 (part number 51198651-100) is a dual-rail DC power supply module engineered for the Honeywell Experion PKS and TDC 3000 distributed control system platforms. As aging plant infrastructure reaches end-of-life and Honeywell progressively phases out legacy DCS hardware, facilities running TDC 3000 High-Performance Process Manager (HPM) controllers, Experion C300 process controllers, and associated I/O subsystems face increasing pressure to source reliable, wiring-compatible replacement power supply modules that maintain system stability without triggering a full-scale migration or unplanned shutdown.

This listing provides a verified, tested SPS5785 / 51198651-100 power supply module ready for immediate drop-in replacement or planned upgrade deployment. Whether your site is executing a phased migration from TDC 3000 to Experion PKS, or simply replacing a failed unit to restore uptime, this module is sourced, inspected, and shipped from our Xiamen warehouse with full traceability documentation and a 12-month warranty from the date of shipment.

The SPS5785 delivers conditioned +5 VDC and +24 VDC dual-rail output to the Honeywell HPM and LCN card cage backplane. Its universal AC input range (85–264 VAC, 47–63 Hz) eliminates the fixed-tap voltage selection required on older SPS5782 and SPS5783 variants, making it the preferred replacement across multi-voltage plant environments. The standard Honeywell edge connector mates directly with the existing card cage backplane — no rewiring, no terminal block modification, and no jumper changes are required for a like-for-like replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A power supply replacement rarely occurs in isolation. In most Honeywell TDC 3000 and Experion PKS upgrade projects, the SPS5785 is replaced alongside a broader set of interdependent components that share the same card cage, control cabinet, or system architecture. Understanding these co-replacement relationships helps procurement and engineering teams plan a single consolidated maintenance window, minimizing total plant downtime and reducing the number of separate vendor engagements.

The High-Performance Process Manager (HPM) controller module is the most common co-replacement item. The HPM shares the same card cage as the SPS5785 and depends directly on its dual-rail power output for stable operation. In sites where the HPM is approaching end-of-life or has already been flagged as a long-lead-time spare, coordinating the HPM and SPS5785 replacement in a single outage window is standard practice. Similarly, the Local Control Network (LCN) interface cards — which manage communication between the HPM and the Honeywell Universal Station (US) operator consoles — are frequently refreshed during the same maintenance cycle, particularly when migrating from the legacy LCN coaxial topology to a Fault Tolerant Ethernet (FTE) backbone.

On the I/O side, Series C I/O Link Interface Modules (ILI) and associated HLAI (High-Level Analog Input) and LLAI (Low-Level Analog Input) modules are often replaced during the same outage. These modules connect to field instruments via marshalling cabinets and terminal assemblies, and their aggregate 24 VDC power draw must be validated against the replacement SPS5785 output current rating before commissioning. For sites integrating HART-enabled field devices, HART Multiplexer modules installed in the same cabinet draw from the same 24 VDC rail — a full load budget calculation is a mandatory pre-commissioning step.

When the migration scope extends to the Experion PKS platform, the Experion C300 Controller is typically installed in the same control room upgrade cycle. The C300 operates on the FTE network and requires updated Series C I/O modules and associated I/O Link cables. In hybrid TDC 3000 / Experion PKS environments — where both platforms coexist during a phased migration — the UCN (Universal Control Network) interface modules that bridge the HPM to field devices over the UCN coaxial network may also require hardware revision updates to maintain compatibility with the modernized power rail delivered by the SPS5785.

For control cabinet space planning, the Redundant Power Supply (RPS) module — where a second SPS5785 operates in hot-standby — should be evaluated for matching revision levels to ensure proper load-sharing behavior. Mismatched revisions between the primary and standby SPS5785 units can cause intermittent load-sharing faults that are difficult to diagnose under normal operating conditions. Procuring both units from the same source and verifying matching suffix revisions is strongly recommended. Additionally, the Honeywell FTE switch modules and associated fiber patch panels, while not directly powered by the SPS5785, are commonly included in the same purchase order to consolidate shipping logistics and vendor documentation.

For sites requiring programming cable access during commissioning, the Honeywell Control Builder engineering workstation software and associated USB-to-serial programming cables for legacy HPM configuration are typically staged alongside the hardware replacement to enable immediate post-installation functional testing without waiting for separate tool procurement.

Retrofit Guidance FAQ

Q: Can I replace the SPS5785 without shutting down the entire DCS system?
A: In systems configured with redundant power supplies (dual SPS5785 in the same cage), hot-swap replacement is supported — the standby unit maintains power to the card cage while the failed unit is removed and replaced. In single-PSU configurations, a controlled shutdown of the affected HPM or LCN node is required before replacement. Always verify the redundancy configuration in your cabinet layout drawing before scheduling the maintenance window.

Q: Does the 51198651-100 suffix revision affect compatibility with my existing cage?
A: The -100 suffix denotes the standard production revision. It is directly compatible with all standard Honeywell HPM and LCN card cages. If your existing unit carries a -200 suffix, verify the output current rating — the -100 and -200 variants share the same form factor and edge connector but may differ in peak load capacity. Contact us with your cabinet drawing reference if you need confirmation before ordering.

Q: Is any rewiring required when replacing the SPS5785?
A: No field wiring changes are required. The SPS5785 uses a standard Honeywell edge connector that mates directly with the card cage backplane. No terminal block rewiring, no cable modification, and no jumper changes are needed for a like-for-like replacement. This is one of the key advantages of the SPS5785 over third-party power supply alternatives that may require adapter brackets or wiring harness modifications.

Q: Will this module work with both TDC 3000 and Experion PKS platforms?
A: Yes. The SPS5785 / 51198651-100 is compatible with both the legacy TDC 3000 architecture and the current Experion PKS platform, making it suitable for sites in mid-migration that operate hybrid system configurations where both platforms coexist in the same control room.

Q: What communication protocols does this module support?
A: As a power supply module, the SPS5785 does not implement a communication protocol. It provides conditioned DC power to the card cage backplane. Protocol-level compatibility — including LCN, FTE, UCN, and HART — is managed by the controller and I/O modules powered by this unit. No protocol configuration is required during installation.

Q: How do I verify the physical installation space before ordering?
A: The SPS5785 occupies a single standard slot in the Honeywell HPM or LCN card cage. Confirm the slot designation in your cabinet layout drawing — typically labeled PSU-A or PSU-B in redundant configurations. No additional mounting hardware, DIN rail adapter, or cabinet modification is required. The module dimensions are identical to the SPS5782 and SPS5783 it replaces.

Q: What documentation is available for customs and procurement?
A: TOPNLMS provides a commercial invoice, packing list, and test report for every shipment. HS code declaration is included on the commercial invoice. For procurement teams requiring additional documentation — such as a certificate of conformance or material safety data — contact us at [email protected] before placing your order.

Warranty Assurance

Every SPS5785 / 51198651-100 unit shipped from TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each module undergoes a functional power-on test and visual inspection to verify output voltage rails (+5 VDC and +24 VDC), edge connector integrity, and absence of physical damage or component degradation. Units that do not pass inspection are not listed for sale and are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are shipped from our Xiamen warehouse via DHL Express or FedEx International Priority, with tracking provided at time of dispatch. No return-to-origin is required for initial warranty assessment — a functional test report and photographs are sufficient for most claims.

For procurement teams requiring documentation, we provide a test report, packing list, and commercial invoice with HS code declaration upon request. All units are shipped in anti-static packaging with foam cushioning suitable for air freight. Bulk orders of 3 or more units qualify for consolidated shipping and extended payment terms — contact us directly to discuss volume pricing and lead time commitments.

TOPNLMS maintains dedicated stock of Honeywell DCS spare parts with a focus on hard-to-source, long-lead-time components for Experion PKS and TDC 3000 systems. Inventory is updated weekly, and availability is confirmed before every order is accepted. We do not list items we cannot ship within the stated lead time.
