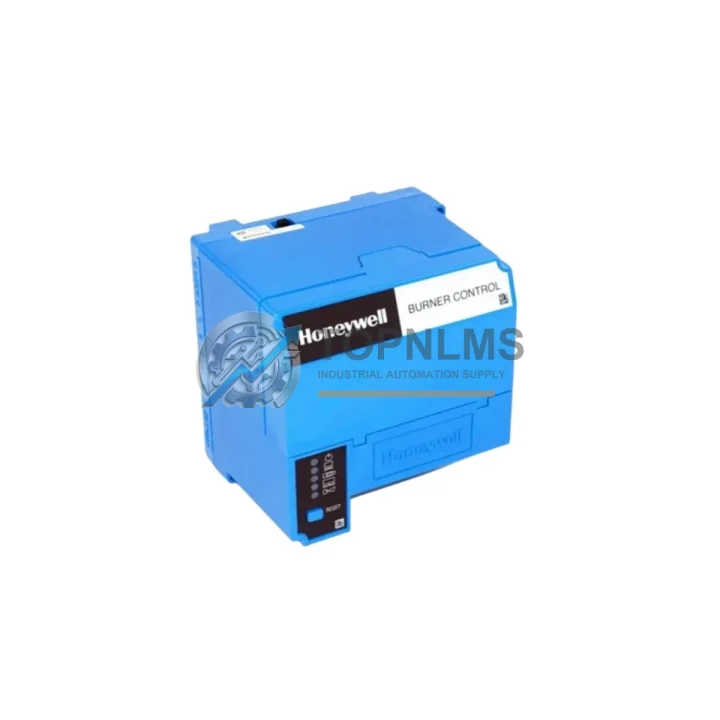

Honeywell RM7830A1003 Original Industrial Spare RM7830 Compatible

Product Overview

Honeywell RM7830A1003 Original Industrial Spare RM7830 Compatible: Ensuring Combustion System Stability in Critical Industrial Environments

In industrial facilities where continuous combustion processes underpin production uptime — from petrochemical plants and power generation stations to food processing lines and district heating systems — the reliability of the burner management system is non-negotiable. The Honeywell RM7830A1003 is a proven, original flame safeguard primary control from the RM7830 Series, engineered to provide precise, fail-safe supervision of industrial burner ignition sequences, flame detection, and safety shutdown. Sourced as a genuine original spare, this unit is the benchmark replacement for aging RM7830 Series installations, delivering the same certified performance as the factory-fitted component without requiring system redesign or rewiring.

When a flame safeguard primary control fails — or shows early signs of degradation such as nuisance lockouts, erratic flame signal readings, or delayed ignition response — every minute of unplanned downtime translates directly into production loss and safety risk. Stocking the RM7830A1003 as a pre-qualified spare eliminates the lead time uncertainty that can extend a burner outage from hours into days. Our units are individually tested prior to dispatch, supplied with full documentation, and backed by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to act decisively when a replacement is needed.

Critical Technical Specs

Preventive Maintenance Strategy

A flame safeguard primary control does not operate in isolation. The RM7830A1003 sits at the heart of a combustion control loop that depends on the integrity of every upstream and downstream component. During scheduled burner inspections or unplanned outage repairs, maintenance teams should treat the replacement of the RM7830A1003 as the trigger for a comprehensive system audit — not a standalone swap.

Begin with the flame detector and amplifier module. The RM7830 Series is designed to work with Honeywell’s R7847, R7848, and R7849 amplifier modules; a degraded amplifier can produce intermittent flame signal errors that mimic primary control failure. Inspect and test the amplifier in parallel with the primary control replacement. Next, verify the condition of the ignition transformer — worn electrode gaps or cracked porcelain insulators are a common root cause of ignition trial failures that place repeated stress on the primary control’s lockout circuitry.

The wiring base (typically the Q7800A or Q7800B series) should be inspected for terminal corrosion, loose connections, and heat discoloration. A compromised wiring base can introduce intermittent faults that are difficult to diagnose and may damage a newly installed primary control. While the control cabinet is open, check the burner control panel terminal blocks — loose or oxidized terminals in the safety interlock circuit are a frequent source of nuisance shutdowns in aging installations.

For facilities running Honeywell’s broader combustion management ecosystem, this is also the right moment to verify the status of the RM7800 Series display module (S7800A), which provides fault code readout and diagnostic history. A functioning display module dramatically reduces fault diagnosis time during future incidents. If the installation includes a Honeywell DCS or BMS integration — such as via Modbus or BACnet communication modules — confirm that the communication interface card is seated correctly and that the primary control’s status outputs are correctly mapped.

Procurement teams supporting multi-burner facilities should consider maintaining parallel stock of the RM7840L1018 and RM7890A1014 — adjacent RM7800 Series primary controls used in higher-capacity or dual-fuel burner configurations — alongside the RM7830A1003. Consolidating these spares under a single procurement cycle reduces per-unit logistics cost and ensures cross-trained technicians can service multiple burner types from the same spare parts cabinet. Additionally, stocking C7027A UV flame detectors and C7035A infrared detectors as consumable spares ensures that flame sensing capability is never the bottleneck in a burner restart sequence.

Strategic Replacement Solutions

The RM7830A1003 is a direct plug-in replacement for earlier RM7830 Series variants installed on Q7800 Series wiring bases. No rewiring is required when replacing a like-for-like RM7830 unit, making field replacement a straightforward task that a qualified burner technician can complete within a planned maintenance window — or, in an emergency, within a single shift. This plug-in architecture is a deliberate design feature of the RM7800 platform, intended to minimize the skill barrier and time cost of primary control replacement in the field.

For facilities still operating older Honeywell R4140 or R7140 series primary controls, the RM7830A1003 — installed on a new Q7800 wiring base — represents a validated upgrade path that brings legacy burner systems into compliance with current flame safeguard standards without requiring full burner skid replacement. This approach extends the operational life of existing combustion equipment by a decade or more, delivering significant capital expenditure savings compared to full system replacement.

When evaluating replacement timing, maintenance planners should factor in the RM7830A1003’s role in the overall safety instrumented system (SIS). Primary controls that have accumulated more than 50,000 operating hours, or that have experienced more than 10 manual lockout resets in a 12-month period, should be scheduled for proactive replacement regardless of apparent functionality. Proactive replacement during a planned shutdown is always less costly than reactive replacement during an unplanned outage.

All units supplied by TOPNLMS are tested for basic electrical continuity and functional response prior to dispatch. Each unit ships with a test report and is packaged to IEC transit protection standards to prevent ESD and mechanical damage during shipping.

Support FAQ

Q1: Is the RM7830A1003 a direct drop-in replacement for other RM7830 variants?
Yes. The RM7830A1003 is plug-in compatible with all Q7800 Series wiring bases used by the RM7830 family. Verify your existing wiring base model before installation; no rewiring is required for like-for-like replacement. If upgrading from an older R4140 or R7140 series control, a new Q7800 wiring base is required.

Q2: What pre-shipment testing is performed on each unit?
Each RM7830A1003 unit undergoes electrical continuity testing and functional verification of key safety outputs prior to dispatch. A test record accompanies each shipment. Units are packaged in anti-static, impact-resistant packaging to ensure they arrive in field-ready condition.

Q3: How should I manage RM7830A1003 inventory for a multi-burner facility?
For facilities operating three or more RM7830-based burners, we recommend maintaining a minimum of one spare primary control per five installed units, with a reorder trigger set at 50% of minimum stock. Pairing this with stocked amplifier modules (R7847/R7848) and UV detectors (C7027A) ensures a complete burner restart kit is always available on-site.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental parameters. Warranty claims are processed with a replacement unit dispatched upon receipt and inspection of the returned item.
