Honeywell MU-TLPA02 51304467-100 Replacement for Experion PKS

Product Overview

Honeywell MU-TLPA02 51304467-100 Replacement for Experion PKS Series C: Seamless Transition & Compatibility Upgrade

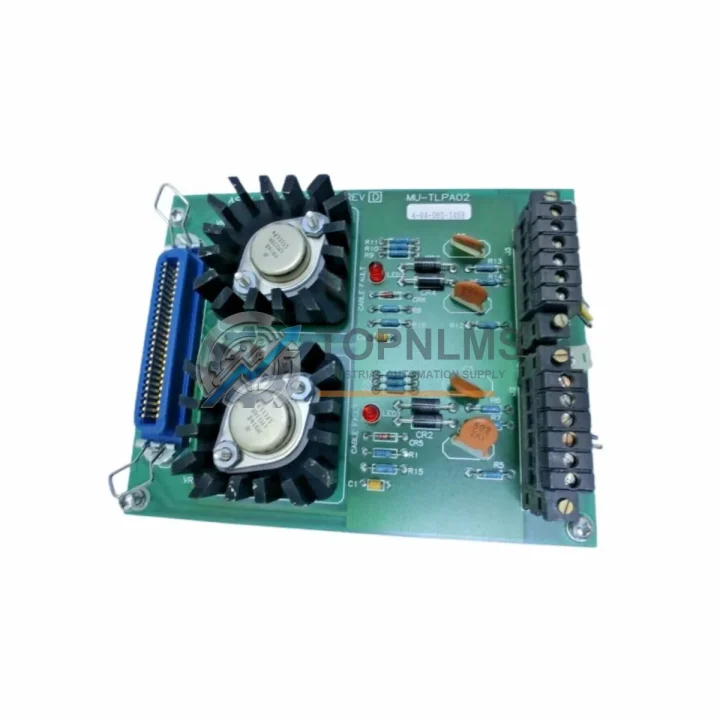

The Honeywell MU-TLPA02 (Part No. 51304467-100) is a Power Adapter Board designed for the Experion PKS (Process Knowledge System) Series C distributed control architecture. As legacy Experion PKS Series C installations age and OEM support windows narrow, plant engineers and procurement teams are increasingly sourcing verified replacement units to maintain system uptime without committing to a full platform migration. TOPNLMS supplies tested MU-TLPA02 boards with a 12-month warranty, enabling a smooth, low-risk transition from end-of-life or damaged units back to full operational status.

The MU-TLPA02 serves as the power interface between the Experion PKS C-Series controller chassis and its associated I/O subsystem. It conditions and distributes regulated DC power to downstream modules, ensuring stable voltage rails for the C200 or C300 controller nodes and their connected I/O link segments. When this board fails or becomes unavailable, the entire controller node — including associated I/O modules, communication links, and field device interfaces — can go offline, making rapid replacement critical for continuous process operations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MU-TLPA02 replacement rarely occurs in isolation. In most Experion PKS Series C retrofit projects, the power adapter board is one component within a broader system restoration or upgrade scope. During the replacement process, engineers typically audit adjacent components to confirm system integrity before returning the node to service.

The C200 or C300 controller module itself is the first item to verify — if the MU-TLPA02 failed due to an upstream power surge, the controller’s internal power circuitry may also require inspection or replacement. Similarly, the FIM4 or FIM8 Field Interface Modules connected downstream of the power adapter board should be checked for residual damage, as these modules bridge the controller to field-level I/O marshalling panels.

On the I/O side, the MC-TAIH02 and MC-TAIX02 analog input terminal assemblies are commonly co-located in the same control cabinet as the MU-TLPA02 and share the same 24 VDC supply rail. If the power adapter board experienced a hard failure, these terminal assemblies should be tested before recommissioning. Likewise, the MC-TDID12 digital input module and MC-TDOD13 digital output module — both standard components in Experion PKS Series C I/O racks — should be verified for correct operation after power is restored.

For sites running Fault Tolerant Ethernet (FTE) as the primary control network backbone, the ENET-2 or CC-PCNT01 communication modules installed in the same chassis should be inspected to confirm that the FTE link remains intact after the board swap. Communication continuity is critical in redundant controller configurations where the secondary C300 node must maintain synchronization with the primary during the replacement window.

In control cabinets where the MU-TLPA02 is mounted alongside a PM-IOLM01 power module or a redundant power supply chassis, the power sequencing and load-sharing configuration should be re-validated after installation. Some sites also use signal isolators between the Experion PKS I/O and legacy field instruments — these isolators, often DIN-rail mounted in the same cabinet, should be confirmed operational as part of the post-replacement checkout procedure.

For engineers managing the programming side of the migration, Honeywell Control Builder M or the Experion PKS Engineering Tools suite is used to re-download controller configurations and verify I/O channel assignments after the board is replaced. No hardware-level programming changes are required for a like-for-like MU-TLPA02 swap, but a full I/O checkout and loop test is recommended before returning the process unit to automatic control.

Retrofit Guidance FAQ

Q: Does replacing the MU-TLPA02 require rewiring field cables?
A: No. The MU-TLPA02 is an internal chassis power adapter board. Field wiring terminates at the terminal assemblies (e.g., MC-TAIH02, MC-TAIX02) and is not affected by the board replacement. No field cable disconnection is required.

Q: Is the MU-TLPA02 (51304467-100) compatible with both C200 and C300 controller nodes?
A: Yes. The -100 revision of the MU-TLPA02 is compatible with both C200/C200E and C300 controller nodes within the Experion PKS Series C chassis. Verify the chassis revision label before installation to confirm slot compatibility.

Q: Can the board be replaced while the controller is online?
A: In redundant controller configurations, the MU-TLPA02 can typically be replaced with the primary controller in standby mode, minimizing process disruption. In simplex (non-redundant) configurations, a planned controller shutdown is required. Always follow site-specific safety procedures and Honeywell’s installation guidelines.

Q: Will existing controller programs and I/O configurations be retained after the swap?
A: Yes. Controller programs reside in the C200/C300 module’s non-volatile memory, not on the MU-TLPA02. A like-for-like board replacement does not affect stored configurations. A configuration download from the Experion PKS Engineering Tools is recommended as a precautionary step after replacement.

Q: What communication protocols are supported after replacement?
A: The MU-TLPA02 replacement does not alter the controller’s communication stack. Fault Tolerant Ethernet (FTE), HART pass-through via FIM modules, and Modbus/OPC-DA interfaces configured at the Experion PKS server level remain fully operational after the board swap.

Q: How do I verify the replacement board is functioning correctly?
A: After installation, confirm that the controller node’s status LEDs indicate normal operation (green RUN, no FAULT indication). Perform an I/O channel checkout using Control Builder M to verify all analog and digital channels are reading correctly. Check FTE link status in the Experion PKS Station to confirm network continuity.

Q: What if the physical installation space in the cabinet is constrained?
A: The MU-TLPA02 occupies a standard Experion PKS C-Series chassis slot and has the same physical footprint as the original board. No additional cabinet space is required for a direct replacement. If the chassis itself is being upgraded, consult the Experion PKS Series C Hardware Planning Guide for rack and cabinet space requirements.

Warranty Assurance

Every MU-TLPA02 (51304467-100) unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a functional verification process including power-on testing, visual inspection for component integrity, and connector condition assessment. Units that do not meet our quality standards are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with a target response time of 1–2 business days for claim acknowledgment. Replacement units are dispatched from our Xiamen warehouse, with express international shipping options available to minimize site downtime. Our after-sales team can be reached directly at [email protected] or +86 18359293191 to initiate a warranty claim or request technical support documentation.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. We support T/T bank transfer and other standard B2B payment terms. Bulk orders and standing purchase agreements for critical spare parts are accommodated — contact our sales team to discuss inventory reservation and lead time commitments.

Stock is maintained in Xiamen, China, with typical dispatch within 1–3 business days of order confirmation. Express courier options (DHL, FedEx, UPS) are available for urgent replacement requirements. Import documentation support, including HS code declaration and country of origin certification, is provided upon request.
