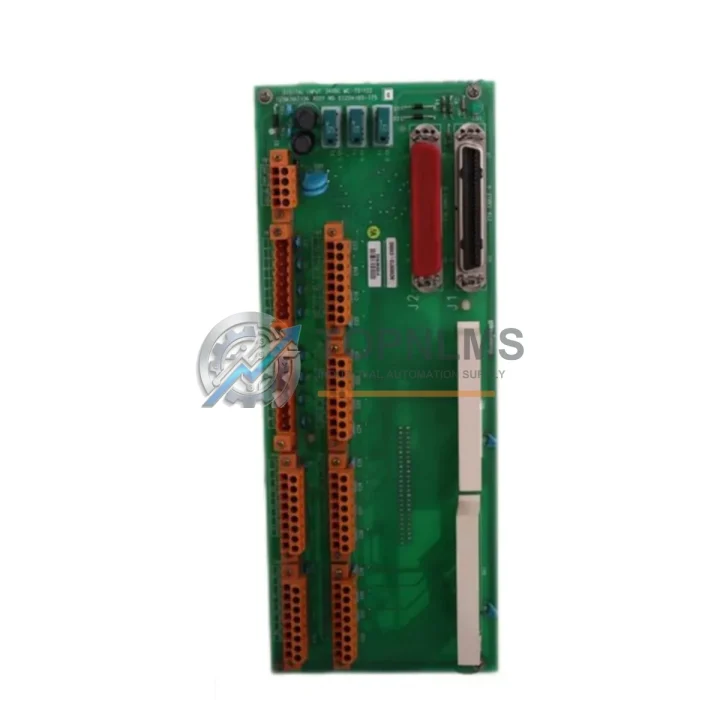

Honeywell MU-TDID12 51304441-125 Ruggedized Digital Input Termination Module: Industrial Resilience for Harsh Environments

The Honeywell MU-TDID12 (P/N 51304441-125) is a high-reliability digital input termination module engineered for the Experion PKS Distributed Control System platform. Designed to operate continuously in demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the signal integrity and field-side termination performance that mission-critical control architectures demand.

In modern DCS installations, the termination module serves as the critical interface between field instrumentation and the controller I/O subsystem. The MU-TDID12 provides a structured, noise-resistant termination point for up to 12 digital input channels, ensuring that discrete signals from limit switches, proximity sensors, valve position feedback, and safety interlock devices are accurately captured and transmitted to the Experion PKS C300 or C200 controllers without degradation. Its robust screw-terminal design and shielded signal paths make it particularly well-suited for environments with strong electromagnetic interference (EMI) from variable frequency drives (VFDs), large motor starters, and high-voltage switchgear commonly found in oil and gas, petrochemical, and power generation facilities.

Rugged Specifications Table

Comprehensive Protection Solutions

The MU-TDID12 does not operate in isolation — it is a foundational component within a broader Honeywell Experion PKS control architecture. In a typical process control cabinet, it works in close coordination with the Honeywell MU-TDOD16 digital output termination module, which handles discrete output signals to solenoid valves, motor contactors, and alarm annunciators. Together, these termination modules connect to the Honeywell CC-TDID11 digital input I/O module mounted on the ESMB backplane, forming a complete field-to-controller signal chain.

For analog process variables such as 4–20 mA temperature, pressure, and flow signals, the MU-TDID12 is typically deployed alongside the Honeywell MU-TAIH02 analog input termination module and the MU-TAIH04 variant for high-density installations. Power distribution within the control cabinet is managed by the Honeywell MC-PDOX02 power distribution module, which ensures stable, conditioned DC power to all I/O termination assemblies including the MU-TDID12.

In safety-instrumented system (SIS) applications, the MU-TDID12 is often installed in parallel with Honeywell FSC (Fail Safe Controller) safety I/O modules, providing a redundant digital input monitoring layer for emergency shutdown (ESD) logic. Communication between the Experion PKS server and field controllers is maintained through the Honeywell FTE (Fault Tolerant Ethernet) network infrastructure, with the CC-PCF901 FTE interface module ensuring deterministic, high-availability data exchange even under network fault conditions.

For installations requiring intrinsic safety barriers in Zone 1 or Zone 2 hazardous areas, the MU-TDID12 is paired with Honeywell SPS zener barrier assemblies or galvanic isolators to protect both field instruments and the DCS I/O subsystem from fault currents and voltage spikes originating in classified areas. This configuration is standard practice in offshore platforms, LNG terminals, and chemical processing plants where ATEX or IECEx compliance is mandatory.

Application in Critical Infrastructure

The Honeywell MU-TDID12 51304441-125 has established a proven track record across the most demanding sectors of global critical infrastructure:

Oil & Gas: On upstream production platforms and midstream pipeline compressor stations, the MU-TDID12 monitors wellhead valve position feedback, emergency shutdown (ESD) pushbutton inputs, and high-pressure trip signals. Its resistance to salt-laden marine atmospheres and wide operating temperature range make it a preferred choice for both offshore topsides and onshore desert installations.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the module interfaces with turbine protection systems, boiler drum level switches, and generator breaker status inputs. Its EMI shielding is critical in environments where large generators and transformers create significant electromagnetic noise floors.

Mining & Metallurgy: Continuous mining operations subject control hardware to constant mechanical vibration, coal dust ingress, and wide ambient temperature swings. The MU-TDID12’s robust construction ensures reliable digital input acquisition from conveyor belt safety switches, crusher overload contacts, and ventilation fan status signals throughout multi-year production cycles.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the MU-TDID12 to monitor pump run/fail status, valve open/closed confirmation, and chemical dosing interlock signals. High humidity and chemical vapors in these environments demand the module’s sealed terminal design and corrosion-resistant materials.

Petrochemical & Refining: In fluid catalytic cracking (FCC) units, distillation columns, and reactor control systems, the MU-TDID12 provides the digital input backbone for process safety management (PSM) compliance, capturing critical interlock and trip signals that protect personnel and assets from hazardous process deviations.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Honeywell MU-TDID12 51304441-125?
All units supplied by TOPNLMS carry a 12-month quality warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we provide free replacement or full refund. Our warranty covers manufacturing defects and functional failures — not physical damage caused by incorrect installation or overvoltage events.

Q2: How is each unit tested before shipment?
Every MU-TDID12 unit undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical integrity, functional power-on verification, and channel-level continuity testing. Units sourced from decommissioned systems are additionally subjected to burn-in testing to confirm stable operation. A test report is available upon request for critical procurement projects.

Q3: Is this module compatible with all Experion PKS system versions?
The MU-TDID12 (51304441-125) is compatible with Honeywell Experion PKS R310, R400, R410, R430, R500, and R510 system releases when used with the corresponding ESMB I/O backplane and CC-TDID11 I/O module. For specific firmware revision compatibility or mixed-version system integration, our technical team can advise based on your system’s current configuration documentation.

Q4: Can TOPNLMS support long-term supply and replacement needs?
Yes. TOPNLMS maintains a dedicated inventory of Honeywell Experion PKS spare parts, including the MU-TDID12 and related termination and I/O modules, to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. We ship globally with DHL, FedEx, and UPS Express, with typical lead times of 3–7 business days for in-stock items. For large-volume or scheduled procurement, contact our team to discuss priority allocation and consignment stocking arrangements.
