Honeywell MU-TAOY22 51204172-125 Ruggedized Analog Output Module

Product Overview

Honeywell MU-TAOY22 51204172-125 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

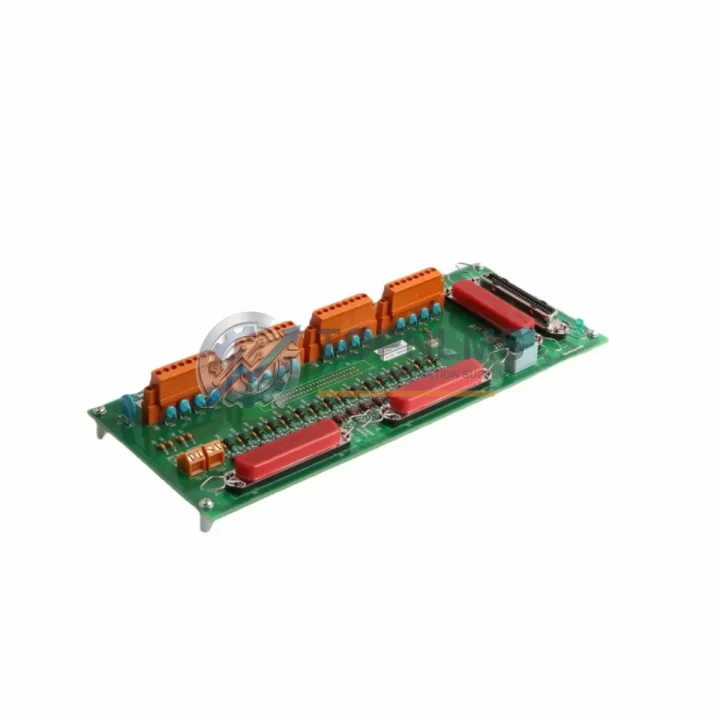

The Honeywell MU-TAOY22 (P/N 51204172-125) is a dual-channel analog output module engineered for continuous, fault-tolerant operation within Honeywell’s TotalPlant Solution (TPS) and Experion PKS Distributed Control Systems. Designed to meet the demanding requirements of process-critical industries, this module delivers stable 4–20 mA analog output signals even under conditions of high ambient temperature, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference. Its ruggedized architecture makes it a trusted backbone component in control cabinets where uptime is non-negotiable and unplanned shutdowns carry severe operational and safety consequences.

In heavy industrial environments — from offshore oil platforms to inland petrochemical complexes — analog output modules are the final command link between the DCS controller and field actuators such as control valves, variable-frequency drives, and positioners. The MU-TAOY22 maintains signal integrity across both channels simultaneously, ensuring that process variables such as flow rate, pressure, and temperature are regulated with precision even when the surrounding environment is electrically noisy or thermally stressed. Its compatibility with the Honeywell TPS C200/C300 controller family and the Experion PKS architecture means it integrates seamlessly into existing control strategies without requiring firmware reconfiguration or hardware adaptation.

Rugged Specifications Table

Comprehensive Protection Solutions

The MU-TAOY22 does not operate in isolation — it is one node in a tightly integrated control architecture where every component must perform reliably under the same harsh conditions. In a typical Experion PKS cabinet, the MU-TAOY22 works alongside the Honeywell MU-TAIX12 analog input module, which reads process sensor signals, and the MU-TDID12 digital input module, which monitors discrete field device states. Together, these I/O modules feed real-time data to the Honeywell C300 Process Controller, which executes the control logic and issues output commands back through the MU-TAOY22 to field actuators.

Power integrity is equally critical. The MU-TAOY22 relies on stable DC bus voltage supplied by the Honeywell MC-PDOX03 power distribution module or equivalent rack power supply. In installations where power quality is compromised by load switching or generator transients, an upstream industrial UPS or DC power conditioner is recommended to protect the entire I/O rack. The Honeywell MU-GAOY22 galvanically isolated analog output module serves as a functional alternative in applications requiring enhanced channel-to-channel isolation for intrinsically safe field loops.

For safety-instrumented systems operating under IEC 61511 or IEC 61508 requirements, the MU-TAOY22 is typically paired with Honeywell Safety Manager logic solvers and SM-series safety I/O modules, ensuring that the analog output path is covered within the overall safety integrity level (SIL) assessment. Communication between the Experion PKS server and field controllers is handled via the Honeywell FTE (Fault Tolerant Ethernet) network, with redundant switches ensuring that a single network failure does not interrupt process control. Terminal blocks and marshalling panels — such as the Honeywell MU-KFxx series field termination assemblies — provide the physical wiring interface between the MU-TAOY22 and field cables, simplifying maintenance and reducing the risk of wiring errors during module replacement.

In multi-loop control cabinets, the MU-TAOY22 is often installed alongside Honeywell MU-TDOY22 digital output modules for solenoid valve and relay control, and MU-TAIX12 or MU-TAIX22 analog input modules for thermocouple and RTD measurement. This modular I/O architecture allows maintenance teams to replace a single failed module without disturbing adjacent channels, minimizing mean time to repair (MTTR) and keeping the production line running.

Application in Critical Infrastructure

The Honeywell MU-TAOY22 51204172-125 is deployed across the most demanding sectors of global critical infrastructure. In oil and gas upstream and midstream operations, it controls wellhead choke valves, separator level control valves, and compressor anti-surge systems — applications where a loss of analog output signal can trigger emergency shutdowns or, worse, uncontrolled pressure excursions. Its ability to maintain calibrated 4–20 mA output under ambient temperatures exceeding 50°C and in the presence of strong electromagnetic fields from variable-frequency drives makes it particularly well-suited to offshore platform control rooms and onshore gas processing facilities.

In power generation plants — including coal-fired, gas turbine, and combined-cycle facilities — the MU-TAOY22 manages boiler feedwater control valves, turbine governor actuators, and flue gas desulfurization system dampers. The module’s dual-channel design allows a single module to control two independent loops, reducing rack space requirements and simplifying spare parts inventory. Petrochemical and refinery operations rely on the MU-TAOY22 for reactor temperature control, distillation column reflux ratio management, and heat exchanger bypass valve positioning — all processes where analog output accuracy directly impacts product quality and process safety.

In water and wastewater treatment facilities, the module drives variable-speed pump drives and chemical dosing valve positioners, where consistent analog output is essential for regulatory compliance and environmental protection. Mining and metallurgical operations — including smelters, concentrators, and ore processing plants — subject control hardware to extreme vibration, dust ingress, and wide temperature swings. The MU-TAOY22’s robust construction and Honeywell’s proven TPS/Experion platform reliability make it a preferred choice for these environments, where sourcing replacement modules quickly is critical to avoiding costly production stoppages.

Security & Quality FAQ

Q1: What warranty coverage is provided with the MU-TAOY22 51204172-125?
All MU-TAOY22 modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify analog output accuracy, channel isolation, and backplane communication integrity before dispatch.

Q2: How is each module tested before shipment?
Every MU-TAOY22 unit is bench-tested using Honeywell-compatible test equipment to verify 4–20 mA output linearity across both channels, confirm proper backplane connector integrity, and validate module identification and firmware version. A test report is available upon request for quality-critical procurement processes.

Q3: Is the MU-TAOY22 51204172-125 compatible with both TPS and Experion PKS systems?
Yes. The MU-TAOY22 with part number 51204172-125 is designed for use in both the legacy Honeywell TotalPlant Solution (TPS) and the current Experion PKS platform. It is compatible with HPM (High-Performance Process Manager) and C200/C300 controller racks. If you are uncertain about compatibility with your specific system revision, our technical team can verify against your cabinet configuration before shipment.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains dedicated inventory of Honeywell TPS and Experion PKS I/O modules to support both emergency replacement and planned maintenance programs. We can provide scheduled delivery agreements for facilities that require guaranteed spare parts availability. Contact our team to discuss volume pricing, lead times, and consignment stock arrangements tailored to your maintenance strategy.
