Honeywell MU-TAIH02 51304453-100 Replacement Solution

Product Overview

Honeywell MU-TAIH02 51304453-100 Replacement Solution: Seamless Experion PKS Migration

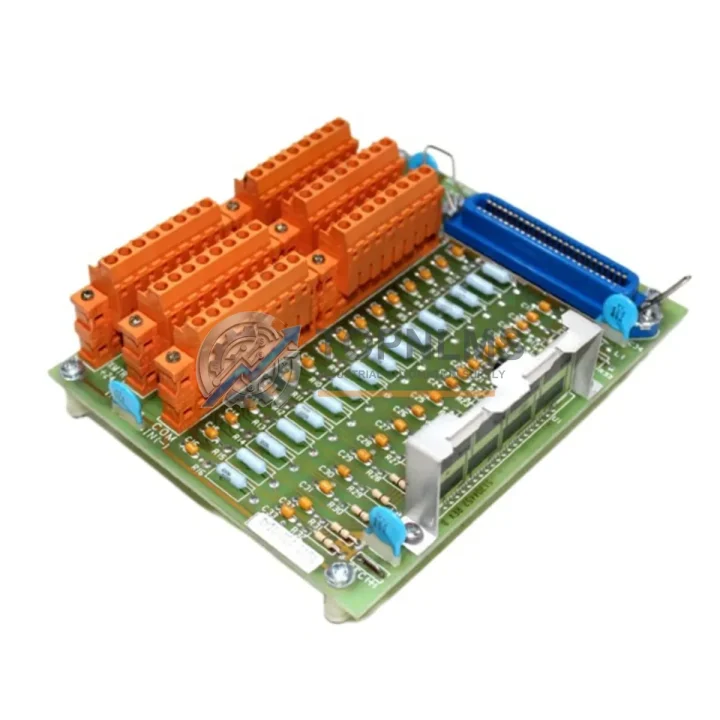

The Honeywell MU-TAIH02 (Part No. 51304453-100) is a high-density analog input termination board designed for the Honeywell Experion PKS distributed control system. As legacy DCS installations age and original equipment reaches end-of-life, facilities running C200, C300, or earlier Honeywell TDC 3000 platforms increasingly require verified replacement and upgrade pathways that preserve wiring infrastructure, minimize engineering rework, and eliminate unplanned downtime.

TOPNLMS supplies the MU-TAIH02 51304453-100 as a direct replacement component for Experion PKS analog input subsystems. Each unit is sourced from authorized distribution channels, inspected prior to dispatch, and backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Stock is maintained in Xiamen, China, with international air freight available to minimize lead time for urgent plant shutdowns or scheduled turnarounds.

The MU-TAIH02 termination board interfaces directly with the Honeywell MC-TAIH02 or equivalent analog input I/O module, providing field-side screw terminal connectivity for up to 16 channels of 4–20 mA or voltage analog signals. Its passive termination architecture means that field wiring — including shielded twisted-pair cables, junction box connections, and marshalling cabinet layouts — can be retained without modification when replacing a failed or degraded board. This is a critical advantage in brownfield retrofit projects where re-cabling costs and process interruption risks are primary concerns.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Experion PKS analog input subsystem migration typically involves more than a single termination board. When replacing the MU-TAIH02 51304453-100, engineers should audit the paired MC-TAIH02 analog input I/O module for firmware currency and physical condition, as termination board failures are sometimes symptomatic of upstream I/O module degradation. In multi-loop control cabinets, the MC-PAIH03 analog input module may serve as an alternative pairing depending on channel density requirements.

Power integrity is a common failure point in aging DCS installations. The MC-PWRJ Experion PKS power supply module and associated MC-PWRJ01 redundant power supply should be inspected and replaced on a scheduled basis alongside termination board maintenance. Unstable rail voltage is a leading cause of premature analog I/O board failure and signal drift in 4–20 mA loops.

For facilities migrating from Honeywell TDC 3000 or PlantScape to Experion PKS, the transition often requires replacing legacy HPM (High-Performance Process Manager) I/O cards with Experion-compatible equivalents. In these projects, the MU-TAIH02 termination board is typically installed alongside new C300 process controllers and IOLIM (I/O Link Interface Module) components that bridge legacy field devices to the modern FTE network backbone.

Communication infrastructure upgrades are equally important. The CC-TCNT01 FTE network switch and CC-PCNT01 control firewall module are commonly specified in Experion PKS modernization projects to ensure deterministic Ethernet performance across the control network. Signal conditioning requirements for legacy 2-wire transmitters may also necessitate the addition of signal isolators or loop-powered barriers at the marshalling cabinet level, particularly when integrating older HART field devices into the new analog input termination architecture.

For sites requiring programming and configuration support during migration, the Honeywell Control Builder engineering workstation software and a compatible USB-to-serial programming cable for legacy module configuration are standard tools in the commissioning toolkit. Ensuring that the Experion PKS server and Application Station (AS) are running compatible software revisions before swapping termination boards prevents configuration mismatch errors during loop checkout.

Retrofit Guidance FAQ

Q: Can I replace the MU-TAIH02 51304453-100 without rewiring field cables?
A: Yes. The MU-TAIH02 uses a standard screw terminal field-side interface. Existing field wiring, including shielded twisted-pair cables and junction box connections, can be reconnected directly to the replacement board without modification, provided the wiring was originally installed to Experion PKS specifications.

Q: Is the 51304453-100 revision backward compatible with the 51304453-050?
A: In most Experion PKS installations, yes. However, it is recommended to verify the firmware version of the paired MC-TAIH02 I/O module before commissioning. Mismatched firmware revisions between the termination board and I/O module can cause channel calibration offsets or diagnostic faults. Contact TOPNLMS for revision-specific compatibility guidance.

Q: What communication protocol does the MU-TAIH02 system use?
A: The MU-TAIH02 termination board itself is a passive field-side component. Communication is handled by the paired I/O module and the C300 or C200 controller via Honeywell’s Fault Tolerant Ethernet (FTE) protocol. No protocol configuration is required at the termination board level.

Q: Will the replacement board fit in the existing Experion PKS I/O chassis?
A: Yes. The MU-TAIH02 51304453-100 is designed for the standard Experion PKS I/O chassis. No mechanical modification to the control cabinet or chassis is required. Physical dimensions and mounting interface are identical to the original unit.

Q: How do I handle HART-enabled field devices during the replacement?
A: HART pass-through is supported via the paired MC-TAIH02 I/O module when HART is enabled in the Experion PKS configuration. Verify that HART multiplexer settings in Control Builder are preserved after the board swap. No changes to field device configuration are typically required.

Q: What is the lead time and shipping arrangement?
A: Stock is maintained in Xiamen, China. Standard international air freight lead time is 3–7 business days depending on destination. Expedited shipping is available for urgent plant shutdowns. Contact [email protected] or +86 18359293191 for real-time stock confirmation and freight quotation.

Warranty Assurance

Every Honeywell MU-TAIH02 51304453-100 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify board integrity, terminal condition, and connector alignment. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or full refund at the buyer’s election, subject to return of the defective unit and confirmation of failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit. Damage resulting from incorrect installation, overvoltage, or unauthorized modification is excluded from warranty coverage.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with each shipment. Long-term supply agreements and blanket purchase orders are supported for facilities with ongoing MRO requirements across multiple Experion PKS sites.

To confirm availability, request a quotation, or discuss compatibility for your specific installation, contact the TOPNLMS technical sales team directly.
