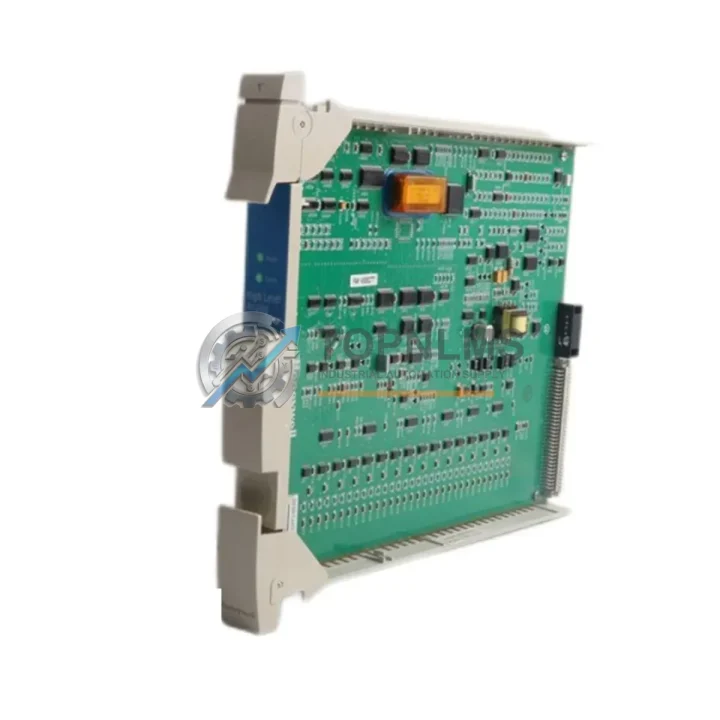

Honeywell MU-PAOX03 51304672-100 Ruggedized Analog Output Module

Product Overview

Honeywell MU-PAOX03 51304672-100 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

The Honeywell MU-PAOX03 (Part No. 51304672-100) is a high-performance analog output module engineered for the Experion PKS Series C I/O platform — one of Honeywell’s most trusted distributed control system (DCS) architectures deployed across critical industrial infrastructure worldwide. Designed to deliver precise, stable 4–20 mA analog signal output under the most demanding field conditions, this module is a cornerstone component in process automation environments where signal integrity, uptime, and safety are non-negotiable.

Built to withstand the rigors of continuous industrial operation, the MU-PAOX03 maintains reliable performance in environments characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI). Whether installed in a sealed control cabinet on an offshore oil platform, a dusty cement plant, or a high-voltage substation, this module delivers consistent analog output with the precision and repeatability that Honeywell’s Experion PKS architecture demands.

Rugged Specifications Table

Comprehensive Protection Solutions

The MU-PAOX03 51304672-100 does not operate in isolation — it is an integral node within a broader Honeywell Experion PKS control architecture. In a typical Series C I/O cabinet, this analog output module works in concert with the MU-PAIX02 analog input module to form a complete signal acquisition and command loop. The CC-PAIX01 and CC-PAOX01 CHARM I/O modules from the Experion PKS CHARM architecture serve as complementary signal conditioning components in adjacent cabinet bays.

For process control integrity, the MU-PAOX03 interfaces directly with the C300 Process Controller, Honeywell’s flagship DCS controller, which manages loop execution and redundancy switching. In safety-instrumented systems, this module is often paired with the Honeywell FSC (Fail-Safe Controller) safety modules to ensure that analog output commands are validated against safety logic before reaching final control elements such as control valves and variable frequency drives (VFDs).

Power distribution to the Series C I/O chassis is typically managed through the MU-PWRX02 power supply module, which provides regulated, filtered DC power to all I/O modules in the rack — including the MU-PAOX03. Redundant power configurations using dual MU-PWRX02 units are standard practice in high-availability installations. Communication between the I/O chassis and the C300 controller is handled via the Series C I/O Link, a deterministic, fault-tolerant fieldbus that ensures low-latency data exchange even under heavy EMI conditions.

In installations requiring intrinsic safety barriers or galvanic isolation for hazardous area compliance, the MU-PAOX03 is commonly used alongside Honeywell SIS (Safety Instrumented System) barriers and MTL or P+F Zener barriers to protect field wiring in Zone 1 and Zone 2 classified areas. Terminal modules such as the MU-TAOX03 termination assembly provide the field wiring interface, ensuring clean, vibration-resistant connections between the module and field instruments.

For facilities running mixed automation architectures, the MU-PAOX03 can coexist in control rooms alongside Siemens S7-400 or Allen-Bradley ControlLogix PLCs via OPC DA/UA gateways, enabling unified SCADA supervision across heterogeneous control systems without compromising the integrity of the Honeywell DCS loop.

Application in Critical Infrastructure

The Honeywell MU-PAOX03 51304672-100 has earned its place in some of the world’s most demanding industrial environments. In upstream oil and gas operations, this module controls the analog setpoints of wellhead pressure control valves and gas injection systems, where a signal dropout could trigger emergency shutdown sequences and costly production losses. Its robust EMI shielding and isolated output channels make it particularly well-suited for offshore platforms where high-power electrical equipment and marine radio systems create persistent electromagnetic noise.

In coal-fired and gas-fired power generation plants, the MU-PAOX03 manages boiler feed water control, turbine governor analog commands, and combustion air damper positioning — all processes where analog output accuracy directly impacts thermal efficiency and emissions compliance. The module’s wide operating temperature range ensures stable performance in hot control rooms adjacent to boiler houses.

Within water and wastewater treatment facilities, this module drives the analog inputs of variable frequency drives (VFDs) controlling pump speed, chemical dosing pump stroke length, and aeration blower output — applications where precise flow control is essential for regulatory compliance and energy efficiency. The module’s resistance to humidity and condensation is critical in these wet-process environments.

In metallurgical and steel production plants, the MU-PAOX03 controls analog setpoints for electric arc furnace electrode positioning, rolling mill speed references, and cooling water flow regulation. The combination of vibration resistance and high-temperature tolerance makes it a reliable choice in environments where heavy machinery generates constant mechanical stress on control cabinet components.

Mining operations — particularly underground coal and hard-rock mines — rely on the MU-PAOX03 for ventilation fan speed control, conveyor drive regulation, and slurry pump management. In these environments, the module’s compliance with IEC 61000 EMI standards protects signal integrity against interference from large electric motors and variable speed drives operating in close proximity to control panels.

Security & Quality FAQ

Q1: Does the MU-PAOX03 51304672-100 come with a warranty, and what does it cover?
Yes. Every MU-PAOX03 51304672-100 unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. All units undergo functional testing prior to shipment, including output channel verification and communication interface checks. If a unit fails within the warranty period, we provide a replacement or full refund — no questions asked.

Q2: How is each unit tested before shipment?
All MU-PAOX03 modules are subjected to a pre-shipment inspection protocol that includes visual inspection for physical damage, power-on functional testing of all analog output channels, and verification of backplane communication interface integrity. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with my existing Honeywell Experion PKS system?
The MU-PAOX03 51304672-100 is designed specifically for the Honeywell Experion PKS Series C I/O platform and is compatible with the C300 Process Controller and standard Series C I/O chassis configurations. It is a direct replacement for worn or failed units in existing installations. If you are unsure about compatibility with your specific system revision or firmware version, please contact our technical team at [email protected] with your system configuration details.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains standing inventory of the MU-PAOX03 51304672-100 and other Honeywell Experion PKS Series C I/O modules to support both planned maintenance schedules and emergency breakdown replacement scenarios. We understand that unplanned downtime in critical infrastructure is unacceptable, and our logistics team is equipped to process urgent orders with expedited shipping to minimize production interruption. For long-term supply agreements or blanket purchase orders, please contact us directly.
