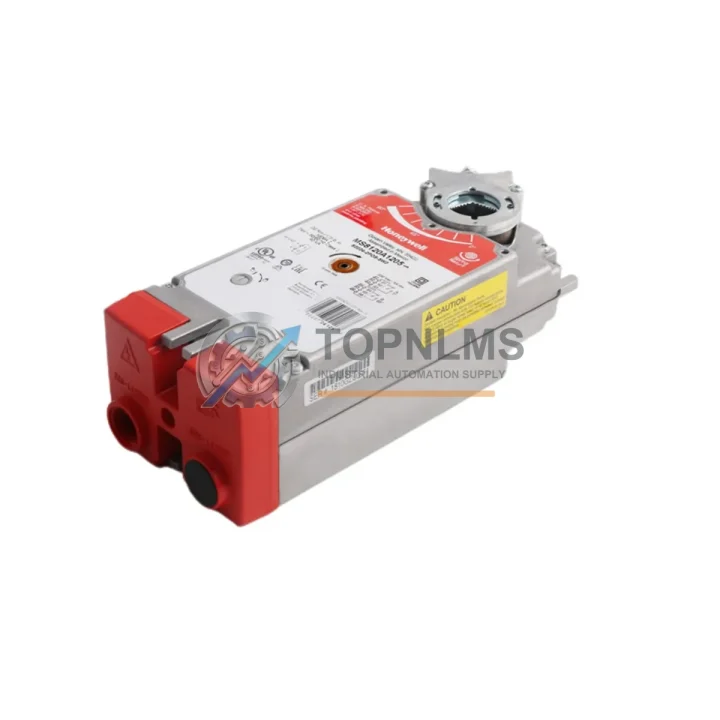

Honeywell MS8120A1205 Replacement for S2024 Series

Product Overview

Honeywell MS8120A1205 Replacement for S2024 Series: Seamless Transition & Legacy System Compatibility

When your existing HVAC control system relies on a Honeywell S2024 Series damper actuator and the original unit reaches end-of-life or becomes unavailable, the MS8120A1205 S2024-2POS-SW2 provides a verified drop-in replacement path that preserves your existing wiring infrastructure, control panel layout, and BAS (Building Automation System) integration. Engineered as a spring-return, 2-position actuator with auxiliary switch (SW2), this unit is purpose-built for zone damper control in commercial HVAC applications where fail-safe operation is mandatory.

Many facilities running legacy Honeywell Excel 5000, Excel 800, or older W7600 zone controller platforms encounter actuator obsolescence before the broader control system reaches replacement age. Rather than triggering a full system overhaul, the MS8120A1205 allows maintenance teams to perform a targeted component swap — replacing only the failed or aging actuator while retaining the existing Honeywell ML6161, ML7161, or compatible zone valve and damper linkage assemblies already installed in the air handling unit or VAV box.

The spring-return mechanism ensures the damper returns to its fail-safe closed (or open, depending on installation) position upon loss of power or control signal — a critical safety requirement in smoke control, pressurization, and fire/smoke damper applications governed by NFPA 90A and local building codes. The integrated SW2 auxiliary switch provides end-of-travel feedback to the DDC controller or BAS panel, enabling position confirmation without additional external limit switches.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful actuator replacement rarely involves the actuator alone. During the retrofit process, maintenance engineers typically audit adjacent components to ensure the entire damper control loop performs reliably after the swap. When replacing the MS8120A1205 in a Honeywell-based HVAC control system, the following components are commonly evaluated or replaced in parallel:

The Honeywell ML6161B2024 and ML7161A2024 floating-point actuators are frequently found in the same air handling unit alongside 2-position units, controlling modulating dampers in mixed-air or return-air sections. If the MS8120A1205 is being replaced due to age, these modulating actuators should be inspected for gear wear and spring fatigue at the same service interval.

Zone controller wiring typically routes through a Honeywell W7600A or W7620 zone panel, which distributes 24VAC control signals to multiple actuators across a floor or zone. Verifying terminal block integrity and relay output condition on the zone panel before commissioning the new actuator prevents nuisance callbacks caused by upstream wiring faults rather than the actuator itself.

In VAV box applications, the actuator shaft couples directly to the damper blade via a universal shaft adapter or jackscrew linkage kit — components that are often overlooked during actuator-only replacements. A worn or corroded linkage can prevent the new actuator from achieving full 90° travel, triggering false end-of-travel switch signals to the DDC controller.

For facilities integrating the replaced actuator into a Niagara Framework or BACnet/IP BAS, a Honeywell WEB-600 or compatible BACnet controller may be used to map the SW2 auxiliary switch feedback point as a binary input, enabling alarm annunciation and position logging without additional field wiring changes.

Where the existing control cabinet uses a Honeywell T775 or T7300 electronic controller for standalone zone management, the 2-position output relay on these controllers is directly compatible with the MS8120A1205 control input — no output card changes or signal conditioning required.

In smoke control and pressurization systems, the MS8120A1205 is often installed alongside Honeywell fire/smoke damper actuators from the MS4109 or MS4620 series, which handle UL 555S-listed smoke damper applications. While the MS8120A1205 is not rated for smoke damper duty, coordinating its replacement with adjacent fire/smoke actuator inspections reduces total system downtime during a single maintenance window.

Signal isolation between the BAS panel and the actuator field wiring is sometimes achieved using DIN-rail mounted signal isolators or relay modules — particularly in older installations where ground loops or long cable runs introduce noise on the 24VAC control circuit. Replacing these isolators during the actuator swap ensures clean signal integrity for the new unit.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring harness from the old S2024 actuator?
A: Yes. The MS8120A1205 S2024-2POS-SW2 uses the same 24VAC 3-wire control input and SW2 auxiliary switch wiring configuration as earlier S2024 revisions. No rewiring is required in standard replacement scenarios. Verify wire gauge (minimum 18 AWG recommended) and terminal tightness before energizing.

Q: Does the replacement actuator require any programming changes in the DDC controller?
A: No software changes are required for a like-for-like 2-position replacement. The DDC controller sees the same binary output load and receives the same SW2 binary feedback. If the original actuator’s feedback point was mapped in the BAS, the point mapping remains valid without modification.

Q: What communication protocol does this actuator use?
A: The MS8120A1205 is a hardwired 24VAC 2-position actuator — it does not use a digital communication protocol (no BACnet, Modbus, or LON interface). Control is via direct 24VAC switched output from the DDC or zone controller relay. This makes it universally compatible with any BAS platform that provides a 24VAC switched output.

Q: Will the actuator fit in the same physical space as the original unit?
A: Yes. The S2024 series maintains a consistent mechanical envelope across production revisions. The direct shaft mount, clamp mechanism, and overall body dimensions are unchanged, allowing installation in the same VAV box or AHU damper shaft position without bracket modifications or duct section removal.

Q: How do I verify the auxiliary switch (SW2) is functioning correctly after installation?
A: After mounting and wiring, apply 24VAC to the control input and allow the actuator to drive to the open position. Use a multimeter to verify continuity across the SW2 terminals at end-of-travel. The switch should change state (open or closed, depending on wiring) when the actuator reaches full 90° rotation. Confirm the DDC controller receives the expected binary input state change.

Q: What is the lead time and shipping arrangement?
A: Units are stocked and ship from Xiamen within 1–3 business days of order confirmation. International shipments are dispatched via DHL Express or FedEx International Priority. Domestic China orders ship same-day for orders placed before 14:00 CST. All units undergo pre-shipment functional testing.

Warranty Assurance

Every Honeywell MS8120A1205 S2024-2POS-SW2 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, spring-return mechanism failure, auxiliary switch malfunction, and gear train faults under normal operating conditions.

Pre-Shipment Testing: Each unit is functionally tested prior to dispatch — verifying full 90° rotation, spring-return operation, SW2 switch actuation at end-of-travel, and 24VAC input response. A test record is available upon request for quality-controlled procurement processes.

Replacement Support: In the event of a warranty claim, TOPNLMS will arrange a replacement unit shipment within 5 business days of fault confirmation. Customers are not required to return the defective unit before the replacement is dispatched for critical infrastructure applications — contact our team to confirm eligibility.

After-Sales Response: Technical support is available via email at [email protected] or by phone at +86 18359293191 during business hours (09:00–18:00 CST, Monday–Friday). Response time for warranty and technical inquiries is within 24 hours on business days.

Procurement Assurance: All units are sourced through authorized distribution channels. Documentation including packing lists, commercial invoices, and certificates of conformance are provided with every shipment to support customs clearance and internal procurement audit requirements.
