Honeywell MC-TDOY22 Replacement for Experion PKS TDC 3000

Product Overview

Honeywell MC-TDOY22 Replacement for Experion PKS TDC 3000: Seamless Transition & Legacy System Compatibility

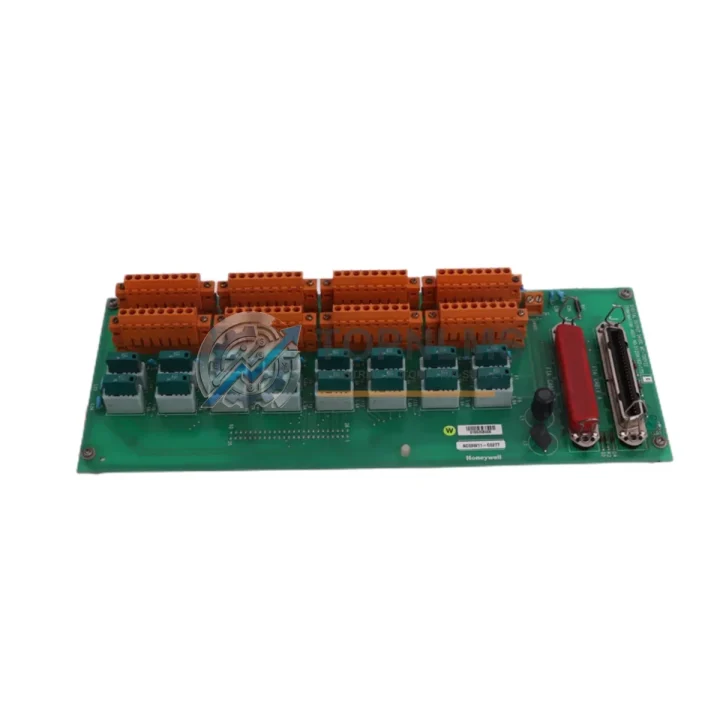

The Honeywell MC-TDOY22 (Part No. 51204162-175) is a Digital Output High-Density (HD) Termination PCB engineered for the Experion PKS and TDC 3000 distributed control system platforms. As Honeywell progressively phases out legacy I/O infrastructure, facilities running TDC 3000 or early-generation Experion PKS architectures face increasing pressure to source reliable, tested replacement modules that preserve existing wiring, cabinet layouts, and control logic without forcing a full system overhaul.

TOPNLMS supplies the MC-TDOY22 51204162-175 as a verified drop-in replacement, sourced from authorized channels and subjected to pre-shipment functional testing. Each unit ships with a 12-month warranty and full traceability documentation, giving procurement and maintenance teams the confidence to plan scheduled turnarounds or respond to unplanned failures with minimal downtime exposure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a TDC 3000 or early Experion PKS architecture to a modernized control environment rarely involves a single module swap. In practice, the MC-TDOY22 51204162-175 termination PCB is one component within a broader I/O subsystem that may also require attention to adjacent hardware. When replacing or upgrading the digital output termination layer, engineers frequently find that the associated MC-PAOY22 analog output FTA or the MC-TDIY22 digital input HD termination PCB are similarly aged and benefit from concurrent replacement to avoid repeat outages.

On the controller side, facilities migrating from TDC 3000 HPM (High-Performance Manager) nodes to Experion PKS C300 controllers will need to verify that the MC-IOLIM01 I/O Link Interface Module is correctly configured to bridge legacy FTA wiring to the new C300 I/O subsystem. In many retrofit projects, the MC-PDOX02 power distribution module and associated MC-PSIM11 power supply input module are also replaced as part of the same cabinet refresh, since aging power infrastructure is a common root cause of intermittent DO faults that are initially misdiagnosed as termination PCB failures.

For facilities that retain the Experion PKS architecture but need to extend communication reach or integrate third-party field devices, the MC-ENET11 Ethernet Interface Module and MC-COMM03 communication module are frequently specified alongside DO termination upgrades. Where the control cabinet includes HART-enabled field instruments, adding a MC-TAIH04 analog input HART FTA during the same maintenance window avoids a second cabinet opening. Finally, for sites that are simultaneously upgrading their HMI layer, the Experion PKS Station or a compatible Honeywell Experion PKS Operator Station running the current Experion software release ensures that the new DO module’s diagnostic data is fully visible at the operator interface without additional configuration overhead.

Retrofit Guidance FAQ

Q: Can I replace the MC-TDOY22 51204162-175 without rewiring the field terminals?
A: Yes. The 51204162-175 revision uses the same screw-terminal field wiring layout as earlier MC-TDOY22 revisions. Existing field cables connect directly to the replacement PCB without modification, provided the FTA rail and mounting hardware are in serviceable condition.

Q: Do I need to modify the Experion PKS control strategy or download new logic after replacement?
A: No. The MC-TDOY22 is a passive termination PCB — it carries no embedded firmware or configurable parameters. The Experion PKS C300 or HPM controller recognizes the module transparently. No control strategy download or I/O point re-assignment is required for a like-for-like revision swap.

Q: Is the MC-TDOY22 51204162-175 compatible with TDC 3000 HPM I/O cabinets?
A: Yes. The module is designed for use in both TDC 3000 HPM I/O subsystems and Experion PKS I/O cabinets that use the standard FTA rail mounting system. Verify that the FTA mounting rail and I/O Link cable are intact before installation.

Q: What communication protocol does this termination PCB use?
A: The MC-TDOY22 interfaces with the Honeywell proprietary I/O Link protocol. No additional protocol converters or gateways are required when replacing within the same Experion PKS or TDC 3000 system architecture.

Q: How much physical space does the replacement require in the control cabinet?
A: The MC-TDOY22 51204162-175 occupies the same FTA slot footprint as all standard HD termination PCBs in the Experion PKS / TDC 3000 FTA family. No cabinet modifications, additional DIN rail space, or bracket adapters are needed.

Q: What is the recommended procedure for commissioning after installation?
A: After seating the PCB on the FTA rail and reconnecting field wiring, power up the I/O cabinet and verify that the Experion PKS system recognizes the module without faults. Perform a point-by-point DO channel verification using the Experion Control Builder or Station diagnostic tools before returning the loop to automatic control.

Warranty Assurance

Every MC-TDOY22 51204162-175 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify electrical integrity, connector condition, and board-level continuity. Units that do not meet our quality threshold are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable within one business day for fault diagnosis support, return merchandise authorization (RMA) processing, and technical clarification. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your plant’s exposure to extended downtime.

For procurement teams requiring documentation, we can provide inspection reports, test records, and product traceability certificates upon request. Bulk orders and long-term supply agreements are available for MRO and spare-parts programs.

Stock is available for immediate shipment. Lead time for in-stock units is typically 3–7 business days to most international destinations via DHL, FedEx, or UPS Express.
