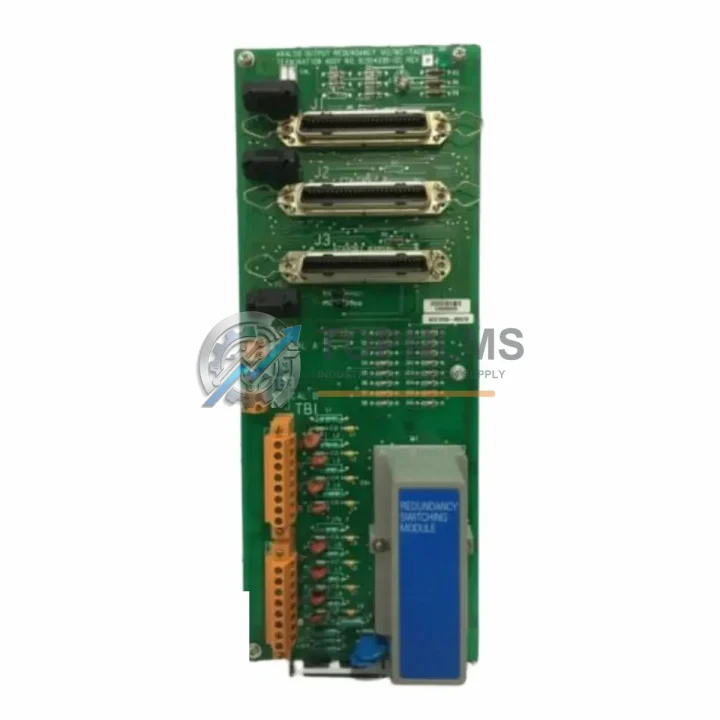

Honeywell MC-TAOX12 51304335-125 Ruggedized Analog Output Module

Product Overview

Honeywell MC-TAOX12 51304335-125 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

The Honeywell MC-TAOX12 51304335-125 is a 12-channel analog output module engineered for continuous, mission-critical operation within the Honeywell Experion PKS and TDC 3000 distributed control system architectures. Designed to withstand the rigors of high-temperature process plants, high-humidity coastal facilities, dust-laden mining environments, and electromagnetically noisy heavy industrial sites, this module delivers precise 4–20 mA signal conditioning with the reliability that safety-critical infrastructure demands. Whether deployed in a redundant controller cabinet alongside the Honeywell MC-PAOX12 power conditioner or integrated into a multi-drop I/O bus with the MC-TAIX12 analog input counterpart, the MC-TAOX12 maintains signal integrity under conditions that would compromise lesser hardware.

Rugged Specifications Table

Comprehensive Protection Solutions

In a modern DCS control cabinet, the MC-TAOX12 rarely operates in isolation. It is typically paired with the Honeywell MC-TAIX12 51304337-150 analog input module to form a complete I/O loop — the output module driving field actuators such as control valves and variable-speed drives, while the input module reads back process variables from transmitters and sensors. The backplane integrity of the Experion PKS chassis is maintained by the MC-PAOX12 power conditioner, which filters transient voltage spikes that are common in facilities running large induction motors or arc furnaces.

For installations in zones with elevated electromagnetic interference — such as substations, motor control centers, or facilities with high-frequency welding equipment — the MC-TAOX12 is best deployed alongside Honeywell ELCN-0001 or equivalent surge protection terminal blocks, and within cabinets that incorporate Phoenix Contact TRABTECH or similar DIN-rail surge arresters on every field cable entry. The module’s 4–20 mA current-loop output is inherently more noise-immune than voltage-mode signaling, making it the preferred choice for long cable runs in electrically noisy plants.

When the control architecture demands functional safety compliance, the MC-TAOX12 is commonly integrated with Honeywell Safety Manager safety instrumented system (SIS) controllers and HC900 hybrid controllers, where it handles non-safety analog outputs while the SIS layer manages SIL-rated shutdown functions. Communication between the Experion PKS server and field devices is coordinated through Honeywell C300 process controllers and EPLCG2 Ethernet switches, ensuring deterministic data exchange even under high network load. For legacy TDC 3000 installations, the module interfaces seamlessly with the Honeywell HPM (High-Performance Process Manager) and LCN (Local Control Network) infrastructure, protecting existing capital investment while enabling phased migration to Experion PKS.

Relay output expansion, where discrete on/off control is required alongside analog modulation, is typically handled by Honeywell MC-TDOY22 digital output modules mounted in adjacent slots of the same I/O chassis. Terminal modules such as the MC-TAOX12 FTA (Field Termination Assembly) provide the marshalling interface between the module’s backplane connector and field wiring, simplifying maintenance and reducing the risk of wiring errors during hot-swap replacement procedures.

Application in Critical Infrastructure

The MC-TAOX12 51304335-125 has established a proven track record across the most demanding sectors of global industrial infrastructure:

Oil & Gas Upstream and Midstream: On offshore platforms and onshore gathering stations, the module controls wellhead choke valves, gas compression bypass valves, and separator level control loops. Its ability to maintain calibrated 4–20 mA output accuracy in the presence of salt-laden humid air and diesel generator-induced power fluctuations makes it a preferred choice for remote unmanned installations where maintenance access is infrequent and reliability is non-negotiable.

Petrochemical and Refinery Operations: In continuous catalytic cracking (FCC) units, distillation columns, and heat exchanger networks, the MC-TAOX12 drives pneumatic positioners on control valves that regulate temperature, pressure, and flow. Unplanned downtime in these environments carries costs measured in tens of thousands of dollars per hour, making the availability of tested, warranted spare modules a critical element of plant maintenance strategy.

Power Generation: Coal-fired, gas turbine, and combined-cycle power plants rely on Honeywell Experion PKS for boiler management, turbine control, and balance-of-plant automation. The MC-TAOX12 manages analog setpoints for burner management systems, feedwater control valves, and generator excitation systems, where output signal accuracy directly affects grid stability and emissions compliance.

Water and Wastewater Treatment: Municipal water authorities and industrial effluent treatment plants deploy the MC-TAOX12 to control chemical dosing pumps, aeration blowers, and filtration backwash sequences. The module’s wide operating temperature range and humidity tolerance make it suitable for outdoor pump station control panels in tropical and sub-arctic climates alike.

Mining and Metallurgy: In ore processing plants, smelters, and rolling mills, the module withstands the combination of heavy vibration from crushers and conveyors, airborne conductive dust, and the intense electromagnetic fields generated by large DC drive systems. Its robust backplane connection and conformal-coated PCB construction (standard on Honeywell Experion PKS I/O modules) provide the physical durability required for multi-year continuous operation between scheduled maintenance windows.
