Honeywell MC-PPIX02 51304386-100 Replacement for Experion PKS

Product Overview

Honeywell MC-PPIX02 51304386-100 Replacement for Experion PKS: Smooth Migration & Legacy System Upgrade

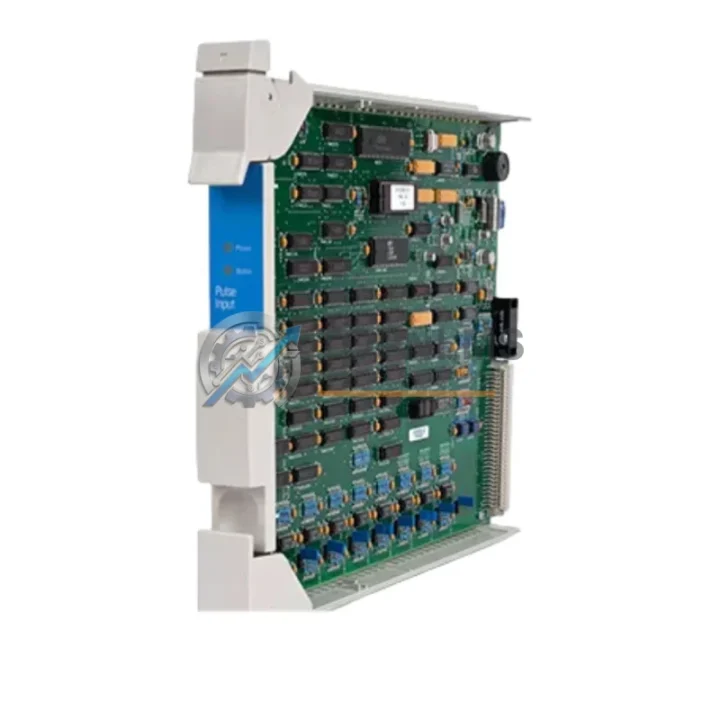

The Honeywell MC-PPIX02 (Part No. 51304386-100) is a Process Point I/O Interface Module designed for the Experion PKS (Process Knowledge System) distributed control platform. As Honeywell progressively phases out legacy Experion PKS hardware, many facilities running older C200, C300, or ACE controller-based architectures are now facing urgent replacement decisions. TOPNLMS supplies tested, ready-to-ship MC-PPIX02 modules to support seamless migration with minimal process interruption.

Whether your plant is transitioning from an aging TDC 3000 or PlantScape system, or simply replacing a failed MC-PPIX02 in an existing Experion PKS cabinet, this module provides a verified drop-in solution. The 51304386-100 interfaces directly with the MC-PAIH03 analog input modules and MC-PAOH01 analog output modules mounted on the same I/O Link segment, preserving your existing field wiring terminations and eliminating the need for re-engineering terminal blocks or marshalling cabinets.

In multi-drop I/O Link topologies, the MC-PPIX02 communicates with the C200E or C300 controller via the Fault Tolerant Ethernet (FTE) backbone or the dedicated I/O Link bus, depending on cabinet configuration. Replacement of this module does not require changes to the FTE switch infrastructure or the MC-ENET01 Ethernet interface cards already installed in the chassis. The module slots into the standard MC-RACK01 or MC-RACK02 I/O rack without mechanical modification, and the 24 VDC power rail supplied by the MC-PDOX02 power distribution module remains fully compatible.

From a programming perspective, the Experion PKS Control Builder environment recognizes the replacement MC-PPIX02 automatically upon rack scan. No function block re-download or point re-configuration is required in most cases, provided the firmware revision is matched to the existing system baseline. TOPNLMS verifies firmware compatibility prior to shipment and can supply modules pre-configured to customer-specified revision levels on request.

For sites undertaking a broader migration — for example, consolidating multiple legacy HPM (High-Performance Process Manager) cabinets into a modern Experion PKS architecture — the MC-PPIX02 serves as the I/O interface backbone for the new I/O subsystem. In this context, it works alongside MC-TDID12 digital input modules, MC-TDOD08 digital output modules, and MC-TAIH04 thermocouple input modules to reconstruct the full I/O complement of the retired HPM I/O cards. Field signal cables can typically be re-terminated directly to the new Experion PKS I/O termination assemblies, reducing rewiring labor significantly.

Communication protocol compatibility is a critical concern during any DCS migration. The MC-PPIX02 operates on Honeywell’s proprietary I/O Link protocol, which is fully supported across all Experion PKS R310 through R520 software releases. If your site is simultaneously upgrading the Experion PKS server from an older R2xx release, TOPNLMS recommends confirming the module firmware baseline against the target software release notes before installation. Our technical team can assist with this compatibility check at no additional cost.

Physical installation is straightforward. The MC-PPIX02 occupies a single slot in the Experion PKS I/O rack and connects to the I/O Link cable via the standard RJ-45 port on the module face. Cabinet space requirements are identical to the original module, making it suitable for retrofit in existing control cabinets without panel modification. The module draws approximately 3.5 W from the 24 VDC bus, well within the capacity of the standard MC-PDOX02 power supply already installed in most Experion PKS I/O enclosures.

For facilities managing spare parts inventory across multiple Experion PKS nodes, the MC-PPIX02 (51304386-100) is a high-priority stocking item. A single module can serve as a hot-standby replacement across any rack in the plant that uses the same I/O Link segment architecture, reducing the total number of critical spares required. TOPNLMS maintains stock of this module and can fulfill orders with same-day or next-business-day dispatch from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Experion PKS I/O migration or cabinet rebuild typically involves several interdependent components beyond the MC-PPIX02 itself. The MC-PAIH03 analog input module and MC-PAOH01 analog output module share the same I/O Link segment and are commonly replaced in the same maintenance window. Digital I/O coverage is handled by the MC-TDID12 digital input module and MC-TDOD08 digital output module, which slot into adjacent positions in the MC-RACK01 chassis. For temperature measurement loops migrating from legacy thermocouple cards, the MC-TAIH04 thermocouple input module provides direct replacement capability with standard J, K, and T type sensor support.

Power integrity is maintained through the MC-PDOX02 power distribution module, which should be inspected or replaced concurrently when performing a full rack overhaul. Network connectivity between the I/O rack and the Experion PKS server is routed through the MC-ENET01 Ethernet interface card, and the FTE switch infrastructure — typically a Cisco IE 2000 or equivalent industrial managed switch — should be verified for VLAN and QoS configuration compatibility with the replacement module. For sites that require a programming interface during commissioning, the Honeywell MU-KFCS02 programming cable or equivalent USB-to-serial adapter supports direct module diagnostics via the Control Builder environment.

Retrofit Guidance FAQ

Q: Can I replace the MC-PPIX02 without shutting down the entire Experion PKS node?
A: In most Experion PKS configurations, the I/O Link segment served by the MC-PPIX02 must be taken offline during module swap. However, if the C300 controller is configured with redundant I/O paths, the affected segment can be isolated without interrupting the controller or other I/O segments. Consult your Experion PKS system architecture diagram before proceeding.

Q: Will my existing field wiring terminations remain compatible?
A: If you are replacing a like-for-like MC-PPIX02 within an existing Experion PKS rack, field wiring terminations at the termination assembly are unaffected. Migration from TDC 3000 or PlantScape hardware will require re-termination at the Experion PKS termination assembly, but the field cable runs themselves are typically reusable.

Q: Does the replacement module require a firmware update?
A: TOPNLMS ships modules with firmware verified against the customer’s specified Experion PKS software release. If the release is not specified, we default to the latest stable firmware. Firmware can also be updated in the field via Control Builder without removing the module from the rack.

Q: Is the I/O Link communication protocol compatible across all Experion PKS releases?
A: Yes. The I/O Link protocol used by the MC-PPIX02 is consistent across Experion PKS R310 through R520. Customers running R2xx releases should confirm compatibility with Honeywell’s release notes or contact our technical team for guidance.

Q: What physical space does the module require in the control cabinet?
A: The MC-PPIX02 occupies a single slot in the MC-RACK01 or MC-RACK02 I/O rack. No additional panel space or DIN rail mounting is required. The module dimensions and connector layout are identical to the original, ensuring a true drop-in fit.

Warranty Assurance

Every MC-PPIX02 (51304386-100) supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, I/O Link communication check, and visual inspection for connector integrity and board condition. Modules that do not pass our outgoing quality check are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement module dispatch within 3 business days of fault confirmation, minimizing plant downtime. Our after-sales team is reachable via email and phone for technical support throughout the warranty period. Customers requiring expedited replacement can request advance shipment of a replacement unit pending return of the faulty module.

For procurement teams, TOPNLMS issues a formal invoice, packing list, and certificate of conformance with every shipment. Export documentation for international customers is prepared in compliance with Chinese customs regulations. Stock availability is confirmed at time of order, and lead times for in-stock modules are typically 1–3 business days for domestic China delivery and 5–10 business days for international air freight.
