Honeywell MC-PLAM02 51304362-150 Original Industrial Spare TDC 3000 Compatible

Product Overview

Honeywell MC-PLAM02 51304362-150 Original Industrial Spare TDC 3000 Compatible: System Stability and Industrial Spare Parts Maintenance Value

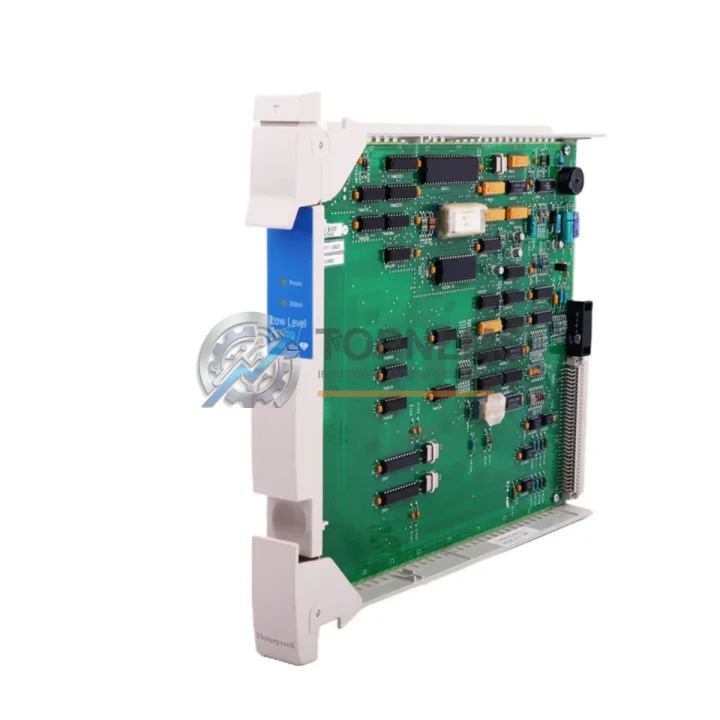

In process industries where continuous uptime is non-negotiable, the Honeywell MC-PLAM02 (P/N 51304362-150) Low Level Analog Multiplexer Module stands as a critical node in the TDC 3000 and TPS distributed control system architecture. Designed to acquire and multiplex low-level analog signals from thermocouples, RTDs, millivolt sources, and other field transmitters, this module feeds precision data into the control loop — making it indispensable for temperature monitoring, process variable acquisition, and closed-loop control in refineries, chemical plants, power generation facilities, and pulp and paper operations.

When this module fails or degrades, the consequences extend far beyond a single I/O point. Signal dropout, erratic readings, or complete loss of analog acquisition can cascade into process upsets, safety system activations, and unplanned shutdowns. Maintaining a verified original spare of the MC-PLAM02 51304362-150 in your critical spares inventory is one of the most cost-effective insurance policies available to a DCS maintenance team.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance window for a TDC 3000 or TPS control system is the ideal time to go beyond simply replacing the MC-PLAM02 51304362-150 and conduct a comprehensive audit of the surrounding analog acquisition and signal conditioning infrastructure. Experienced DCS maintenance engineers know that analog multiplexer failures rarely occur in isolation — they are often preceded or accompanied by degradation in adjacent components that share the same card cage, power rail, or field wiring loop.

During the same maintenance window, it is strongly recommended to inspect and, where appropriate, replace the MC-TAIH02 High Level Analog Input Module, which handles 4–20 mA and voltage signals in the same TPS file and is subject to similar aging mechanisms. The MC-PDOY22 Digital Output Module and MC-PDIY22 Digital Input Module in adjacent slots should be checked for contact wear and firmware integrity, as they often share the same backplane power distribution. The 51304453-150 Power Supply Module feeding the card cage should be load-tested and its output voltage verified — a sagging power rail is a common root cause of intermittent analog module faults that are misdiagnosed as module failures.

Field wiring integrity is equally important. The MC-TAMR03 Analog Redundancy Module and associated FTA (Field Termination Assembly) panels — particularly the 51304441-150 and 51304441-200 series FTAs — should be inspected for terminal corrosion, loose screw connections, and moisture ingress, all of which introduce offset errors and noise into low-level thermocouple and RTD circuits. If the plant uses signal isolators or signal conditioners between field devices and the FTA, these should be calibrated and verified during the same outage.

For plants running extended TDC 3000 systems with legacy Data Hiway or Local Control Network (LCN) communication modules, a concurrent inspection of the NIM (Network Interface Module) and HG (Highway Gateway) cards is advisable. Communication module degradation can manifest as sporadic analog data loss that mimics LLAI module faults, leading to unnecessary module swaps. Similarly, the UCN (Universal Control Network) interface cards and associated coaxial cable terminations should be checked for impedance continuity.

Finally, if the plant operates Honeywell HPM (High-Performance Process Manager) or PM (Process Manager) controllers in the same system, the controller’s I/O link health and the associated IOP (I/O Processor) cards should be verified. A degraded IOP can cause the MC-PLAM02 to report false channel faults even when the module itself is fully functional. Proactive replacement of aging IOP cards alongside the LLAI module eliminates this diagnostic ambiguity and restores full system confidence.

Strategic Replacement Solutions

The Honeywell TDC 3000 and TPS platforms have been in continuous industrial service for decades, and many plants face the challenge of maintaining these systems well beyond their original design life. OEM support timelines have contracted, and sourcing original spare modules through standard distribution channels has become increasingly difficult. The MC-PLAM02 51304362-150 is a prime example: it is no longer in active production, yet it remains essential to thousands of operating control loops worldwide.

Sourcing a verified original MC-PLAM02 from a specialist industrial spare parts supplier — rather than attempting field repair or substitution with incompatible third-party hardware — is the only approach that guarantees full compatibility with the TDC 3000 backplane protocol, the existing FTA wiring, and the system’s configuration database. A genuine replacement module can be hot-swapped into the card cage slot, recognized by the system controller, and brought online without requiring a control system reconfiguration or a process shutdown extension.

For plants managing a fleet of TDC 3000 or TPS systems across multiple units or sites, establishing a centralized critical spares inventory that includes at least one MC-PLAM02 51304362-150 per system — along with the associated power supply, FTA, and communication modules — is a proven strategy for reducing mean time to repair (MTTR) from days to hours. The cost of carrying this inventory is a fraction of the cost of a single unplanned process shutdown.

Every unit shipped from TOPNLMS undergoes functional verification testing prior to dispatch. Modules are inspected for physical integrity, board-level component condition, and connector pin quality. Each unit is shipped with anti-static packaging and is accompanied by a test report. The 12-month warranty covers functional failure under normal operating conditions from the date of shipment.

Support FAQ

Q1: Is the MC-PLAM02 51304362-150 compatible with both TDC 3000 and TPS systems?
Yes. The MC-PLAM02 with part number 51304362-150 is designed for use within the Honeywell TDC 3000 and TPS (Total Plant Solution) control system architecture. It is slot-compatible with the standard TDC 3000 card cage and communicates via the internal backplane bus. Always verify your system’s file type and slot assignment against the module’s hardware revision before installation.

Q2: How do I verify the module is functioning correctly after replacement?
After installing the MC-PLAM02 into the card cage, the system controller should automatically recognize the module and perform a self-diagnostic cycle. Verify that all configured analog input channels report valid engineering unit values within expected process ranges. Cross-check against a calibrated reference instrument on at least two channels. If any channel reports an out-of-range or fault condition, inspect the corresponding FTA terminal connections and field wiring before concluding the module is defective.

Q3: What is your recommended inventory strategy for this module?
For a single TDC 3000 or TPS system, we recommend maintaining a minimum of one MC-PLAM02 51304362-150 as a cold standby spare. For multi-unit or multi-site operations, a centralized pool of two to three units is advisable. Given the module’s end-of-production status, procurement lead times from the open market can be unpredictable — securing inventory proactively is strongly preferred over reactive emergency sourcing during an unplanned outage.

Q4: What does the 12-month warranty cover, and what is the shipping process?
The 12-month warranty covers functional failure of the module under normal DCS operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. All units are tested prior to shipment, packed in anti-static and cushioned packaging, and shipped with tracking. Express and priority shipping options are available for urgent maintenance requirements. For warranty claims or technical support, contact [email protected].
