HONEYWELL MC-PHAO01 51403476-150 Original Industrial Spare Experion PKS Compatible

Product Overview

HONEYWELL MC-PHAO01 51403476-150 Original Industrial Spare – Experion PKS System Stability Assured

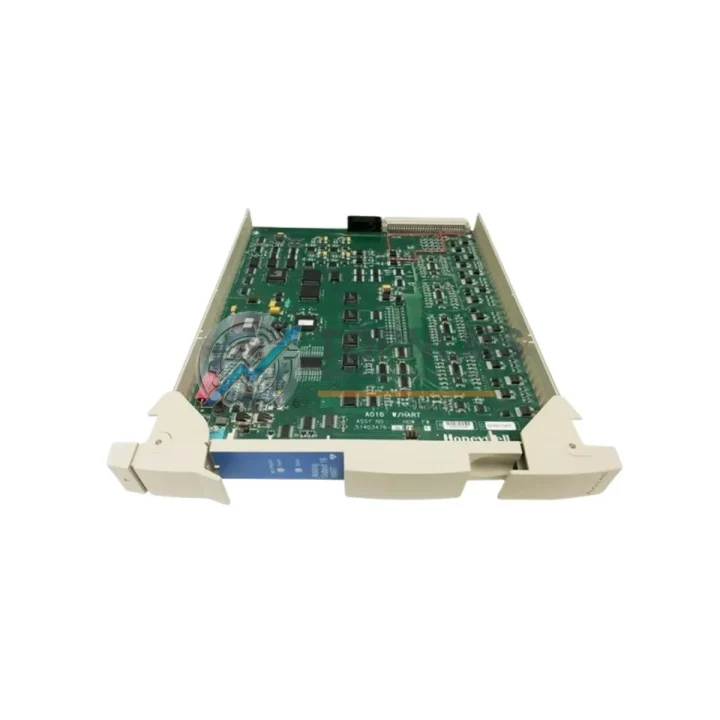

The HONEYWELL MC-PHAO01 (P/N 51403476-150) is a 16-channel HART-enabled analog output module engineered for the Experion PKS Distributed Control System platform. In process-critical environments — refining, petrochemical, power generation, and advanced manufacturing — this module serves as the backbone of field device communication, converting digital control signals into precise 4–20 mA outputs to drive control valves, positioners, and variable-speed drives. Sourcing an original, tested replacement unit is the single most effective action a maintenance team can take to eliminate unplanned downtime caused by aging or failed output channels.

At TOPNLMS, every MC-PHAO01 51403476-150 unit is individually inspected, function-tested across all 16 channels, and shipped with a 12-month warranty. Units are dispatched within 1–3 business days from verified stock, with full export documentation available for international shipments.

Critical Technical Specs

Preventive Maintenance Strategy

A failed analog output module rarely fails in isolation. In Experion PKS control cabinets, the MC-PHAO01 operates within a tightly integrated I/O subsystem, and a disciplined preventive maintenance program should treat the entire signal chain as a single reliability unit. When scheduling a planned outage or responding to a channel fault alarm, maintenance engineers should simultaneously inspect and — where service life warrants — replace the following components to avoid repeat call-outs:

Controller and Backplane: The MC-PHAO01 communicates through the Experion PKS I/O chassis backplane. Inspect the MC-PAIH02 16-Channel HART Analog Input Module installed in adjacent slots; input and output modules in the same loop often age at similar rates. Verify the CC-PAIH01 or CC-PAOH01 I/O Link cables connecting the I/O chassis to the C300 controller — cable degradation is a common source of intermittent channel faults that are misdiagnosed as module failures.

Power Distribution: The MC-PDOX01 or MC-PDOX02 Power Distribution Module supplying the I/O chassis should be checked for output voltage stability and capacitor aging. An under-voltage condition on the power rail will cause erratic 4–20 mA output behavior across all 16 channels simultaneously, mimicking a module fault. Keeping a spare power distribution module on the shelf alongside the MC-PHAO01 is standard practice in high-availability plants.

Field Termination and Signal Integrity: Inspect the MC-TAIH02 or MC-TAOH02 Field Termination Assembly (FTA) paired with this module. FTAs accumulate corrosion on terminal blocks and fuse holders over years of service. Replace blown or degraded FTA fuse modules and verify that all field wiring terminations are torqued to specification. Signal isolators — such as the Honeywell STT850 or equivalent DIN-rail signal conditioner — installed between the FTA and field devices should be tested for drift, particularly in high-vibration or high-humidity environments.

Communication and Redundancy: If the plant runs a redundant Experion PKS architecture, confirm that the redundancy module or switchover relay associated with this I/O chassis is functional. A latent redundancy failure means a single MC-PHAO01 fault becomes a full process trip rather than a bumpless switchover. Also verify the Experion PKS C300 Controller Module firmware version is compatible with the replacement MC-PHAO01 hardware revision.

HMI and Historian Validation: After module replacement, validate signal fidelity at the Experion PKS Station (operator HMI) by performing a loop check on all 16 channels. Confirm that the HART device descriptors for connected field instruments — positioners, I/P converters, and smart transmitters — are correctly re-commissioned through the Experion PKS Field Device Manager (FDM). This step is frequently skipped during emergency replacements and leads to calibration drift alarms weeks later.

Strategic Replacement Solutions

The MC-PHAO01 51403476-150 has been in service in Experion PKS installations since the mid-2000s. Many plants running Experion R400 through R501 environments are now encountering end-of-manufacturer-support timelines for original hardware. Sourcing original spare modules — rather than attempting field repair of failed units — is the most cost-effective strategy for three reasons:

First, zero reconfiguration overhead: an original MC-PHAO01 replacement is recognized immediately by the Experion PKS controller without requiring I/O configuration changes, tag reassignment, or controller download. Hot-swap replacement in a live chassis takes under 15 minutes for a trained technician, compared to days of engineering effort required to migrate to a different I/O platform.

Second, system compatibility assurance: original hardware maintains full HART pass-through capability, ensuring that all 16 field devices retain their digital communication paths for remote diagnostics, valve signature testing, and predictive maintenance data collection. Third-party or repaired modules frequently lose HART functionality on one or more channels, silently degrading the plant’s predictive maintenance capability.

Third, lifecycle extension economics: for plants with 5–10 years of remaining operational life before a full DCS migration, maintaining a buffer stock of 1–2 MC-PHAO01 units per control room cabinet is significantly cheaper than accelerating a migration project. At current market pricing, a single unplanned production outage caused by a failed output module costs multiples of the annual spare parts budget for an entire Experion PKS cabinet.

TOPNLMS maintains verified stock of MC-PHAO01 51403476-150 and related Experion PKS I/O modules, with same-week dispatch to most destinations and full export documentation for international buyers.
