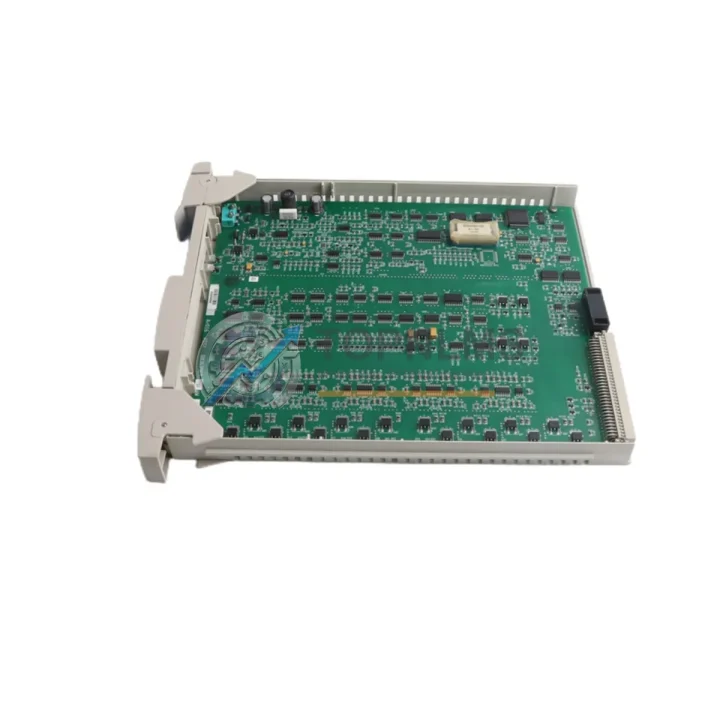

Honeywell MC-PAOY22 Ruggedized Analog Output Module

Product Overview

Honeywell MC-PAOY22 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

The Honeywell MC-PAOY22 is an 8-channel analog output module engineered for the Experion PKS Series C distributed control system (DCS) architecture. Designed to operate reliably in the most demanding industrial environments — including high-temperature process plants, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers precision signal output with the robustness that mission-critical infrastructure demands.

In continuous production environments where downtime is measured in tens of thousands of dollars per hour, the MC-PAOY22 provides the stable 4–20 mA analog output performance that process engineers and control system integrators depend on. Its compact form factor integrates seamlessly into the Experion PKS C300 controller cabinet, maintaining signal integrity even in the presence of strong electromagnetic interference (EMI) from adjacent variable frequency drives, high-voltage switchgear, and industrial motors.

TOPNLMS maintains verified stock of the MC-PAOY22, with each unit individually inspected and function-tested prior to dispatch. Orders are processed within 24 hours, with express international shipping available to support urgent plant maintenance and emergency spare-parts procurement.

Rugged Specifications Table

Comprehensive Protection Solutions

The MC-PAOY22 does not operate in isolation — it is one critical node in a broader Experion PKS control architecture. In a typical Series C cabinet installation, the module works in concert with the Honeywell C300 Process Controller, which handles the supervisory logic and communicates with the MC-PAOY22 over the Fault Tolerant Ethernet (FTE) backplane. Redundant power is typically supplied by the Honeywell MC-PDOX02 Power Distribution Module, ensuring that a single power supply fault does not interrupt analog output signals to field devices.

On the input side, the Honeywell MC-PAIH02 8-Channel Analog Input Module and MC-PDIY22 Digital Input Module are commonly deployed alongside the MC-PAOY22 to form a complete I/O subsystem. For digital output control — such as driving solenoid valves, motor starters, or relay coils — the MC-PDOY22 Digital Output Module complements the analog output capabilities of the MC-PAOY22 within the same chassis.

In hazardous area installations, the MC-PAOY22 is frequently paired with Honeywell Safety Manager SC safety controllers and Zener barrier or galvanic isolator assemblies to maintain intrinsic safety (IS) compliance for Zone 1 and Zone 2 classified areas. Communication integrity across the plant network is maintained through the Honeywell FTE Switch infrastructure, which provides redundant Ethernet paths between the Experion server, the C300 controllers, and the I/O modules.

For facilities managing legacy migration projects, the MC-PAOY22 is also compatible with Honeywell TDC 3000 to Experion PKS migration kits, allowing engineers to reuse existing field wiring while upgrading the control layer. Terminal block assemblies and marshalling cabinets from the Honeywell MC-TAIH02 and MC-TAOY22 series provide the field termination interface, reducing installation time and wiring errors in brownfield projects.

Application in Critical Infrastructure

The Honeywell MC-PAOY22 is deployed across the full spectrum of process industries where continuous, reliable analog output is non-negotiable.

In oil and gas upstream and midstream facilities — including offshore platforms, onshore gas compression stations, and pipeline SCADA systems — the MC-PAOY22 drives control valves, flow control loops, and pressure regulation systems. Its resistance to salt-laden humid air and wide operating temperature range make it suitable for both tropical offshore environments and arctic onshore installations.

In petrochemical and refinery operations, the module controls distillation column reflux ratios, reactor feed rates, and heat exchanger bypass valves. The precision of its 12-bit D/A output ensures tight process control, directly contributing to product quality and yield optimization.

Power generation plants — including coal-fired, gas turbine, and combined-cycle facilities — rely on the MC-PAOY22 for boiler combustion control, turbine governor signal output, and feedwater flow regulation. In these environments, the module must withstand significant vibration from rotating machinery and strong EMI from high-voltage bus bars and transformer banks.

In mining and mineral processing, the MC-PAOY22 controls conveyor speed references via VFD analog inputs, flotation cell reagent dosing pumps, and crusher feed rate controllers. Dust ingress and mechanical shock are constant challenges in these environments, and the module’s robust construction ensures long mean time between failures (MTBF).

Water and wastewater treatment plants use the MC-PAOY22 to modulate chemical dosing pumps, aeration blower speed references, and filter backwash valve positioners. Municipal utilities and industrial effluent treatment facilities alike benefit from the module’s long-term stability and low drift characteristics.

In metallurgical and steel production facilities, where furnace temperatures exceed 1,600°C and the control room environment itself may reach 50°C ambient, the MC-PAOY22’s rated operating range and thermal design provide the margin needed for continuous 24/7 operation without derating.
