Honeywell MC-PAIH03 51304754-150 Original Spare Experion PKS

Product Overview

Honeywell MC-PAIH03 51304754-150 Original Spare Experion PKS: System Stability & Industrial Maintenance Value

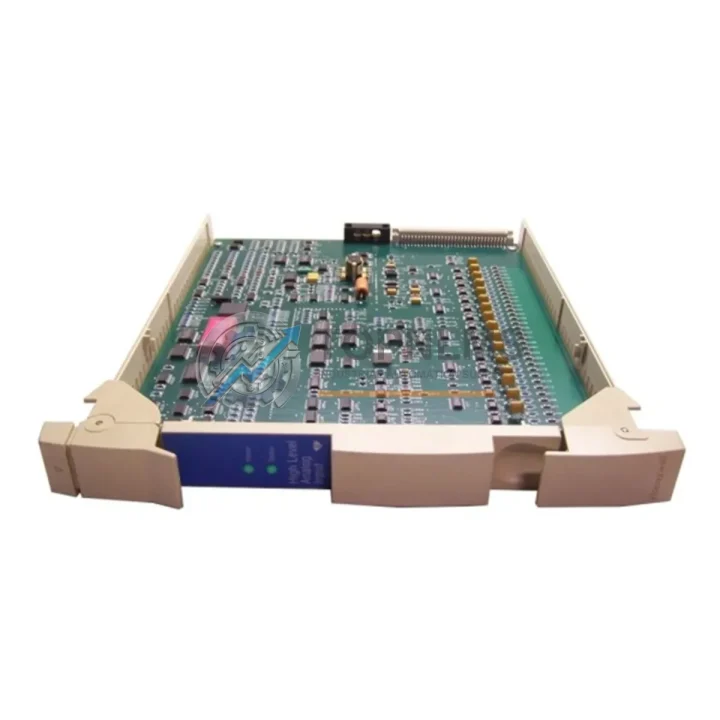

The Honeywell MC-PAIH03 (part number 51304754-150) is an original 8-channel analog input module engineered for the Experion PKS distributed control system platform. In process industries — including oil & gas, petrochemical, power generation, and advanced manufacturing — the integrity of analog signal acquisition is foundational to safe and efficient plant operation. When an analog input module fails or degrades, the consequences extend far beyond a single loop: entire process trains can be forced offline, safety interlocks may trigger spurious shutdowns, and maintenance teams face intense pressure to restore normal operation within tight maintenance windows.

Stocking a verified original MC-PAIH03 51304754-150 as a ready spare is one of the most cost-effective decisions a reliability engineer or maintenance planner can make. The module slots directly into the Experion PKS C200/C300 controller chassis without firmware reconfiguration, preserving your existing I/O mapping and loop tuning parameters. This plug-and-play compatibility dramatically reduces mean time to repair (MTTR) and eliminates the risk of configuration errors during emergency replacement.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that analog input module failures rarely occur in isolation. The MC-PAIH03 operates within a tightly coupled signal chain: field transmitters feed 4–20 mA signals through marshalling cabinets, terminal blocks, and signal cables before reaching the module’s input terminals. During any scheduled outage or corrective maintenance event involving the MC-PAIH03, it is best practice to simultaneously inspect the entire upstream and downstream signal path to prevent repeat failures and maximize the value of each maintenance window.

Begin with the field wiring and termination assemblies. Corroded or loose connections on I/O termination assemblies — such as the Honeywell MC-TAIH12 termination panel — are a leading cause of intermittent analog signal faults that are frequently misdiagnosed as module failures. Inspect and torque all terminal screws, verify cable shield grounding continuity, and replace any discolored or heat-stressed wiring before reinstalling the replacement module.

Next, evaluate the power supply feeding the I/O chassis. The Honeywell MC-PDOX02 and MC-PDOX03 power supply modules are common companions in Experion PKS cabinets. A degraded power supply with marginal output voltage can cause erratic ADC readings across all channels of an analog input module, mimicking hardware failure. Replacing a borderline power supply module during the same maintenance window prevents a second unplanned outage weeks later and is a standard recommendation in Honeywell’s preventive maintenance guidelines.

Communication integrity is equally critical. The Experion PKS FTE network relies on redundant Ethernet infrastructure and the C300 controller’s FTE ports. If the MC-PAIH03 replacement is triggered by communication loss rather than signal degradation, inspect the FTE managed switch (e.g., Honeywell CC-TCF901) and verify fiber or copper patch connections to the controller chassis. A faulty FTE switch can cause an entire I/O cluster to appear offline, leading to unnecessary module replacements.

For facilities running mixed I/O architectures, this is also an appropriate time to audit adjacent modules installed in the same chassis. The MC-PAOH02 8-channel analog output module and digital I/O modules such as the MC-PDIY22 and MC-PDOY22 share the same backplane and are subject to identical environmental stressors — heat, vibration, and power transients. A proactive inspection of these modules can identify early signs of capacitor aging or connector wear before they cause process disruptions.

Signal isolators and barriers installed between field instruments and the I/O module — particularly in hazardous area installations — should also be verified during the same maintenance event. Zener barriers or galvanic isolators (such as the P+F KFD2-STC4-Ex1 series or equivalent HART-compatible isolators) can drift over time, introducing offset errors that appear as analog input inaccuracies. Replacing aging isolators alongside the MC-PAIH03 ensures the entire measurement chain is restored to specification and eliminates residual uncertainty in loop calibration.

Finally, review the Experion PKS controller firmware version and I/O module firmware compatibility matrix. Honeywell periodically releases firmware updates for C200/C300 controllers and associated I/O modules. Confirming that the replacement MC-PAIH03 51304754-150 is compatible with your installed controller firmware revision — and updating if necessary — prevents post-replacement communication faults and ensures full feature support across the EPKS platform.

Strategic Replacement Solutions

The MC-PAIH03 51304754-150 is a direct original replacement for aging or failed analog input modules in Experion PKS systems that may have been in continuous service for 10–20 years. Many plants operating legacy EPKS R310 or R400 installations face the challenge of sourcing original spare parts as Honeywell transitions its support lifecycle. Substituting with non-original or counterfeit modules introduces calibration uncertainty, firmware incompatibility, and potential safety risks — none of which are acceptable in a regulated process environment.

By sourcing an original MC-PAIH03 from a verified industrial spare parts supplier, maintenance teams can execute a like-for-like replacement in under 30 minutes: power down the I/O chassis slot (hot-swap capable in redundant configurations), extract the failed module, insert the replacement, and confirm channel status in Experion Station. No re-engineering, no loop recalibration, and no extended commissioning — the system recognizes the module automatically and restores normal operation.

For plants managing end-of-life Experion PKS systems with no near-term migration budget, maintaining a strategic inventory of 1–2 MC-PAIH03 spares per critical process unit is a proven approach to extending system life by 5–10 years without capital expenditure. Combined with a documented spare parts register and annual condition monitoring of installed modules — including periodic checks of the C300 controller module (CC-PCF901) and associated Experion PKS I/O chassis backplane — this strategy delivers measurable reductions in unplanned downtime and maintenance labor costs.

Every unit supplied by TOPNLMS is sourced from verified original channels, individually powered on, and subjected to full functional verification of all 8 analog input channels before shipment. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, with test documentation available upon request. Worldwide shipping is available with DHL Express, FedEx, and UPS, with typical lead times of 3–7 business days to major industrial hubs.

Support FAQ

Q1: Is the MC-PAIH03 51304754-150 compatible with all Experion PKS controller revisions?
The MC-PAIH03 51304754-150 is compatible with Experion PKS C200 and C300 controller platforms running EPKS R310 through R520 and later. For installations running earlier firmware, a controller firmware update may be required prior to module replacement. We recommend verifying your controller revision against Honeywell’s I/O compatibility matrix before ordering.

Q2: How is the module tested before shipment?
Every MC-PAIH03 unit is powered on and subjected to functional verification of all 8 analog input channels prior to shipment. Channel-to-channel isolation, ADC resolution, and communication bus handshake are confirmed. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended spare parts inventory strategy for Experion PKS sites?
For critical process units, we recommend maintaining at least one MC-PAIH03 spare per 4–6 installed modules. Sites with 24/7 continuous operation and no redundant I/O should consider a 1:3 spare ratio. Spares should be stored in anti-static packaging in a climate-controlled environment and rotated into service on a 5-year cycle to prevent storage-related degradation.

Q4: Can the MC-PAIH03 be replaced while the Experion PKS system is online?
In Experion PKS configurations with redundant I/O modules, the MC-PAIH03 supports hot-swap replacement without process interruption. In non-redundant configurations, the affected I/O channels must be placed in manual control or bypassed at the DCS level before module extraction. Always follow your site’s Management of Change (MOC) and Permit to Work (PTW) procedures before performing any live I/O replacement.
