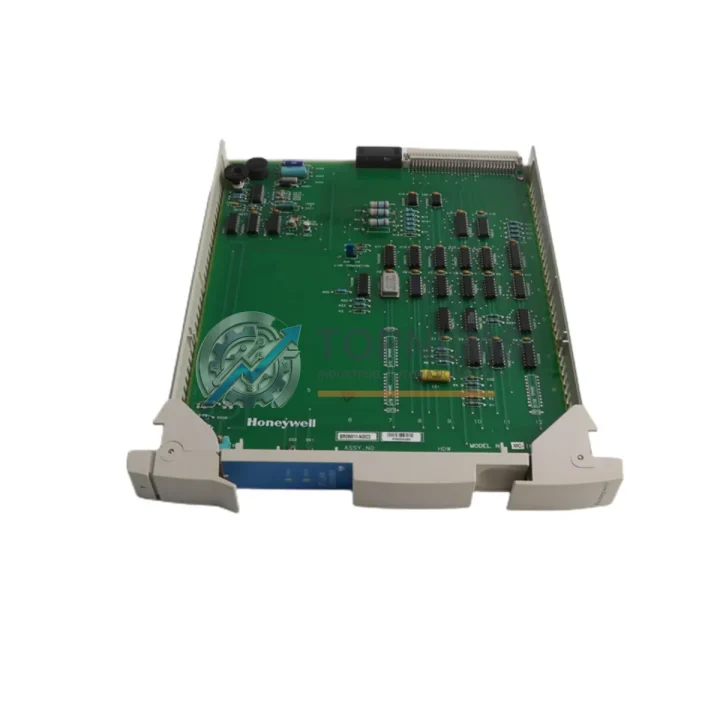

Honeywell MC-IOLX02 51304419-150 I/O Link Extender Upgrade

Product Overview

Honeywell MC-IOLX02 51304419-150 I/O Link Extender Upgrade: Seamless Transition from Legacy Experion PKS Systems

The Honeywell MC-IOLX02 (part number 51304419-150) is a critical I/O Link Extender Card designed for the Experion PKS C300 Controller platform. As aging DCS installations approach end-of-support milestones, facilities running earlier-generation Honeywell TDC 3000, PlantScape, or first-generation Experion R100–R300 architectures increasingly face the challenge of sourcing reliable replacement modules without triggering a full system overhaul. The MC-IOLX02 51304419-150 provides a validated, wiring-compatible upgrade path that preserves existing field termination assemblies, cabinet layouts, and control strategies while restoring full I/O Link communication integrity.

In a typical migration scenario, a plant running a legacy C200 Controller with MC-PAIH03 analog input modules and MC-PDOX02 digital output modules will find that the I/O Link backbone — the high-speed serial bus connecting the controller to distributed I/O — is the first subsystem to exhibit intermittent faults as connectors age and firmware diverges. Replacing the I/O Link Extender Card with a fresh MC-IOLX02 51304419-150 restores deterministic scan times and eliminates the nuisance trips that cascade into unplanned shutdowns. Because the module slots directly into the standard C300 I/O Link chassis without requiring re-termination of the MC-TAIH04 or MC-TDOX02 field termination assemblies, installation downtime is typically measured in minutes rather than hours.

For sites upgrading from a TDC 3000 High-Performance Process Manager (HPPM) to a modern Experion PKS C300 architecture, the MC-IOLX02 serves as the communication bridge that allows the new controller to address legacy Series C I/O modules during a phased cutover. Engineers can maintain the existing 24 VDC power distribution from the MC-PWRJ01 power junction box, retain the existing shielded twisted-pair I/O Link cabling, and continue executing the same Continuous Control Language (CCL) or Function Block logic exported from the legacy system — dramatically reducing re-engineering cost and commissioning risk.

Communication protocol compatibility is a frequent concern during DCS modernization. The MC-IOLX02 51304419-150 supports the proprietary Honeywell I/O Link protocol natively, ensuring full interoperability with C300 Controller firmware R500 and above. Sites that have already migrated their supervisory layer to Experion PKS R510 or R511 and are running OPC DA or OPC UA data highways to historian platforms such as Honeywell Uniformance PHD will find that the extender card integrates without requiring gateway reconfiguration. The module also coexists with FOUNDATION Fieldbus H1 segments and HART pass-through enabled on MC-PAIH03 analog modules, preserving instrument diagnostics across the upgrade boundary.

Physical installation is straightforward. The MC-IOLX02 occupies a single slot in the standard Honeywell I/O Link chassis and draws power from the chassis backplane, eliminating the need for a dedicated external supply. Cabinet space requirements are identical to the outgoing module, which is particularly important in brownfield projects where control room real estate is constrained. The module’s front-panel LED indicators — I/O Link Active, Fault, and Power — provide immediate visual confirmation of communication status during commissioning, reducing the need for laptop-based diagnostics in the initial power-up sequence.

Procurement teams evaluating this replacement should note that the MC-IOLX02 51304419-150 ships fully tested against Honeywell factory acceptance criteria. Each unit undergoes functional verification of I/O Link transmit and receive paths, backplane power draw, and firmware revision compatibility before dispatch. Units are packaged in ESD-protective anti-static bags with foam-lined cartons rated for international air freight, ensuring the module arrives in field-ready condition regardless of shipping distance.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Experion PKS C300 migration rarely involves a single module swap. In practice, the MC-IOLX02 51304419-150 is deployed alongside a coordinated set of components to ensure the entire I/O subsystem transitions cleanly. The C300 Controller module itself — typically the MC-CONT02 or MC-CONT03 — provides the processing backbone and must be confirmed at a compatible firmware revision before the extender card is installed. Analog input channels previously served by legacy HPPM I/O cards are re-homed to MC-PAIH03 8-channel analog input modules, which retain the same 4–20 mA field wiring and support HART revision 5/6/7 pass-through for smart instrument diagnostics.

Digital output control — motor starters, solenoid valves, and on/off actuators — migrates to MC-PDOX02 digital output modules without requiring changes to the field junction boxes. Power integrity across the upgraded chassis is maintained by the MC-PWRJ01 power junction and redundant 24 VDC power supplies, which should be inspected and replaced if they are more than seven years old to avoid nuisance power faults masking as I/O Link errors. For sites requiring serial device integration — legacy flow computers, weigh scales, or third-party RTUs — the MC-COMM03 serial communication module provides RS-232/RS-485 connectivity within the C300 chassis, eliminating the need for external protocol converters.

Where the control strategy includes Profibus DP field devices such as variable frequency drives or intelligent valve positioners, the MC-PDPM11 Profibus DP master module integrates directly into the C300 I/O Link architecture, allowing the MC-IOLX02 extender to bridge both native I/O and fieldbus segments under a single controller scan. HMI continuity is preserved by retaining the existing Experion Station operator consoles, which communicate over the Fault Tolerant Ethernet (FTE) supervisory network and require no modification when the I/O subsystem is upgraded. Engineering workstations running Experion Control Builder can download revised control strategies to the C300 Controller via the same FTE network, enabling online program updates without a process shutdown.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing the I/O Link Extender Card?
A: Yes. The MC-IOLX02 51304419-150 connects to the I/O Link chassis backplane and does not interface directly with field wiring. All field terminations remain on the MC-TAIH04 or MC-TDOX02 field termination assemblies, which are retained unchanged.

Q: Do I need to update the C300 Controller firmware before installing this module?
A: The MC-IOLX02 51304419-150 requires Experion PKS R500 or higher on the C300 Controller. If your system is running R400 or earlier, a firmware upgrade should be planned as part of the migration project.

Q: Will my existing Function Block or CCL control strategy run without modification?
A: In most cases, yes. Control strategies exported from C200 or legacy HPPM systems can be imported into Experion Control Builder with minor address remapping. The I/O Link Extender Card itself is transparent to the control strategy — it is a communication infrastructure component, not a logic-bearing module.

Q: How do I verify communication is established after installation?
A: The MC-IOLX02 front-panel I/O Link Active LED will illuminate green when the extender has established a valid link with the C300 Controller. The Experion Station system display will show the I/O Link segment status as “Normal” within one controller scan cycle (typically 500 ms).

Q: Is the module compatible with redundant C300 Controller configurations?
A: Yes. The MC-IOLX02 supports both simplex and redundant C300 Controller pairs. In a redundant configuration, the extender card communicates with the primary controller and automatically switches to the secondary upon a primary fault without requiring manual intervention.

Q: What is the lead time and shipping method?
A: Units in stock ship within 1–3 business days from Xiamen, China via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Estimated transit time to most destinations is 3–7 business days. Express same-day dispatch is available for orders confirmed before 14:00 CST.

Warranty Assurance

Every MC-IOLX02 51304419-150 supplied by TOPNLMS is backed by a 12-Month Warranty covering manufacturing defects, communication failures, and backplane interface faults. Prior to dispatch, each unit undergoes a structured pre-shipment inspection that includes visual inspection for physical damage, functional verification of I/O Link transmit and receive paths, backplane power consumption measurement, and firmware revision confirmation. Units that do not pass all inspection criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides advance replacement support — a verified replacement unit is dispatched before the faulty module is returned, minimizing process downtime. Return freight for warranty claims is covered by TOPNLMS for destinations within mainland China; international customers are responsible for outbound return freight, with TOPNLMS covering inbound replacement shipping. Warranty claims are acknowledged within 24 business hours and resolved within 5–10 business days depending on logistics routing.

For procurement teams requiring documentation, TOPNLMS can provide a Certificate of Conformance, pre-shipment inspection report, and packing list with each order. Long-term supply agreements and blanket purchase orders are supported for MRO and capital project procurement programs.
