Honeywell MC-GHAO11 51309540-175 Original Industrial Spare Experion PKS Compatible

Product Overview

Honeywell MC-GHAO11 51309540-175 Original Industrial Spare – Experion PKS System Stability & Reliable HART Analog Output

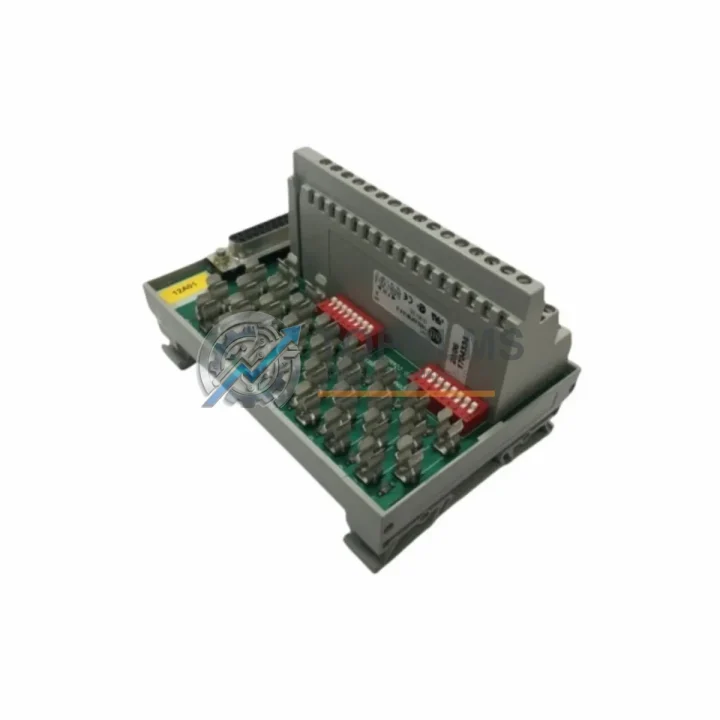

The Honeywell MC-GHAO11 (P/N 51309540-175) is an original 8-channel HART Analog Output Module designed for the Honeywell Experion PKS distributed control system. In process-critical environments — refineries, chemical plants, power generation facilities, and large-scale manufacturing operations — this module serves as the backbone of field device communication, converting digital control signals from the C300 Controller into precise 4–20 mA HART outputs that drive control valves, positioners, variable-speed drives, and other final control elements.

When a plant faces an unplanned shutdown due to a failed analog output channel, every hour of downtime translates directly into production loss and safety risk. Holding a verified original MC-GHAO11 in your maintenance inventory is one of the most cost-effective decisions a reliability engineer can make. This module ships fully tested, with all 8 channels verified against Honeywell factory specifications, and is backed by a 12-month warranty.

Critical Technical Specs

Preventive Maintenance Strategy for Experion PKS Analog Output Systems

A structured preventive maintenance program for any Experion PKS installation should treat the MC-GHAO11 as part of a broader ecosystem of interdependent components. When scheduling a planned outage or conducting a control cabinet inspection, experienced maintenance teams know that replacing or verifying one module in isolation rarely captures the full picture of system health.

During a routine inspection of the analog output loop, it is equally important to verify the condition of the MC-TAOX11 / MC-TAOY11 IOTA termination assemblies that interface the MC-GHAO11 to field wiring. Corroded or loose terminal connections on the IOTA are a leading cause of intermittent output faults that are often misdiagnosed as module failures. At the same time, inspect the MC-PAOX01 field termination assembly cables connecting the I/O module carrier to the marshalling cabinet — cable insulation degradation in high-temperature environments is a common but overlooked failure mode.

The C300 Controller module (MC-CONT03 / 51309276-175) that governs the MC-GHAO11 should also be on your inspection checklist. A controller running near its CPU utilization ceiling can introduce latency in analog output updates, which in turn affects valve positioning accuracy in tight control loops. If your plant is running an older EPKS revision, consider whether a C300 firmware upgrade or a controller redundancy pair refresh is overdue.

Power integrity is another critical dimension. The Experion PKS Power Supply modules (MC-PDPY22 / 51309512-175) feeding the I/O chassis should be load-tested during any planned shutdown. A power supply operating at the edge of its rated capacity will cause subtle voltage sags that manifest as analog output drift — a fault that is notoriously difficult to trace without proper power quality logging. Redundant power supply pairs should be checked for proper load-sharing and automatic switchover function.

For plants using HART pass-through for asset management via Honeywell’s Field Device Manager (FDM) or third-party HART multiplexers, verify that the HART communication path from the MC-GHAO11 through to the asset management server is intact. HART modem modules and HART signal conditioners / isolators in the marshalling cabinet are often overlooked during routine maintenance but are essential for maintaining the digital diagnostic channel that makes predictive maintenance possible.

Additionally, during any control cabinet walkthrough, inspect the Experion PKS I/O Link Interface modules (MC-PLIM11) that connect remote I/O cabinets to the main controller network. A degraded fiber or copper I/O Link connection can cause entire I/O chassis to drop offline, taking multiple MC-GHAO11 modules with them. Keeping a spare MC-PLIM11 alongside your MC-GHAO11 inventory is a prudent strategy for plants with distributed I/O architectures.

Finally, do not overlook the Experion PKS chassis / I/O carrier assemblies themselves. Backplane connector wear after years of module insertions and removals can cause intermittent contact faults. If your plant has been operating the same chassis for over a decade, a chassis replacement during a major turnaround should be evaluated as part of your long-term asset lifecycle plan.

Strategic Replacement Solutions

The MC-GHAO11 (51309540-175) is a direct drop-in replacement for earlier Honeywell Experion PKS analog output modules used in legacy TDC 3000 migration projects and early EPKS R110/R200 installations. Plants that originally deployed the MC-GHAO01 (non-HART version) and have since upgraded their field devices to HART-capable instruments will find the MC-GHAO11 a straightforward upgrade path — same form factor, same carrier mounting, same backplane interface, with the addition of full HART 5/6 digital communication capability.

For maintenance teams managing aging Experion PKS systems where original spare parts are becoming harder to source through standard distribution channels, securing a verified original MC-GHAO11 from a specialist industrial spare parts supplier is significantly more cost-effective than pursuing a full I/O subsystem upgrade. The module’s compatibility with all EPKS software revisions from R310 onward means it can be installed without any controller reconfiguration, minimizing the risk of introducing new faults during a replacement procedure.

Typical field replacement time for a trained technician is under 15 minutes: power down the I/O carrier (or use hot-swap if your system configuration permits), remove the faulty module, insert the replacement MC-GHAO11, and verify channel outputs against the control system’s faceplate displays. No re-parameterization is required if the replacement module is of the same revision level. All channel configurations are stored in the C300 Controller’s database and are automatically downloaded to the new module upon insertion.

This rapid replacement capability is precisely why maintaining at least one MC-GHAO11 in your on-site spare parts inventory is a best practice endorsed by Honeywell’s own maintenance guidelines. The cost of a single unplanned shutdown event in a process plant invariably exceeds the cost of maintaining a comprehensive spare parts buffer by orders of magnitude.

Support FAQ

Q1: Is the MC-GHAO11 (51309540-175) compatible with all Experion PKS software revisions?
The MC-GHAO11 is compatible with Experion PKS R310 and all subsequent revisions through R500+. For installations running pre-R310 software, a firmware compatibility check is recommended before installation. Contact our technical team with your current EPKS revision number for confirmation.

Q2: How is the module tested before shipment?
Every MC-GHAO11 unit undergoes a full functional test covering all 8 analog output channels, HART communication integrity, backplane interface continuity, and isolation resistance verification. Test records are available upon request. The module is shipped in anti-static packaging with a 12-month warranty certificate.

Q3: Can this module be used as a hot-swap replacement without shutting down the controller?
Hot-swap capability depends on your specific Experion PKS system configuration and the I/O carrier type in use. Standard Experion PKS I/O carriers support module hot-swap when the system is configured for redundant I/O. For non-redundant configurations, a controlled channel inhibit procedure is recommended before module removal to prevent spurious output signals to field devices.

Q4: What is the warranty coverage and what does it include?
All MC-GHAO11 modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days, with replacement units dispatched upon fault confirmation.
