Honeywell GH1000IOA003-G Replacement for GH1000 Series

Product Overview

Honeywell GH1000IOA003-G Replacement for GH1000 Series: Seamless Transition to Modern Process Control

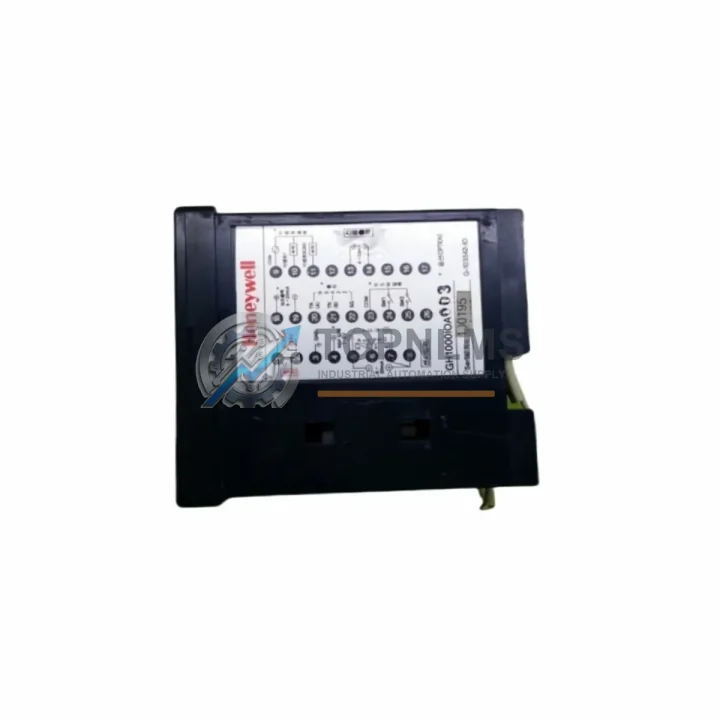

The Honeywell GH1000IOA003-G is a dedicated I/O analog output module within the GH1000 Series PID temperature control platform. As legacy GH1000 installations approach end-of-life or face discontinued spare-parts availability, plant engineers and procurement teams are increasingly seeking verified replacement and upgrade pathways that preserve existing wiring infrastructure, minimize engineering rework, and eliminate unplanned downtime. TOPNLMS supplies the GH1000IOA003-G as a direct replacement module, fully tested and shipped from Xiamen with a 12-month warranty, supporting both like-for-like swap-outs and structured migration projects.

The GH1000 Series was widely deployed in pharmaceutical batch processing, food and beverage pasteurization lines, chemical reactor temperature loops, and HVAC plant rooms. Many of these installations share a common control cabinet architecture: a GH1000 base unit paired with analog I/O expansion modules such as the GH1000IOA003-G, communicating over RS-485 Modbus RTU to a supervisory SCADA or DCS layer. When the GH1000IOA003-G fails or becomes unavailable through standard distribution channels, the entire temperature control loop is at risk — a situation that demands a fast, specification-accurate replacement rather than a full system redesign.

For sites running a mixed Honeywell environment — for example, where the GH1000 coexists with HC900 hybrid controllers or UDC2800 universal digital controllers — the GH1000IOA003-G replacement can be integrated without disrupting adjacent control loops. The module’s analog output signal range (typically 4–20 mA or 0–10 V, depending on configuration) is compatible with most downstream actuators, including pneumatic valve positioners, variable frequency drives, and electric heater SCR controllers already installed in the field.

Wiring compatibility is a primary concern during any replacement project. The GH1000IOA003-G uses a standard screw-terminal block arrangement consistent across the GH1000 Series, meaning field wiring from existing thermocouple transmitters, RTD signal conditioners, or 4–20 mA process transmitters can be reconnected to the replacement module without re-labeling or re-routing cable trays. Engineers familiar with the GH1000 base unit’s DIN-rail mounting and snap-fit module attachment will find the physical installation process identical to the original.

From a communications perspective, the GH1000IOA003-G operates as a slave node on the GH1000 base unit’s internal bus. No changes to the Modbus RTU register map or SCADA tag database are required when performing a like-for-like replacement. For sites migrating from an older GH1000 firmware revision, TOPNLMS can advise on firmware compatibility and configuration backup procedures using the Honeywell GH1000 configuration software, ensuring that PID tuning parameters, setpoint profiles, and alarm thresholds are preserved across the swap.

In upgrade scenarios — where the goal is not merely to restore function but to improve system capability — the GH1000IOA003-G replacement can serve as the foundation for a phased modernization. A common approach is to retain the GH1000 base unit and replace only the failed I/O module, then progressively introduce supplementary components such as a GH1000 communications gateway module for Ethernet/IP or PROFIBUS connectivity, enabling integration with newer MES or historian platforms without replacing the entire control panel. This approach is particularly cost-effective in multi-loop installations where the GH1000 base unit and associated power supply module remain serviceable.

For control cabinets where physical space is constrained, the GH1000IOA003-G’s compact form factor — consistent with the GH1000 Series modular design — ensures that no panel modifications are required. This is especially relevant in skid-mounted systems or retrofit projects where the original cabinet dimensions cannot be altered. The module slots directly into the existing GH1000 rack without requiring additional mounting hardware or DIN-rail extensions.

Procurement teams evaluating this replacement should note that TOPNLMS maintains stock of GH1000 Series components including the GH1000IOA003-G and related I/O modules, sourced through verified industrial distribution channels. Each unit undergoes functional testing prior to dispatch. Orders are processed within 1–2 business days, with international express shipping available to minimize plant downtime. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, with direct technical support available via email and phone for installation and commissioning queries.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful GH1000IOA003-G replacement rarely occurs in isolation. In most field scenarios, the module is part of a broader GH1000 control architecture that may include the GH1000 base controller unit, a dedicated GH1000 power supply module providing regulated 24 VDC to the I/O bus, and one or more GH1000 analog input modules (such as the GH1000IIA series) handling thermocouple or RTD signals from the process. When replacing the GH1000IOA003-G, it is prudent to inspect these adjacent components for wear or firmware currency.

For sites integrating the GH1000 into a wider plant network, a GH1000 Ethernet communications module or a third-party Modbus TCP gateway can bridge the existing RS-485 loop to a modern DCS historian or SCADA platform — eliminating the need to replace the entire temperature control panel. In multi-zone installations, the GH1000IOA003-G replacement is often accompanied by recalibration of associated signal isolators or loop-powered transmitter barriers, particularly where 4–20 mA signal integrity has degraded over years of operation.

Where the GH1000 installation is part of a larger Honeywell ecosystem — for example, co-located with Honeywell HC900 process controllers or Honeywell UDC3200 single-loop controllers managing adjacent process variables — the GH1000IOA003-G replacement can be coordinated with a broader spare-parts audit. TOPNLMS stocks a range of Honeywell GH1000 Series components and can support multi-line procurement orders, reducing logistics complexity and consolidating warranty coverage under a single supplier relationship. For panel builders undertaking a full retrofit, complementary items such as DIN-rail terminal blocks, cable ferrules, and panel-mount Ethernet switches are commonly ordered alongside the GH1000IOA003-G to complete the upgrade bill of materials.

Retrofit Guidance FAQ

Q: Can I replace the GH1000IOA003-G without rewiring the field cables?
A: Yes. The replacement module uses the same screw-terminal block pinout as the original GH1000IOA003-G. Field wiring from transmitters, actuators, and signal conditioners can be reconnected directly without modification.

Q: Will my existing PID tuning parameters and setpoints be retained?
A: PID parameters are stored in the GH1000 base unit’s non-volatile memory, not in the I/O module itself. Replacing the GH1000IOA003-G does not affect stored tuning data. We recommend backing up the configuration via the GH1000 configuration software before any module swap as a precaution.

Q: Is the Modbus RTU register map identical to the original module?
A: Yes. The replacement GH1000IOA003-G maintains full register-map compatibility with the original. No changes to SCADA tags, HMI screens, or PLC communication blocks are required.

Q: Does the replacement module fit the existing GH1000 rack without panel modifications?
A: Yes. The module uses the standard GH1000 Series snap-fit DIN-rail mounting. No additional hardware, spacers, or panel cutouts are needed.

Q: What communications protocols does the GH1000IOA003-G support?
A: The module communicates via the GH1000 internal I/O bus, with the base unit supporting Modbus RTU over RS-485 for upstream SCADA or DCS connectivity. For Ethernet/IP or PROFIBUS integration, a compatible GH1000 communications gateway module is required.

Q: How long does commissioning take after installation?
A: For a like-for-like replacement with no configuration changes, commissioning typically takes under 30 minutes — covering physical installation, wiring reconnection, power-up verification, and output signal loop check. TOPNLMS technical support is available via email and phone during the commissioning process.

Warranty Assurance

Every GH1000IOA003-G unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional testing to verify analog output signal accuracy, terminal block integrity, and internal bus communication. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides direct replacement support with a target response time of 1 business day. Defective units are replaced at no additional cost, including outbound shipping for verified warranty cases. Our after-sales team — reachable at [email protected] or +86 18359293191 — provides technical assistance for installation, commissioning, and fault diagnosis throughout the warranty period.

For procurement teams requiring documentation, TOPNLMS can provide test reports, packing lists, and commercial invoices to support incoming inspection and ERP receiving processes. Bulk orders and standing purchase agreements are accommodated with agreed lead times and consolidated shipment scheduling.
