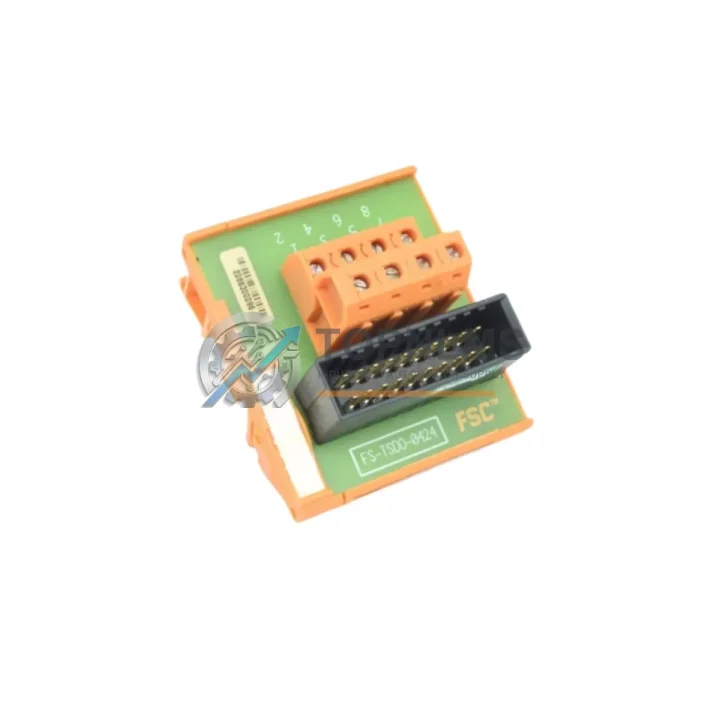

Honeywell FS-TSDO-0824 Original Industrial Spare Safety Manager Compatible

Product Overview

Honeywell FS-TSDO-0824 Original Industrial Spare Safety Manager Compatible: Ensuring System Stability in Safety-Critical Environments

The Honeywell FS-TSDO-0824 is an original Safety Manager Series Safe Digital Output (DO) module designed for SIL 2-rated safety instrumented systems (SIS) in process industries including oil & gas, petrochemical, power generation, and advanced manufacturing. As a direct replacement spare for aging Safety Manager cabinets, this module maintains full hardware and firmware compatibility with the existing safety architecture — eliminating the need for costly system re-engineering or re-validation during unplanned shutdowns.

Sourced from verified original supply channels, every FS-TSDO-0824 unit dispatched by TOPNLMS undergoes pre-shipment functional testing, covering output channel integrity, diagnostic coverage verification, and communication handshake with the Safety Manager controller. The module ships with a 12-month warranty and full traceability documentation, supporting your site’s maintenance records and audit requirements.

Critical Technical Specs

Preventive Maintenance Strategy for Safety Manager Systems

In safety instrumented systems, the digital output module is the final command executor — it drives solenoid valves, motor contactors, and shutdown relays that physically enforce the safe state. A degraded or failed FS-TSDO-0824 can compromise the entire safety function, making proactive spare management essential rather than optional.

When scheduling a planned inspection or turnaround for a Safety Manager cabinet, maintenance teams should treat the DO module replacement as part of a broader system health review. The FS-TSDO-0824 interfaces directly with the Safety Manager controller module (such as the FS-TSC-0001 or FS-TSC-0002 controller cards), and any output anomaly should prompt a simultaneous check of the associated FS-TSAI-0808 analog input module and FS-TSDI-0824 digital input module to rule out upstream signal faults before condemning the output card.

Power integrity is equally critical. The Safety Manager chassis relies on redundant 24 VDC power supply modules — typically the FS-TPSU-0001 power supply unit — to maintain continuous operation. A marginal power supply can cause intermittent DO channel faults that mimic module failure. Inspecting and, where necessary, replacing the power supply module in parallel with the DO card eliminates this diagnostic ambiguity and reduces repeat call-outs.

Field wiring termination is another common failure point in aging installations. The FS-TSDO-0824 connects to field devices through dedicated terminal base assemblies and marshalling panels. During a DO module swap, technicians should inspect the associated terminal blocks, cable shields, and field junction boxes for corrosion, loose terminations, or insulation degradation — particularly in high-humidity or chemically aggressive environments. Keeping a stock of compatible terminal base units and field wiring connectors alongside the DO module spare ensures a complete, single-visit repair.

For facilities running extended Safety Manager installations, the communication infrastructure also warrants attention. The FS-TSCM-0001 communication module and associated FS-TSNI-0001 network interface card govern the Safety Manager’s integration with the DCS and SCADA layers. Degraded communication modules can mask DO channel status reporting, creating false confidence in system health. A comprehensive turnaround should include a firmware version audit of all communication cards and a loop-back test of the safety network.

Finally, for sites managing multiple Safety Manager cabinets or planning system life extension beyond the original design horizon, maintaining a structured spare parts inventory is the most cost-effective risk mitigation strategy. A recommended minimum spares kit for a Safety Manager installation includes: one FS-TSDO-0824 DO module, one FS-TSDI-0824 DI module, one FS-TSAI-0808 AI module, one power supply module, and one controller card — covering the highest-failure-probability components without over-investing in low-risk passive hardware.

Strategic Replacement Solutions

The FS-TSDO-0824 is a direct form-fit-function replacement for the original module installed in Honeywell Safety Manager systems. No firmware re-flashing, no chassis modification, and no re-validation of the safety function is required when replacing a like-for-like module within the same hardware revision family — significantly reducing the engineering burden and regulatory documentation overhead associated with a safety system change.

For sites where the original Safety Manager hardware is approaching end-of-life or where Honeywell has issued an end-of-support notice for specific module revisions, sourcing original spare modules from verified distributors like TOPNLMS extends the operational life of the existing safety system by 3–7 years without the capital expenditure of a full SIS migration. This is particularly valuable in brownfield facilities where the cost and schedule risk of a full safety system replacement is prohibitive during normal production cycles.

When a DO module fails in service, the typical recovery path without a pre-positioned spare involves: fault diagnosis (2–4 hours), procurement lead time from the OEM (4–12 weeks for legacy modules), and re-commissioning (4–8 hours). With a TOPNLMS-supplied FS-TSDO-0824 in your on-site spares cabinet, the same recovery compresses to under 8 hours total — a difference that, in process industries, can represent hundreds of thousands of dollars in avoided production loss.

Support FAQ

Q1: Is the FS-TSDO-0824 compatible with all Safety Manager chassis revisions?
The FS-TSDO-0824 is designed for the Honeywell Safety Manager SM series chassis. Compatibility is maintained across the primary SM hardware generations. For specific chassis revision queries, please contact our technical team with your existing module’s hardware revision label — we will confirm compatibility before shipment.

Q2: What pre-shipment testing does TOPNLMS perform on this module?
Every FS-TSDO-0824 unit undergoes functional output channel testing, diagnostic self-test verification, and backplane communication handshake testing prior to dispatch. A test report is available upon request and can be included with the shipment documentation for your maintenance records.

Q3: How should I manage spare lifecycle for Safety Manager DO modules?
For SIL 2 systems, IEC 61511 recommends that spare modules be stored in controlled environments (temperature and humidity within operating spec) and rotated into service within 5 years of manufacture to avoid electrolytic capacitor degradation. TOPNLMS provides manufacture date traceability for all modules, enabling you to manage spare lifecycle in compliance with your site’s functional safety management plan.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, TOPNLMS provides advance replacement to minimize your system downtime, with the defective unit returned for failure analysis.
