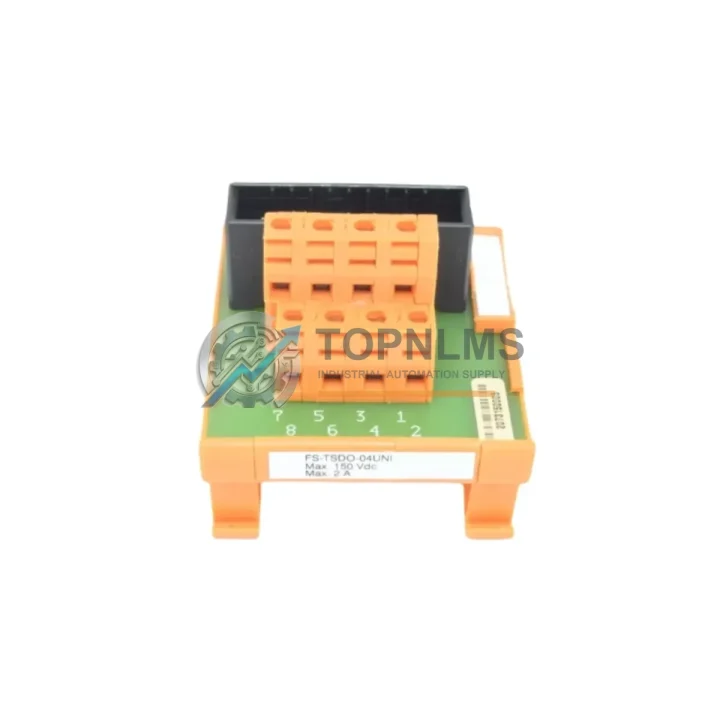

Honeywell FS-TSDO-04UNI Ruggedized Safe Digital Output Module

Product Overview

Honeywell FS-TSDO-04UNI Ruggedized Safe Digital Output Module for Harsh Industrial Environments

The Honeywell FS-TSDO-04UNI is a 4-channel universal safe digital output module engineered for the FSC (Fail-Safe Controller) Safety System — Honeywell’s proven SIL2-certified safety PLC platform widely deployed across oil & gas, petrochemical, power generation, and heavy industrial facilities worldwide. Designed to operate reliably under extreme thermal cycling, high humidity, mechanical vibration, and intense electromagnetic interference, the FS-TSDO-04UNI delivers the deterministic, fault-tolerant output switching that safety-critical control loops demand.

In continuous production environments where a single output failure can trigger unplanned shutdowns or endanger personnel, the FS-TSDO-04UNI provides hardware-level redundancy and self-diagnostic routines that detect faults before they propagate. Its universal output architecture supports a broad range of field device loads — from solenoid valves and motor contactors to safety relays and actuator drives — making it a versatile backbone component in any FSC-based safety instrumented system (SIS).

Rugged Specifications Table

Comprehensive Protection Solutions

The FS-TSDO-04UNI does not operate in isolation — it is one node in a tightly integrated FSC safety architecture. In a typical FSC cabinet, the module slots alongside the Honeywell FS-SDO-0808 safe digital output card and the FS-SDI-0808 safe digital input module, forming a complete I/O layer that feeds directly into the FSC CPU module (FS-CPU-0x). The CPU continuously polls each I/O module’s self-diagnostic registers, ensuring that any output driver fault is detected within the system’s defined proof-test interval.

Power integrity is maintained by the Honeywell FS-PSU-24VDC redundant power supply unit, which provides clean, regulated 24 VDC to the backplane under all load conditions — including the inrush currents generated when solenoid valves or motor starters are energized through the FS-TSDO-04UNI’s output channels. In high-vibration environments such as compressor stations or offshore platforms, the FSC backplane termination assembly and locking card ejectors prevent intermittent contact faults that would otherwise compromise SIL 2 integrity.

For process facilities running mixed safety and basic process control on the same network, the FSC system communicates upstream via the Honeywell ControlNet or Modbus RTU communication module, allowing the FS-TSDO-04UNI’s output status to be mirrored in the plant DCS — typically a Honeywell Experion PKS or third-party DCS — without breaking the safety loop’s independence. Safety relay modules such as the Pilz PNOZ series or Phoenix Contact PSR safety relays are commonly wired downstream of the FS-TSDO-04UNI outputs to provide galvanic isolation and additional contact multiplication for high-current actuator loads.

In installations where the FSC system must interface with variable-frequency drives (VFDs) or soft starters, the FS-TSDO-04UNI’s universal output channels can be configured to drive the drive’s safe-torque-off (STO) input directly, eliminating the need for an intermediate safety relay and reducing the overall component count in the control cabinet. Terminal modules and marshalling panels from the Honeywell FSC terminal board series provide the field wiring interface, with clearly labeled screw terminals that simplify commissioning and reduce wiring errors during maintenance shutdowns.

Application in Critical Infrastructure

Across the world’s most demanding industrial sectors, the Honeywell FS-TSDO-04UNI has established a track record of dependable performance in environments where failure is not an option.

Oil & Gas — Upstream & Midstream: On wellhead control panels and pipeline compressor stations, the FS-TSDO-04UNI drives emergency shutdown (ESD) valves and blowdown actuators. Its SIL 2 rating satisfies the functional safety requirements of IEC 61511 for hydrocarbon processing facilities, and its wide operating temperature range accommodates the extreme ambient swings found in desert or arctic field installations.

Power Generation: In gas turbine and steam turbine control systems, the module provides the safe digital outputs required for turbine trip logic, fuel shutoff valve control, and lube oil pump interlock circuits. Its deterministic response time ensures that protective actions are executed within the turbine’s defined safety response time.

Mining & Minerals Processing: Underground and surface mining operations subject control equipment to severe vibration, coal dust ingress, and wide humidity swings. The FS-TSDO-04UNI’s robust construction and conformal-coated PCB (per FSC platform specification) resist corrosion and particulate contamination, maintaining reliable output switching for conveyor belt safety interlocks, ventilation fan controls, and hoisting system ESD circuits.

Water & Wastewater Treatment: Municipal and industrial water treatment plants rely on the FSC platform for chlorine dosing interlock systems and pump protection circuits. The FS-TSDO-04UNI’s self-diagnostic capability allows plant operators to detect latent output faults during scheduled proof tests without taking the safety function offline.

Metallurgy & Steel: In electric arc furnace (EAF) and continuous casting operations, the module controls hydraulic valve actuators and cooling water interlock outputs under conditions of intense electromagnetic interference generated by high-current bus bars and induction heating equipment. Its EMC-hardened design maintains signal integrity without additional shielding measures.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the FS-TSDO-04UNI?
All FS-TSDO-04UNI modules shipped by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing — including output channel verification and self-diagnostic confirmation — before dispatch. Warranty claims are handled directly by our technical team with a target response time of 24 business hours.

Q2: How is the module tested before shipment, and how can I verify authenticity?
Every FS-TSDO-04UNI is inspected against Honeywell’s original part specifications, including label verification, firmware revision check (where applicable), and channel-by-channel output load test. We source modules from authorized distribution channels and decommissioned OEM systems with full traceability documentation. Customers requiring additional factory test reports or certificates of conformance should contact our sales team prior to order placement.

Q3: Is the FS-TSDO-04UNI compatible with my existing FSC system revision?
The FS-TSDO-04UNI is designed for compatibility across the FSC platform’s major hardware revisions. However, firmware and backplane revision compatibility should be confirmed against your FSC system’s hardware compatibility matrix before installation. Our technical team can assist with compatibility verification based on your FSC CPU part number and system revision level — please provide these details when enquiring.

Q4: Can TOPNLMS support long-term supply and replacement for discontinued or hard-to-source FSC modules?
Yes. TOPNLMS specializes in maintaining stock of legacy and current-production Honeywell FSC modules — including the FS-TSDO-04UNI and related I/O, CPU, power supply, and communication modules — to support plant operators through extended maintenance cycles and system life extensions. We offer scheduled procurement agreements for customers requiring guaranteed stock availability over multi-year horizons. Contact our team to discuss your long-term sparing strategy.
