Honeywell FS-TSDI-16UNI Original Industrial Spare Safety Manager Compatible

Product Overview

Honeywell FS-TSDI-16UNI Original Industrial Spare – Safety Manager Compatible: Ensuring System Stability in Safety-Critical Environments

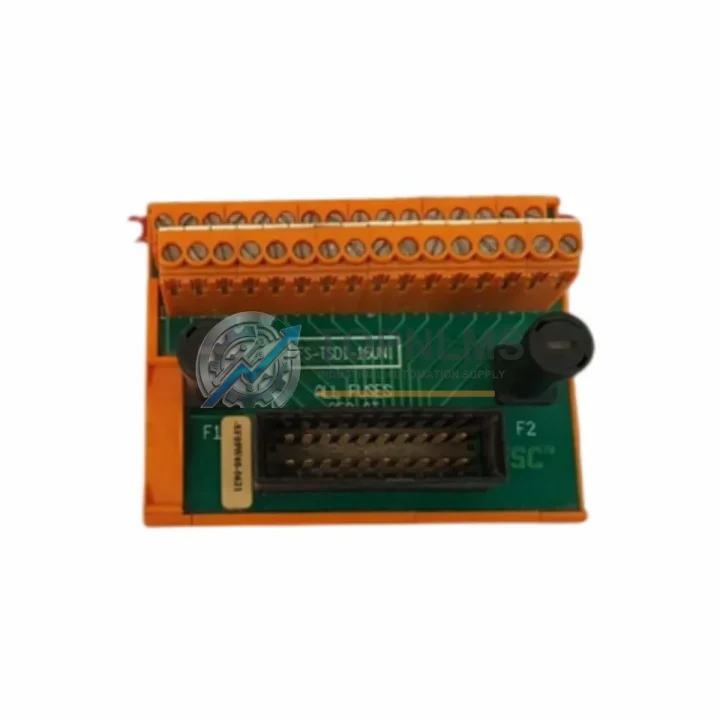

The Honeywell FS-TSDI-16UNI is a 16-channel universal safe digital input field termination assembly designed for use within the Honeywell Safety Manager safety instrumented system (SIS). As a certified SIL 2 component, this module serves as the critical interface between field-level sensors, switches, and emergency shutdown devices and the Safety Manager controller logic. In process industries where unplanned downtime carries severe operational and safety consequences, maintaining a verified original spare of the FS-TSDI-16UNI is not optional — it is a fundamental element of any responsible maintenance strategy.

Whether you are managing a refinery, chemical plant, offshore platform, or large-scale manufacturing facility, the FS-TSDI-16UNI provides the reliable, diagnostics-capable digital input termination that Safety Manager architectures depend on. Its universal input configuration supports a wide range of field device types, reducing the complexity of wiring and commissioning while maintaining full SIL 2 integrity across all 16 channels.

Critical Technical Specs

Preventive Maintenance Strategy

A field termination assembly like the FS-TSDI-16UNI sits at the intersection of field instrumentation and safety logic — making it one of the highest-consequence single points of failure in any SIS cabinet. A proactive maintenance program should treat this module as a scheduled replacement item rather than a run-to-failure component.

During annual SIS proof tests, technicians should verify all 16 input channels against their respective field devices — ESD pushbuttons, pressure switches, level switches, and flame detectors. Any channel showing intermittent response, elevated leakage current, or diagnostic fault codes should trigger immediate module replacement rather than continued monitoring. Keeping a verified spare FS-TSDI-16UNI on the shelf eliminates the decision delay that often extends unplanned shutdowns from hours into days.

When inspecting the Safety Manager cabinet during a planned turnaround, it is equally important to assess the condition of adjacent components. The Honeywell FS-SDO-08 safe digital output module drives final elements such as solenoid valves and motor starters — its termination assembly should be inspected alongside the FS-TSDI-16UNI for consistent SIL 2 loop integrity. The Honeywell FS-TAI-16 analog input termination assembly handles 4–20 mA transmitter signals from pressure and temperature instruments; worn terminal blocks or corroded field wiring at this module can introduce measurement drift that compromises safety function accuracy.

The Honeywell FS-PSU-24VDC power supply module provides the 24 VDC rail that energizes the FS-TSDI-16UNI and all field termination assemblies in the cabinet. A degraded power supply with marginal output voltage will cause intermittent input channel faults that are difficult to diagnose without a known-good spare. Replacing aging PSU modules during planned maintenance prevents cascading diagnostic alarms across multiple I/O assemblies.

Communication integrity between the Safety Manager controller and the engineering workstation depends on the Honeywell FS-COM Ethernet communication module. During cabinet inspections, verify that communication module LEDs indicate healthy network status and that no CRC errors are accumulating on the safety network. Similarly, the Honeywell Safety Manager SC controller module itself should be checked for firmware currency and battery backup status — an outdated controller firmware version can affect how diagnostic data from the FS-TSDI-16UNI is interpreted and reported.

Field wiring termination quality is often overlooked during routine maintenance. The Phoenix Contact or Weidmüller DIN rail terminal blocks used to land field cables onto the FS-TSDI-16UNI should be inspected for loose screws, oxidized contacts, and insulation damage. Replacing worn terminal blocks during a turnaround costs a fraction of the downtime caused by an intermittent open circuit on a safety input channel. Additionally, signal isolators and NAMUR interface modules installed between field sensors and the FS-TSDI-16UNI should be tested for correct output levels — a failing isolator can simulate a channel fault on an otherwise healthy termination assembly.

For facilities running redundant Safety Manager architectures, the Honeywell FS-SCMB Safety Manager chassis backplane should be inspected for connector wear and backplane voltage integrity. A degraded backplane connection can cause sporadic module communication errors that are misdiagnosed as FS-TSDI-16UNI failures, leading to unnecessary module replacements. Completing a full cabinet inspection — covering the termination assemblies, controller modules, power supplies, communication modules, and backplane — during each planned outage is the most cost-effective way to maintain SIS availability between proof test intervals.

Strategic Replacement Solutions

The FS-TSDI-16UNI has been a core component of Honeywell Safety Manager installations since the platform’s introduction, and many facilities are now operating systems that are 10 to 15 years into their lifecycle. As Honeywell transitions support resources toward newer SIS platforms, sourcing original spare modules through authorized industrial distributors becomes increasingly critical for facilities that cannot justify a full SIS migration during the current asset lifecycle.

Replacing a failed FS-TSDI-16UNI with a verified original spare — rather than an unverified substitute — preserves the SIL 2 certification of the safety loop without requiring re-validation of the entire safety function. This is a significant operational advantage: a like-for-like replacement with a tested original module can be completed during a short maintenance window, while introducing an unvalidated substitute may trigger a full functional safety assessment under IEC 61511 requirements.

For facilities managing aging Safety Manager systems, a strategic sparing approach should include at minimum one FS-TSDI-16UNI per installed cabinet, with additional units held at the site warehouse for multi-cabinet installations. The module’s universal input configuration means a single spare covers all channel types — dry contact, NAMUR, and voltage — eliminating the need to stock multiple input-specific variants. This simplifies inventory management while ensuring that any channel type failure can be addressed with the same replacement unit.

All FS-TSDI-16UNI units supplied by TOPNLMS are sourced from verified supply chains, functionally tested prior to shipment, and covered by a 12-month warranty against manufacturing defects and functional failure. Units are shipped with original packaging and documentation where available, supporting traceability requirements for safety-critical spare parts management.

Support FAQ

Q1: Is this FS-TSDI-16UNI an original Honeywell part or a compatible substitute?
This is an original Honeywell FS-TSDI-16UNI field termination assembly sourced from verified industrial supply channels. It is not a third-party compatible or remanufactured substitute. Original parts are required to maintain SIL 2 certification without re-validation.

Q2: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit is functionally tested before dispatch. Warranty claims are supported with replacement or refund at TOPNLMS’s discretion.

Q3: How do I verify compatibility with my existing Safety Manager installation before ordering?
The FS-TSDI-16UNI is compatible with Honeywell Safety Manager SC and MC controller platforms. Compatibility can be confirmed by cross-referencing your system’s hardware configuration report (available from the Safety Manager engineering workstation) against the module’s part number. Contact us at [email protected] with your system configuration details for pre-order compatibility verification.

Q4: What is the typical lead time and how is the module packaged for shipment?
In-stock units are dispatched within 1–3 business days. Modules are packaged in anti-static protective packaging with foam cushioning to prevent transit damage. A functional test report is included with each shipment. Express international shipping options are available for urgent maintenance requirements.
