Honeywell FS-TDOL-07120 Replacement for FS Series: Seamless Safety System Upgrade

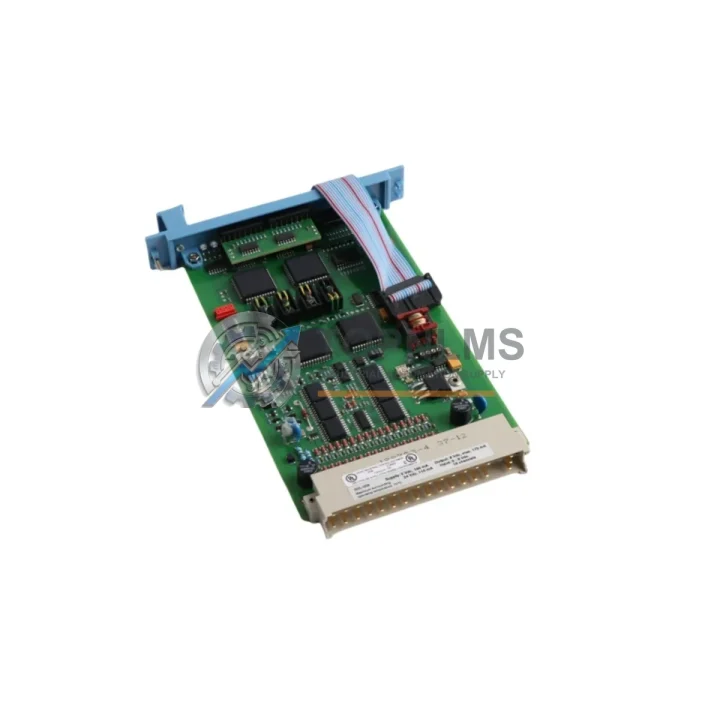

The Honeywell FS-TDOL-07120 is a SIL 2/3-certified Safety Digital Output (DO) module designed for the Honeywell Safety Manager and FSC (Fail-Safe Controller) platform. As legacy safety systems approach end-of-life or as spare parts become increasingly scarce, the FS-TDOL-07120 serves as the direct replacement and upgrade solution for discontinued or aging DO modules within the FS Series architecture. This module is engineered to slot into existing FS Series racks and control cabinets with no structural modification, preserving your installed base investment while restoring full SIL-rated output capability.

Industrial facilities operating Honeywell Safety Manager systems — including those running on the FSC Processor Module and associated I/O backplanes — frequently encounter the challenge of sourcing certified replacement output modules without triggering a full system revalidation. The FS-TDOL-07120 addresses this directly: it maintains the same rack footprint, connector pinout, and field wiring termination standard as the modules it replaces, allowing maintenance engineers to execute a hot-swap or scheduled replacement with minimal downtime. Field wiring connected to the existing terminal blocks can typically be re-terminated to the FS-TDOL-07120 without re-routing, preserving cable management and reducing commissioning time on the plant floor.

From a communication and system architecture perspective, the FS-TDOL-07120 integrates natively with the Safety Manager’s internal safety bus, requiring no additional configuration of communication protocols such as Modbus or PROFIBUS at the module level. The module’s diagnostic outputs are fully compatible with the existing FSC Engineering Station software environment, meaning that safety logic programs developed in the FSC toolset do not require modification when substituting this module for an older DO variant. This is a critical advantage for facilities where safety application programs are under strict change-management control and where re-validation cycles are costly.

During a typical migration or retrofit project, the FS-TDOL-07120 is commonly deployed alongside complementary FS Series components. Engineers replacing aging output infrastructure often simultaneously address the FS-TDIL-07110 Safety Digital Input Module to maintain balanced I/O redundancy. Power distribution within the control cabinet is typically managed through the FS-TPSU-07100 Power Supply Module, which provides the regulated 24 VDC rail that the FS-TDOL-07120 requires for both logic and field-side output circuits. Where the existing rack backplane shows signs of wear or connector fatigue, the FS-TRCK-07100 Rack Assembly provides a direct mechanical replacement that accepts all FS Series I/O modules without firmware changes.

For facilities migrating from older Honeywell TDC 3000 or HPM (High-Performance Process Manager) architectures to the Safety Manager platform, the FS-TDOL-07120 represents the output-side anchor of the new safety layer. Signal conditioning between legacy field devices and the new DO module may require the use of signal isolators or relay output modules to bridge voltage level differences, particularly where 120 VAC field devices are being retained. In such cases, the FS-TDOL-07120’s solid-state output design supports interface with interposing relay panels without compromising SIL integrity, provided the overall safety loop is assessed as part of the migration SIL verification.

Control cabinet space is a frequent constraint in brownfield upgrades. The FS-TDOL-07120 occupies a single slot in the standard FS Series rack, identical to the modules it replaces, which means no additional DIN rail space or cabinet re-layout is required. This is particularly valuable in offshore platforms, chemical plants, and power generation facilities where control room real estate is fixed and cabinet modifications require additional HAZOP review. The module’s compact form factor and front-access wiring design also simplify in-situ replacement without removing adjacent modules or disconnecting unrelated field circuits.

Procurement teams evaluating the FS-TDOL-07120 as a replacement for discontinued Honeywell safety output modules should note that this unit ships from verified stock, with each module undergoing functional output testing and SIL certification verification prior to dispatch. Lead times are typically 3–7 business days for standard orders, with expedited shipping available for urgent plant shutdowns or unplanned failures. All units are supplied with original manufacturer documentation where available, and TOPNLMS provides a 12-month warranty covering functional defects under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FS Series safety system migration typically involves more than a single module swap. When replacing the FS-TDOL-07120 as part of a broader control system modernization, engineers commonly address the following components in the same maintenance window. The FS-TDIL-07110 Safety Digital Input Module is the natural counterpart to the DO module, and replacing both simultaneously ensures that the entire I/O layer is refreshed to current SIL certification standards. The FS-TPSU-07100 Power Supply Module should be inspected and replaced if it has exceeded its recommended service life, as power supply degradation is a leading cause of nuisance trips in aging safety systems.

Where the control system communicates with a distributed control system (DCS) or SCADA layer via PROFIBUS DP or Modbus RTU, the FSC Communication Module handles protocol translation and should be verified for firmware compatibility with the replacement DO module. In systems where the FSC Processor Module itself is being upgraded, the FS-TDOL-07120 is fully compatible with current processor revisions without requiring I/O module firmware updates. For facilities that also operate Honeywell Experion PKS or C300 Controller infrastructure on the DCS side, the safety system integration via the Safety Manager Gateway remains unaffected by the DO module replacement.

Field termination assemblies, including FS Series terminal boards and marshalling panels, should be inspected during the same outage. Corroded or loose terminations at the field wiring level are frequently the root cause of intermittent output faults that are misdiagnosed as module failures. Replacing the FS-TDOL-07120 while simultaneously cleaning and re-torquing field terminations eliminates both potential failure modes in a single planned shutdown, maximizing the value of the maintenance window and extending the interval to the next required outage.

Retrofit Guidance FAQ

Q: Can I replace the FS-TDOL-07120 without modifying my existing safety logic program?
A: Yes. The FS-TDOL-07120 is a direct functional replacement for the same module type within the FS Series platform. The FSC Engineering Station recognizes the module by its rack position and type code; no changes to the safety application program are required for a like-for-like substitution.

Q: Is field wiring re-termination required during replacement?
A: In most cases, existing field wiring can be transferred directly to the replacement module’s terminal block without re-routing. Wire labels and termination drawings should be verified against the as-built documentation before re-energizing the output circuits.

Q: What communication protocols does the FS-TDOL-07120 support?
A: The module communicates via the internal FSC safety bus and does not require independent protocol configuration. Integration with external systems (DCS, SCADA) is handled at the processor and gateway level, not at the individual I/O module level.

Q: Will the replacement module fit in my existing FS Series rack without mechanical modification?
A: Yes. The FS-TDOL-07120 occupies a single standard slot in the FS Series rack assembly. No mechanical modification to the rack, cabinet, or DIN rail is required.

Q: How should I handle the SIL verification after module replacement?
A: A like-for-like module replacement within the same SIL-certified platform typically requires a functional proof test rather than a full SIL re-assessment. Consult your site’s functional safety management plan and the Honeywell Safety Manager system documentation for the applicable change management procedure.

Q: What is the lead time and shipping arrangement?
A: Standard orders ship within 3–7 business days from Xiamen, China. Expedited options are available for urgent requirements. Contact [email protected] or +86 18359293191 to confirm current stock and arrange priority dispatch.

Warranty Assurance

Every Honeywell FS-TDOL-07120 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional output verification test to confirm that all digital output channels operate within specification and that the module’s internal diagnostics are active and reporting correctly. Units that do not pass pre-shipment testing are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned module. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Warranty coverage applies to functional defects arising under normal operating conditions consistent with the module’s rated environment; it does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.

For procurement teams requiring documentation for vendor qualification, TOPNLMS can provide pre-shipment test records, product datasheets, and certificate of conformity upon request. We support purchase order, bank transfer, and trade finance arrangements for qualified industrial buyers. Contact our technical sales team to discuss volume pricing, consignment stock arrangements, or long-term supply agreements for ongoing maintenance programs.
