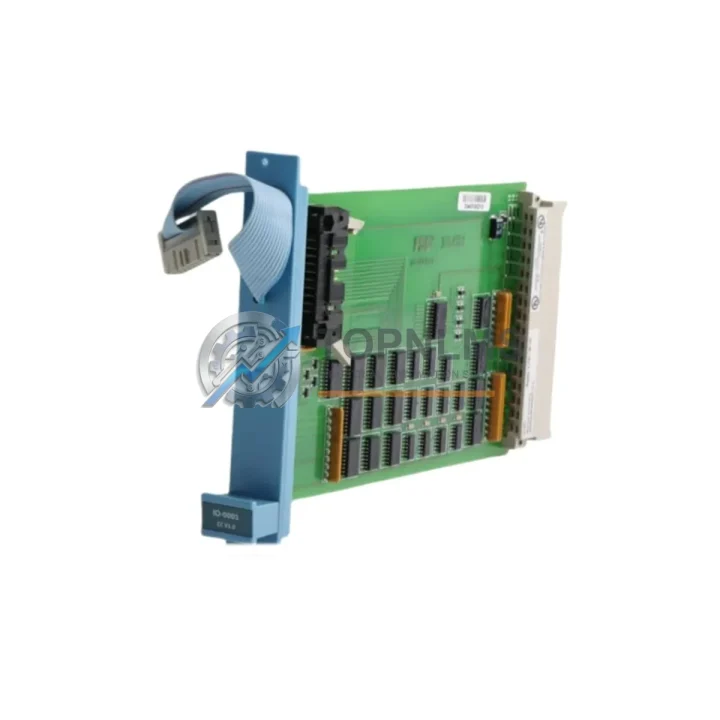

Honeywell FS-IOBUS-CPIO8 Safety I/O Replacement Solution

Product Overview

Honeywell FS-IOBUS-CPIO8 Safety I/O Replacement Solution: Seamless Transition from Legacy Safety Systems

Migrating from an aging or discontinued safety instrumented system (SIS) to a modern, certified platform is one of the most critical decisions in industrial plant operations. The Honeywell FS-IOBUS-CPIO8 Safety Fieldbus CP I/O Module is a cornerstone component of the Honeywell Safety Manager Series, designed to deliver SIL 2 and SIL 3 certified safety I/O over the FS-IOBUS fieldbus architecture. Whether you are replacing a failed unit, upgrading from an end-of-life predecessor, or modernizing a legacy Triconex, Yokogawa ProSafe, or older Honeywell FSC (Fail-Safe Controller) platform, the FS-IOBUS-CPIO8 provides a validated, drop-in-compatible upgrade path that minimizes engineering rework, reduces plant downtime, and preserves your existing safety logic investment.

The FS-IOBUS-CPIO8 integrates directly into the Honeywell Safety Manager SC rack architecture, communicating over the proprietary FS-IOBUS protocol. It supports 8 channels of configurable process I/O, with each channel independently certified to IEC 61508 SIL 2/3 standards. The module’s compact form factor fits standard Safety Manager backplane slots, making it fully compatible with existing cabinet layouts without requiring additional DIN rail space or panel modifications. For plants running mixed Safety Manager and Honeywell Experion PKS architectures, the FS-IOBUS-CPIO8 integrates seamlessly into the unified safety and process control network, supporting coordinated shutdown logic and cross-system diagnostics.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the FS-IOBUS-CPIO8 rarely involves replacing a single module in isolation. In practice, field engineers upgrading from legacy FSC or Triconex platforms will typically need to address the full signal chain. The Honeywell FS-IOBUS-CPIO8 is most commonly deployed alongside the Honeywell SM-SCU Safety Manager System Controller Unit, which serves as the central processing node managing all FS-IOBUS-connected I/O modules. If your existing controller is running an older firmware revision, a coordinated upgrade of the SCU and I/O modules ensures protocol compatibility and eliminates version mismatch faults during commissioning.

On the field wiring side, plants migrating from legacy screw-terminal FSC modules will benefit from using Honeywell FS-IOBUS-CPIO8 Removable Terminal Blocks (RTBs) paired with pre-wired marshalling panels, which allow field cables to remain undisturbed while the module is swapped. For applications requiring signal isolation between field instruments and the safety system — particularly in high-noise environments or where intrinsic safety barriers are mandated — inline Pepperl+Fuchs or MTL signal isolators are commonly inserted between the field junction box and the RTB, preserving SIL loop integrity without rewiring the field side.

Communication infrastructure upgrades are equally important. Plants that previously relied on Profibus DP for safety I/O communication will need to map legacy Profibus device addresses to the FS-IOBUS topology using the Safety Builder configuration tool. In hybrid architectures where the Safety Manager coexists with a Honeywell Experion PKS C300 Controller or a Honeywell Experion HS Safety Controller, the FS-IOBUS-CPIO8 integrates into the unified control network via the Honeywell FTEB (Fault-Tolerant Ethernet Bridge) module, enabling coordinated ESD and process control logic without additional gateways.

For power distribution within the safety cabinet, the Honeywell SM-PSU Safety Manager Power Supply Unit provides redundant 24 VDC rail power to the backplane, eliminating the need for external DIN-rail PSUs that were common in older FSC installations. Cabinet space savings of 30–40% are typical when consolidating from a legacy FSC rack to a Safety Manager SC rack populated with FS-IOBUS-CPIO8 modules. Where additional I/O density is required beyond the 8-channel capacity of a single FS-IOBUS-CPIO8, engineers can populate adjacent backplane slots with additional CP I/O modules or Honeywell FS-IOBUS-DAIO8 analog I/O modules, sharing the same FS-IOBUS segment without additional cabling.

For plants that require operator interface upgrades as part of the modernization project, the Honeywell Experion Station HMI or a compatible Siemens SIMATIC HMI panel can be integrated into the control room without impacting the safety layer, as the FS-IOBUS-CPIO8 communicates exclusively over the safety bus and does not expose process data directly to the HMI network. This architectural separation is a key compliance requirement under IEC 61511 for SIS independence.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing an FSC module with the FS-IOBUS-CPIO8?
A: In most cases, yes. The FS-IOBUS-CPIO8 uses a removable terminal block (RTB) interface. If your existing marshalling panel uses the same terminal pitch and signal type (DI/DO/AI), field cables can be re-terminated to the new RTB without pulling new wire. Verify signal voltage levels and loop current ratings against the FS-IOBUS-CPIO8 datasheet before re-termination.

Q: Do I need to rewrite my safety logic when migrating from FSC to Safety Manager?
A: Safety logic written in the FSC Engineering Tool (Function Block Diagram or Ladder) must be re-validated in Honeywell Safety Builder. While direct import is not supported, the functional logic structure is typically preserved. TOPNLMS recommends engaging a certified Honeywell Safety Manager integrator for SIL validation and Factory Acceptance Testing (FAT) of migrated logic.

Q: Is the FS-IOBUS-CPIO8 compatible with Profibus DP field devices?
A: The FS-IOBUS-CPIO8 communicates over the FS-IOBUS protocol natively. Profibus DP field devices must be connected via a Profibus DP gateway or replaced with HART/4–20 mA instruments wired directly to the CP I/O channels. Consult the Safety Manager System Planning Guide for supported field device topologies.

Q: Can the FS-IOBUS-CPIO8 be replaced online without a plant shutdown?
A: Yes. The module supports hot-swap replacement when the Safety Manager system is in Run mode, provided the replacement module is pre-configured with the correct channel assignments in Safety Builder. Online replacement reduces planned maintenance windows and eliminates the need for a full ESD system shutdown during module exchange.

Q: What physical space does the FS-IOBUS-CPIO8 require in the safety cabinet?
A: The module occupies one standard Safety Manager SC backplane slot. A fully populated 8-slot Safety Manager rack with FS-IOBUS-CPIO8 modules requires approximately 6U of panel space, compared to 12–16U for an equivalent FSC rack configuration. This allows significant cabinet consolidation in retrofit projects.

Q: What communication protocols are supported for integration with the DCS layer?
A: The Safety Manager communicates with the Honeywell Experion PKS DCS layer via the FTEB module using Fault-Tolerant Ethernet (FTE). For third-party DCS platforms (e.g., Emerson DeltaV, ABB 800xA), OPC DA/UA gateways are used to bridge safety system data to the process historian and operator station without violating SIS independence requirements.

Warranty Assurance

Every Honeywell FS-IOBUS-CPIO8 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point outgoing inspection that includes visual examination, connector integrity verification, firmware version confirmation, and functional power-on testing. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation, minimizing the impact on plant operations. Our after-sales response team is reachable via email and phone for technical pre-sales consultation, installation guidance, and post-delivery support. We maintain buffer stock of high-demand Safety Manager Series components — including the FS-IOBUS-CPIO8 and related modules — to support emergency procurement requirements with short lead times.

For procurement teams requiring documentation, TOPNLMS can provide a Certificate of Conformance (CoC), packing list, and commercial invoice with each shipment. Export compliance documentation for cross-border shipments is prepared in accordance with applicable trade regulations. All units are shipped in anti-static packaging with foam protection to prevent transit damage.

TOPNLMS is committed to supporting industrial facilities through every phase of their safety system lifecycle — from emergency spares procurement to planned modernization projects. Contact our team to discuss your specific replacement or upgrade requirements.
