Honeywell FS-DO-1624 Replacement/Upgrade Solution: Seamless Transition for Safety Manager SC Systems

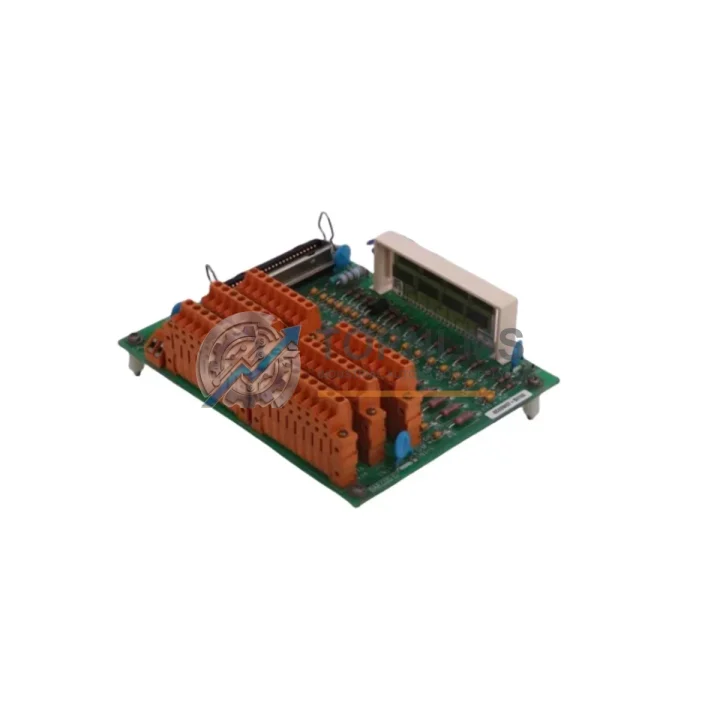

The Honeywell FS-DO-1624 is a 16-channel, 24 VDC Safety Digital Output Module designed for use within the Honeywell Safety Manager SC (formerly Safety Manager) platform — a widely deployed Safety Instrumented System (SIS) in oil & gas, petrochemical, power generation, and process manufacturing facilities. As aging Safety Manager installations approach end-of-life or as original FS-DO-1624 modules become increasingly difficult to source, plant engineers and procurement teams face a critical challenge: how to maintain SIL 3-rated safety loop integrity without triggering a full system overhaul.

This listing provides a verified, tested replacement and upgrade solution for the FS-DO-1624, enabling a smooth migration path that preserves your existing wiring infrastructure, cabinet layout, and safety logic — while restoring full SIL 3 compliance and extending system service life by years.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FS-DO-1624 replacement rarely happens in isolation. In most Safety Manager SC installations, the digital output module works in close coordination with several other system components. During a planned maintenance window or emergency replacement, engineers typically also evaluate the condition of the FS-DI-1624 Safety Digital Input Module, which handles the corresponding 16-channel input side of the same safety loop. If the DO module has degraded, the DI module in the same chassis slot group should be inspected simultaneously to avoid a repeat intervention.

The FS-AI-1624 Analog Input Module and FS-AO-0824 Analog Output Module are frequently co-located in the same SM SC chassis and share the same backplane power distribution. When replacing the FS-DO-1624, it is good engineering practice to verify that these analog I/O modules are within their rated service life, particularly in high-vibration or high-humidity environments.

Power integrity is critical in SIL 3 applications. The FS-PSU-0124 Safety Power Supply Unit feeds the SM SC chassis and all installed I/O modules. A degraded PSU can cause intermittent DO module faults that are misdiagnosed as module failures. Before completing the FS-DO-1624 swap, confirm that the PSU output voltage is within specification and that the redundant power path — if configured — is fully operational.

For sites running the Safety Manager SC alongside a Honeywell Experion PKS DCS, the FS-SCMB-0101 Safety Communication Module manages the high-speed data exchange between the SIS and the DCS historian. This module’s firmware version must be compatible with the replacement DO module’s diagnostic reporting format. Upgrading the FS-DO-1624 is an appropriate time to verify SCMB firmware currency.

In retrofit projects where the existing marshalling cabinet uses legacy Honeywell SM-series terminal blocks and signal conditioners, the field wiring from the FS-DO-1624’s 16 output channels typically lands on a dedicated marshalling panel. These terminal assemblies are generally reusable without modification, but signal isolators — particularly those protecting outputs driving solenoid valves or motor starters — should be tested for leakage current compliance against the new module’s output drive specifications.

Finally, sites that use a Honeywell Safety Manager Engineering Workstation (EWS) running Safety Builder software will need to perform a module swap procedure within the live project database. This involves placing the affected controller in bypass mode, physically replacing the FS-DO-1624, and executing a hardware configuration download. The process is non-intrusive to the running safety application when performed correctly, and our technical team can provide step-by-step guidance upon request.

Retrofit Guidance FAQ

Q: Will the replacement FS-DO-1624 require any field wiring changes?
A: No. The replacement module uses the same 16-channel terminal block pinout as the original. All existing field cables, cable shields, and marshalling connections remain in place. No rewiring is required.

Q: Is the replacement compatible with my existing Safety Builder project file?
A: Yes. The module presents the same hardware signature to the Safety Manager SC controller. Your existing Safety Builder project, including all function block assignments, channel configurations, and diagnostic settings, does not need to be modified.

Q: What communication protocol does the FS-DO-1624 use?
A: The module communicates exclusively over the proprietary Honeywell SM SC internal backplane bus. There is no external fieldbus (PROFIBUS, Modbus, HART) interface on this module. All communication is managed by the SM SC controller chassis.

Q: Can the replacement be installed in a live system without a full shutdown?
A: In redundant SM SC configurations, hot-swap replacement is possible if the affected I/O channel is in bypass and the redundant module is healthy. In simplex configurations, a controlled process hold is required. Always follow your site’s Management of Change (MOC) and Permit to Work (PTW) procedures.

Q: What if my chassis slot is a different revision than the original module?
A: The SM SC chassis backplane is backward-compatible across module hardware revisions. The replacement FS-DO-1624 will be recognized correctly regardless of chassis revision. If you observe a hardware mismatch alarm after insertion, a Safety Builder hardware configuration refresh will resolve it.

Q: How do I verify the replacement module before installation?
A: Each unit shipped by TOPNLMS undergoes a pre-shipment functional test including power-on self-test (POST) verification, output channel continuity check, and diagnostic LED confirmation. A test report is available upon request.

Warranty Assurance

Every Honeywell FS-DO-1624 replacement module supplied by TOPNLMS is backed by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and diagnostic faults attributable to the module itself — not to field wiring, power supply issues, or incorrect installation.

Pre-shipment testing: All units are powered on and subjected to a full output channel functional test before dispatch. Modules that fail any test parameter are quarantined and not shipped.

Replacement support: In the event of a warranty claim, TOPNLMS will ship a replacement unit within 3 business days of claim confirmation. We do not require the defective unit to be returned before dispatching the replacement, minimizing your plant downtime.

After-sales response: Our technical team is available via email and phone to support installation, commissioning, and troubleshooting queries. Response time for warranty-related inquiries is within 24 hours on business days.

Procurement assurance: We maintain buffer stock of high-demand Safety Manager SC modules including the FS-DO-1624 to support emergency procurement requirements. Express shipping to major industrial hubs in Asia, the Middle East, and Europe is available. All export documentation, including commercial invoices, packing lists, and certificates of origin, is prepared to facilitate smooth customs clearance.
