Honeywell FC-TSRO-0824 V1.1 Relay Output Upgrade Solution

Product Overview

Honeywell FC-TSRO-0824 V1.1 Relay Output Upgrade Solution: Seamless Transition for Safety Manager FC-Series Systems

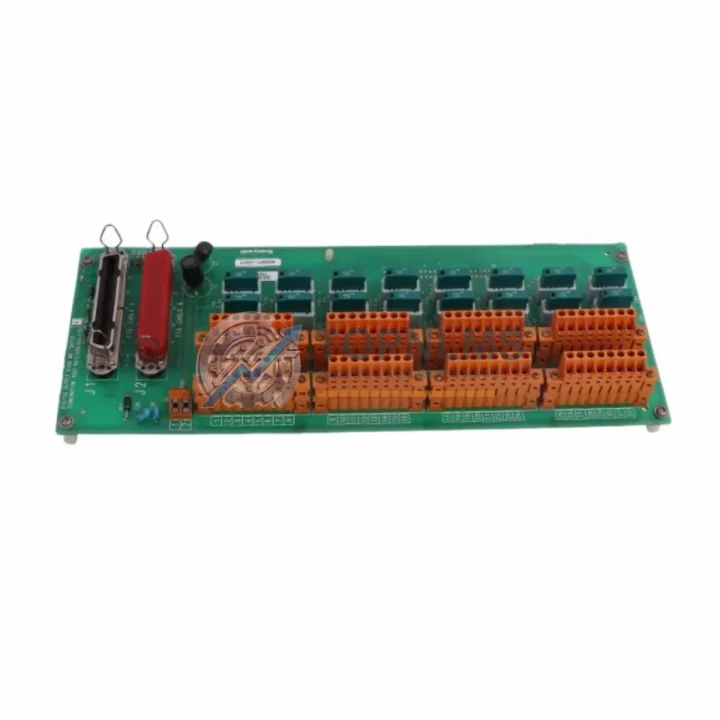

The Honeywell FC-TSRO-0824 V1.1 is an 8-channel relay output termination assembly designed for the Honeywell Safety Manager FC-Series Safety Instrumented System (SIS). As legacy SIS platforms age and original termination assemblies reach end-of-life or become difficult to source, the FC-TSRO-0824 V1.1 serves as the authoritative drop-in replacement — preserving your existing field wiring, relay output logic, and cabinet layout without requiring a full system redesign.

For facilities running Honeywell Safety Manager controllers such as the FC-SDO-0824 digital output module or the FC-SDI-0824 digital input module, this termination assembly integrates directly into the existing FC-Series rack and marshalling cabinet infrastructure. The relay output channels are pre-wired to the standard 24-pin connector interface, ensuring that field cables terminated on the original assembly can be reconnected without re-labeling or re-routing — a critical advantage when minimizing plant downtime during a scheduled turnaround or emergency replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FC-TSRO-0824 V1.1 replacement is rarely a standalone action — it is part of a broader SIS modernization effort. During the retrofit process, engineers typically audit adjacent components in the same marshalling cabinet and FC-Series rack to identify other assemblies approaching end-of-life.

The FC-TSAI-0808 analog input termination assembly and the FC-TSAO-0404 analog output termination assembly are frequently replaced in the same maintenance window, as they share the same DIN rail mounting profile and cabinet zone. Similarly, the FC-SDO-0824 digital output module — which interfaces directly with the FC-TSRO-0824 V1.1 via the standard ribbon cable — should be inspected for firmware revision compatibility when upgrading the termination assembly.

For sites migrating from older Honeywell TDC 3000 or FSC (Fail-Safe Controller) platforms to the Safety Manager FC-Series architecture, the transition typically involves replacing legacy FSC-2402 or FSC-2401 I/O modules with FC-Series equivalents, and the FC-TSRO-0824 V1.1 is a key component in that relay output migration path. The FC-PSSU-0100 power supply unit and FC-RPSSU-0100 redundant power supply module should also be verified for load capacity when adding new termination assemblies to an existing rack.

Communication integrity is maintained through the existing Safety Manager engineering workstation and the SM-EWS programming interface — no changes to the SIS logic solver configuration or cause-and-effect matrix are required when performing a like-for-like termination assembly swap. For sites that also operate Honeywell Experion PKS DCS alongside the Safety Manager SIS, the EHPM (Experion Hybrid Process Manager) gateway remains unaffected by this field-level replacement.

Retrofit Guidance FAQ

Q: Do I need to re-terminate field wiring when replacing the FC-TSRO-0824?
A: No. The V1.1 revision maintains the same screw terminal layout and pinout as earlier revisions. Field cables can be transferred directly from the old assembly to the new one, channel by channel, without re-labeling. It is recommended to photograph the existing wiring before removal as a reference.

Q: Is any programming or logic change required in the Safety Manager controller?
A: No. The FC-TSRO-0824 V1.1 is a passive termination assembly — it contains no firmware or programmable logic. The FC-SDO-0824 digital output module retains all existing relay output assignments. No Safety Manager application download or SIL validation re-test is required for a like-for-like termination assembly replacement.

Q: Will this unit fit in the existing marshalling cabinet without modification?
A: Yes. The FC-TSRO-0824 V1.1 uses the standard FC-Series DIN rail footprint and occupies the same physical space as the original assembly. No cabinet modification, additional mounting hardware, or cable extension is required.

Q: What communication protocols are involved?
A: The termination assembly itself is hardwired — it does not participate in any fieldbus or network protocol. Communication between the Safety Manager controller and the DCS or SCADA layer (typically via Modbus, HART, or Honeywell’s proprietary FTE — Fault Tolerant Ethernet) is handled at the controller level and is unaffected by this replacement.

Q: Can this assembly be used in a SIL 2 certified loop?
A: Yes, subject to the overall SIS architecture and proof test interval defined in your Safety Requirements Specification (SRS). The FC-TSRO-0824 V1.1 is designed for use within the Honeywell Safety Manager FC-Series SIL 2 architecture. Consult your functional safety engineer for loop-level SIL verification.

Q: What is the lead time and shipping arrangement?
A: Units are in stock and ship from Xiamen, China within 1–3 business days of order confirmation. International express delivery (DHL / FedEx) is available. Estimated transit time to most destinations is 3–7 business days.

Warranty Assurance

Every Honeywell FC-TSRO-0824 V1.1 unit supplied by TOPNLMS is backed by a 12-month warranty from the date of shipment. Prior to dispatch, each assembly undergoes a pre-shipment functional inspection covering connector integrity, terminal torque verification, and visual inspection against Honeywell’s original manufacturing specification.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. We maintain reserve stock of FC-Series termination assemblies specifically to support rapid warranty replacements without extended lead times.

For procurement teams, we can provide a commercial invoice, packing list, certificate of conformance, and — where available — original Honeywell traceability documentation. All units are sourced through verified industrial supply channels and are not refurbished or remanufactured unless explicitly stated.

To place an order, request a quotation, or verify current stock availability, contact our technical sales team directly.
