Honeywell FC-TSGASH-1624 Ruggedized FTA for Harsh Environments

Product Overview

Honeywell FC-TSGASH-1624 Ruggedized FTA for Harsh Environments: Industrial Resilience in Every Connection

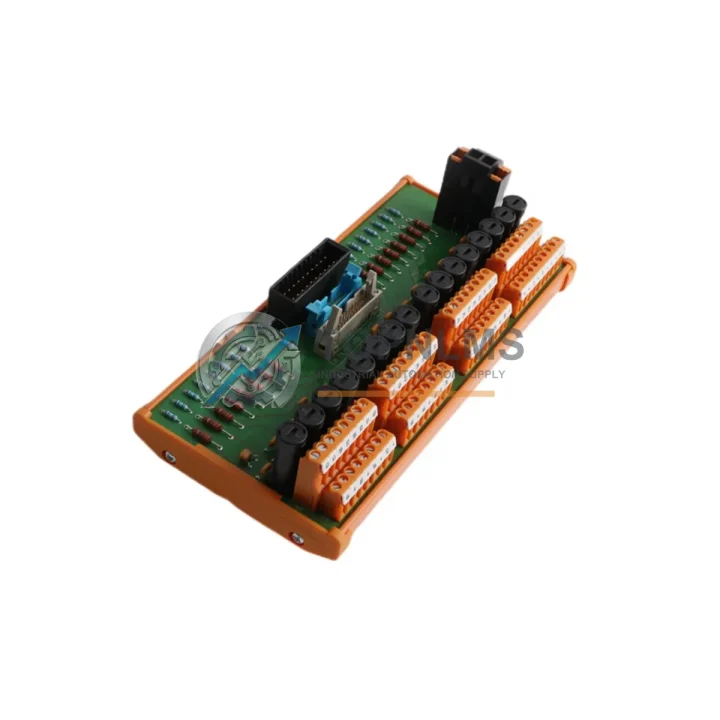

The Honeywell FC-TSGASH-1624 is a 16-channel analog field termination assembly (FTA) engineered for the Experion PKS distributed control system platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this FTA delivers the signal integrity and structural durability that mission-critical automation systems require.

In continuous production environments where downtime is measured in tens of thousands of dollars per hour, the FC-TSGASH-1624 provides a stable, low-noise analog termination interface between field instruments and the Experion PKS controller infrastructure. Its robust mechanical design and Honeywell-certified signal conditioning ensure that analog inputs from pressure transmitters, temperature sensors, flow meters, and level instruments are accurately captured and transmitted to the C300 or C200 process controllers without degradation — even under sustained electromagnetic interference from variable frequency drives, high-voltage switchgear, or adjacent motor control centers.

Rugged Specifications Table

Comprehensive Protection Solutions

The FC-TSGASH-1624 does not operate in isolation — it is a precision component within a broader Honeywell Experion PKS control architecture. In a typical refinery or chemical plant control cabinet, this FTA interfaces directly with the Honeywell IOLINK remote I/O modules, which relay analog signals over redundant fiber or copper backbones to the C300 Controller housed in the process control network. Alongside the FC-TSGASH-1624, engineers commonly deploy the FC-TSAIH-1620 analog input FTA and the FC-TSAOH-1620 analog output FTA to complete the field termination layer for a full process loop.

For digital field devices, the FC-TSDIH-1620 digital input FTA and FC-TSDOH-1620 digital output FTA complement the analog termination assemblies within the same cabinet rail, providing a unified termination strategy across both analog and discrete I/O. Power distribution within the cabinet is typically managed through Honeywell CC-PWRR01 redundant power conditioners, ensuring that the FTA and its associated I/O modules receive clean, regulated 24 VDC even during grid fluctuations or upstream power events.

In safety-instrumented systems (SIS), the FC-TSGASH-1624 is often paired with Honeywell Safety Manager modules and FC-SDIL-0824 safety digital input FTAs to maintain SIL 2 or SIL 3 loop integrity. Communication between the field termination layer and the supervisory SCADA or DCS historian is handled through Honeywell Experion PKS ESVT server nodes and CC-LINK or Modbus TCP gateway modules, ensuring that all 16 analog channels are continuously logged and alarmed in real time. For facilities requiring intrinsic safety barriers, the FTA is compatible with Zener barrier and galvanic isolator assemblies mounted on the same DIN rail, providing certified protection for instruments installed in Zone 1 or Zone 2 hazardous areas.

Application in Critical Infrastructure

In upstream oil and gas production platforms, the FC-TSGASH-1624 is deployed in wellhead control panels and separator skid automation systems where salt-laden air, wide temperature swings, and continuous mechanical vibration from pumping equipment demand a termination assembly that maintains contact integrity over years of uninterrupted service. The FTA’s robust screw-terminal design and conformal-coated PCB resist corrosion and moisture ingress, making it a preferred choice for offshore and coastal onshore installations.

In coal-fired and gas-fired power generation facilities, the FC-TSGASH-1624 manages analog signals from boiler pressure transmitters, turbine speed sensors, and flue gas analyzers. The ability to handle 16 channels within a single compact assembly reduces cabinet footprint and wiring complexity — a critical advantage in brownfield upgrades where panel space is constrained. Power plant maintenance teams value the module’s plug-and-play replacement capability, which allows a failed FTA to be swapped during a planned outage window without rewiring field cables.

In municipal water treatment and wastewater facilities, the FC-TSGASH-1624 monitors flow, pH, turbidity, and dissolved oxygen sensors across multiple treatment stages. Its compatibility with HART protocol allows field technicians to perform remote diagnostics on connected instruments without interrupting the live process — a significant operational advantage in facilities running 24/7 with minimal on-site staffing.

In metallurgical and steel production environments, where furnace heat radiation, heavy crane-induced vibration, and airborne metallic dust create extreme conditions for electronic components, the FC-TSGASH-1624’s industrial-grade construction ensures that analog signal chains remain stable and accurate throughout the smelting and rolling process cycles.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the FC-TSGASH-1624 fails to perform its specified analog termination function within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty does not cover damage resulting from improper installation, overvoltage events, or physical mishandling.

Q2: How is each unit tested before shipment?
Every FC-TSGASH-1624 unit in our inventory undergoes a pre-shipment functional inspection that verifies terminal block integrity, PCB condition, connector alignment, and channel continuity. Units sourced from certified Honeywell distribution channels are cross-referenced against Honeywell’s original part documentation to confirm authenticity and revision compatibility before dispatch.

Q3: Is the FC-TSGASH-1624 compatible with all Experion PKS revisions?
The FC-TSGASH-1624 is designed for use within the Honeywell Experion PKS platform and is compatible with C300 and C200 controller generations. Compatibility with specific firmware revisions of the IOLINK or C300 modules should be verified against Honeywell’s FTA compatibility matrix for your installed system version. Our technical team can assist with revision verification prior to purchase.

Q4: Can you support long-term or repeat procurement for maintenance programs?
Yes. TOPNLMS maintains ongoing inventory of Honeywell Experion PKS spare parts, including FTA modules, I/O cards, and controller components, to support planned maintenance programs and emergency breakdown replacements. We offer priority allocation for customers with recurring procurement needs and can provide lead-time commitments for scheduled outage windows. Contact us at [email protected] or call +86 18359293191 to discuss your maintenance inventory requirements.
