Honeywell FC-TSDO-0824 Ruggedized Safe Digital Output Module

Product Overview

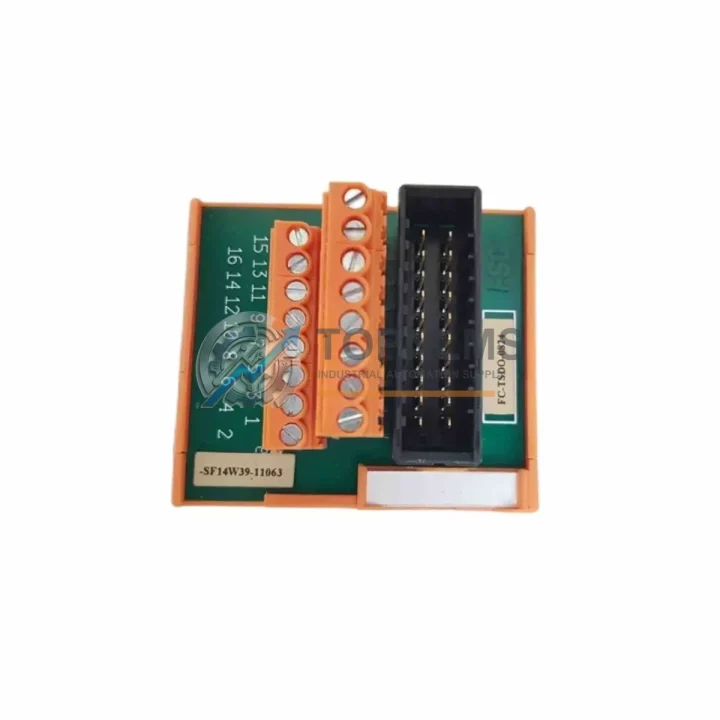

Honeywell FC-TSDO-0824 Ruggedized Safe Digital Output Module for Harsh Industrial Environments

The Honeywell FC-TSDO-0824 is a SIL2-certified Safe Digital Output Module engineered for the Honeywell Safety Manager platform — one of the most widely deployed safety instrumented systems (SIS) in critical process industries worldwide. Designed to operate continuously in the most demanding plant environments, the FC-TSDO-0824 delivers 8-channel safe digital output capability with diagnostics, fault tolerance, and deterministic response times that meet IEC 61508 and IEC 61511 functional safety standards.

In high-temperature refineries, offshore gas platforms, underground mining operations, and high-voltage power substations, control systems face relentless stress from thermal cycling, vibration, humidity, corrosive atmospheres, and electromagnetic interference. The FC-TSDO-0824 is built to withstand these conditions without compromising the integrity of safety shutdown commands. Its ruggedized PCB design, conformal coating, and wide operating temperature range ensure that output signals to final elements — including solenoid valves, motor contactors, and emergency shutdown actuators — remain reliable even when ambient conditions deteriorate rapidly.

Within the Safety Manager architecture, the FC-TSDO-0824 works in close coordination with companion modules such as the FC-TSDI-0824 Safe Digital Input Module, which monitors field device status, and the FC-TSAI-1620 Safe Analog Input Module, which handles process variable acquisition from transmitters and sensors. The FC-SDOB-0800 Safe Digital Output Base provides the physical mounting and field wiring interface for the FC-TSDO-0824, ensuring secure terminal connections even in high-vibration environments. Together, these modules form a tightly integrated I/O subsystem under the supervision of the FC-QPP-0002 Safety Manager Processor, which executes the safety application logic and manages module health diagnostics in real time.

For installations requiring redundant communication paths, the FC-TSDO-0824 integrates seamlessly with the FC-PNTF-0001 PROFINET Communication Module and the FC-RNTE-0001 Redundant Network Interface, enabling high-availability data exchange with DCS platforms such as the Honeywell Experion PKS or third-party SCADA systems. In facilities where the Safety Manager coexists with a Basic Process Control System (BPCS), the FC-TSDO-0824’s galvanically isolated outputs prevent ground loops and cross-system interference — a critical requirement in petrochemical complexes where multiple control domains share the same field cable infrastructure.

Power integrity is equally important in safety-critical applications. The FC-TSDO-0824 is typically powered through the FC-PSU-0024 Safety Manager Power Supply Unit, which provides regulated 24 VDC with redundant feed capability. In cabinet designs where space is constrained, the module’s compact form factor allows dense I/O packing without sacrificing airflow or maintenance access. The FC-CBAS-0002 Safety Manager Chassis accommodates multiple FC-TSDO-0824 modules in a single rack, supporting large-scale safety applications with hundreds of output channels across a unified safety network.

Replacement and spare parts management is a top priority for plant reliability engineers. The FC-TSDO-0824 supports hot-swap replacement in redundant configurations, minimizing process interruption during scheduled maintenance windows. TOPNLMS maintains verified stock of the FC-TSDO-0824 and its associated base units, enabling rapid dispatch to minimize plant downtime. Every unit shipped undergoes functional verification testing prior to dispatch, and is covered by a 12-month warranty against manufacturing defects.

Rugged Specifications Table

Comprehensive Protection Solutions

A robust safety instrumented system is never a single module — it is an ecosystem of coordinated, mutually reinforcing components. The FC-TSDO-0824 operates as the final command layer in a chain that begins with field sensing and ends with actuator response. Upstream, the FC-TSDI-0824 Safe Digital Input Module continuously monitors the status of field switches, position sensors, and emergency stop buttons, feeding verified digital states into the safety logic solver. Analog process variables — pressure, temperature, flow, and level — are acquired by the FC-TSAI-1620 Safe Analog Input Module, which applies signal validation and range checking before passing data to the processor.

The FC-QPP-0002 Safety Manager Processor executes the certified safety application at deterministic scan rates, evaluating all input conditions and issuing output commands to the FC-TSDO-0824 within the required response time budget. In high-availability architectures, a redundant processor pair — supported by the FC-CBAS-0002 chassis — ensures that a single processor fault does not interrupt safety function execution. The FC-PSU-0024 Power Supply Unit provides clean, regulated power to the entire I/O rack, with dual-feed capability to eliminate power as a single point of failure.

For facilities integrating safety and control networks, the FC-PNTF-0001 PROFINET Communication Module bridges the Safety Manager to plant-wide Ethernet infrastructure, enabling alarm annunciation, diagnostic data export, and remote monitoring from the Honeywell Experion PKS operator station. In legacy installations, the FC-RNTE-0001 Redundant Network Interface supports dual-ring Ethernet topologies that maintain communication continuity even during cable or switch failures. This complete ecosystem — from input sensing through logic execution to safe output actuation — ensures that every safety function from emergency shutdown to fire and gas suppression operates with the reliability that critical infrastructure demands.

Application in Critical Infrastructure

The FC-TSDO-0824 is deployed across the full spectrum of process industries where functional safety is non-negotiable. In oil and gas upstream operations, it controls wellhead shutdown valves and high-integrity pressure protection systems (HIPPS), responding to overpressure events within milliseconds to prevent blowouts and pipeline ruptures. In LNG liquefaction and regasification terminals, it manages emergency isolation valves across cryogenic process trains, where temperatures can drop to -162°C in the process stream while the control room environment remains stable.

In coal and metal mining operations, the FC-TSDO-0824 controls ventilation fan interlocks, conveyor emergency stops, and hoisting system safety circuits in environments characterized by coal dust, methane accumulation, and continuous mechanical vibration. Its conformal-coated PCB resists the corrosive effects of sulfur compounds and moisture that are endemic to underground mining environments. In thermal and nuclear power generation, it provides turbine trip outputs and reactor protection system actuation signals, where response time and diagnostic coverage are subject to regulatory scrutiny.

Water and wastewater treatment facilities rely on the FC-TSDO-0824 to control chemical dosing pump interlocks and high-level shutdown valves in chlorination and filtration systems, where chemical exposure and outdoor installation create challenging environmental conditions. In steel and aluminum smelting, the module manages furnace burner management systems and ladle transfer interlocks, operating reliably in the presence of intense radiant heat, electromagnetic interference from arc furnaces, and airborne metallic particulates. Across all these applications, the FC-TSDO-0824 delivers the combination of environmental ruggedness, functional safety certification, and long-term parts availability that plant engineers and safety managers require.
