Honeywell FC-TSDO-0424 Replacement for FSC Series

Product Overview

Honeywell FC-TSDO-0424 Replacement for FSC Series: Smooth Transition & Legacy System Compatibility

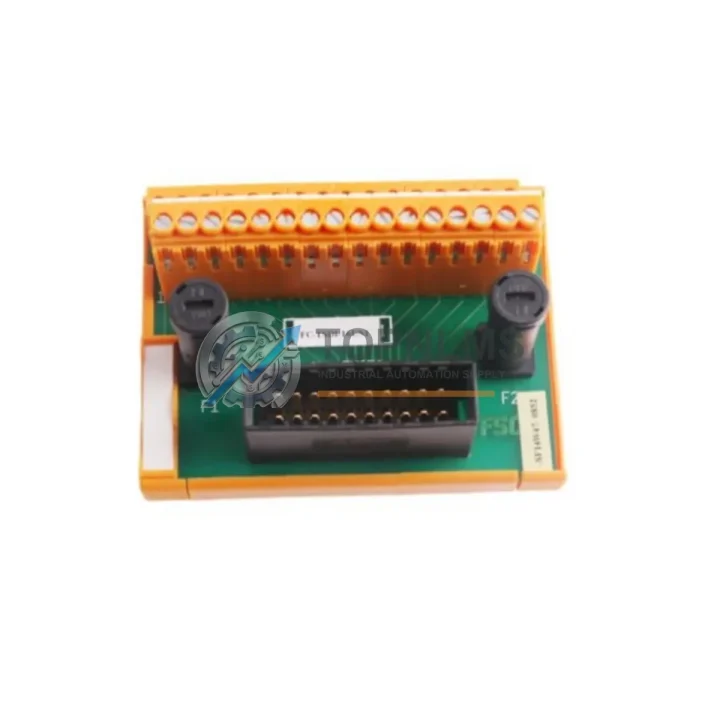

The Honeywell FC-TSDO-0424 is a digital output terminal board designed for the Honeywell FSC (Fail-Safe Controller) Safety PLC platform. As aging FSC systems approach end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams are actively seeking verified replacement and upgrade solutions that minimize engineering rework, preserve existing wiring infrastructure, and reduce unplanned downtime. TOPNLMS supplies the FC-TSDO-0424 as a direct drop-in replacement with full compatibility verification, pre-shipment functional testing, and a 12-month warranty — making it the preferred sourcing choice for safety-critical retrofit projects worldwide.

The FC-TSDO-0424 terminal board interfaces directly with the FSC digital output modules, providing the field-side wiring termination layer between the controller backplane and field devices such as solenoid valves, relay coils, and actuator circuits. Its 24-channel output architecture supports 24 VDC field wiring, and the board’s screw-terminal design is fully compatible with existing cable harnesses — meaning no rewiring is required during a like-for-like replacement. This is a critical advantage in brownfield retrofit scenarios where re-termination would otherwise require extended maintenance windows and additional engineering hours.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FSC system migration or spare-parts replenishment strategy rarely involves a single component. When replacing the FC-TSDO-0424 digital output terminal board, engineers typically review the broader FSC rack assembly to identify other aging components that may require simultaneous replacement to avoid repeat maintenance interventions.

In most FSC installations, the terminal board works in conjunction with the corresponding FC-SDO-0824 digital output module, which provides the logic-side processing and safety diagnostics. If the terminal board is being replaced due to field-side connector wear or corrosion, the mating output module should be inspected at the same time. Similarly, the FC-TSDI-0824 digital input terminal board and its paired FC-SDI-0824 input module are often sourced together during scheduled turnarounds to standardize the spare-parts inventory across the I/O subsystem.

Power distribution within the FSC rack is managed through dedicated FSC power supply modules such as the FC-PSU-0024, which provides the regulated 24 VDC rail that feeds both the processor and I/O modules. During a rack-level refurbishment, replacing aging power supply modules alongside terminal boards ensures system-wide reliability and eliminates the risk of intermittent faults caused by degraded power conditioning.

For plants operating mixed Honeywell environments — particularly those running Experion PKS or TDC 3000 alongside legacy FSC controllers — the migration path may also involve FSC communication interface modules that bridge the FSC safety bus to the plant DCS network. Ensuring these interface modules are current and firmware-compatible is essential before commissioning any replacement terminal board in a live safety loop.

In control cabinet environments where the FSC rack is co-located with Honeywell HC900 hybrid controllers or third-party PLCs, signal isolation may be required at the field wiring layer. Signal isolators and loop-powered barriers are commonly added during terminal board replacement projects to protect the new board from field-side transients and ground loops — a best practice that extends the service life of the replacement hardware.

Finally, for sites performing a full FSC-to-modern-safety-controller migration — such as transitioning to the Honeywell Safety Manager SC platform — the FC-TSDO-0424 serves as an interim solution that maintains operational continuity while the new safety system is engineered, validated, and commissioned in parallel. This phased approach is widely adopted in refinery, petrochemical, and power generation applications where a hard cutover is not operationally feasible.

Retrofit Guidance FAQ

Q: Can I replace the FC-TSDO-0424 without rewiring the field cables?
A: Yes. The FC-TSDO-0424 uses the same screw-terminal pinout as the original FSC digital output terminal boards. Existing field wiring can be reconnected directly without modification, provided cable labeling is verified against the as-built loop drawings before reconnection.

Q: Is any programming change required after replacing the terminal board?
A: No. The terminal board is a passive wiring interface component. It does not contain firmware or configuration data. The FSC safety application program running on the controller module remains unchanged. No SIL validation re-testing is triggered by a like-for-like terminal board replacement under most functional safety management systems, though site-specific MOC (Management of Change) procedures should always be followed.

Q: What communication protocols does the FSC system use, and does this replacement affect them?
A: The FSC platform uses Honeywell’s proprietary FSC internal safety bus for module-to-module communication within the rack. This terminal board replacement does not affect the communication layer. External DCS integration via Modbus, PROFIBUS, or Honeywell’s FTE (Fault Tolerant Ethernet) is handled at the controller and communication module level and is unaffected by terminal board replacement.

Q: Will the replacement board fit in the existing rack without mechanical modification?
A: Yes. The FC-TSDO-0424 is designed to the standard FSC rack form factor. No mechanical modification to the rack, DIN rail, or cabinet is required. The board slides into the existing slot and connects via the standard FSC backplane connector.

Q: How should the replacement be tested before returning the safety loop to service?
A: After installation, perform a point-to-point output channel verification using the FSC diagnostic tools or a calibrated loop tester. Verify that each output channel activates the correct field device at the expected signal level. Complete a partial stroke test or proof test as required by the site’s functional safety maintenance plan before returning the loop to automatic mode.

Warranty Assurance

Every Honeywell FC-TSDO-0424 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify connector integrity, terminal condition, and board-level continuity. Units that do not meet our quality acceptance criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is available to support troubleshooting, documentation requests, and return logistics. We maintain stock of the FC-TSDO-0424 and related FSC components to ensure rapid fulfillment for both planned maintenance and emergency breakdown scenarios.

For procurement teams requiring material traceability, test reports, or certificate of conformance documentation, these can be provided upon request at the time of order. We ship globally from Xiamen, China, with DHL Express, FedEx, and UPS options available for time-critical orders.
