Honeywell FC-TSDI-1624 V1.0 Replacement for TPS DCS: Smooth Migration & Legacy System Compatibility

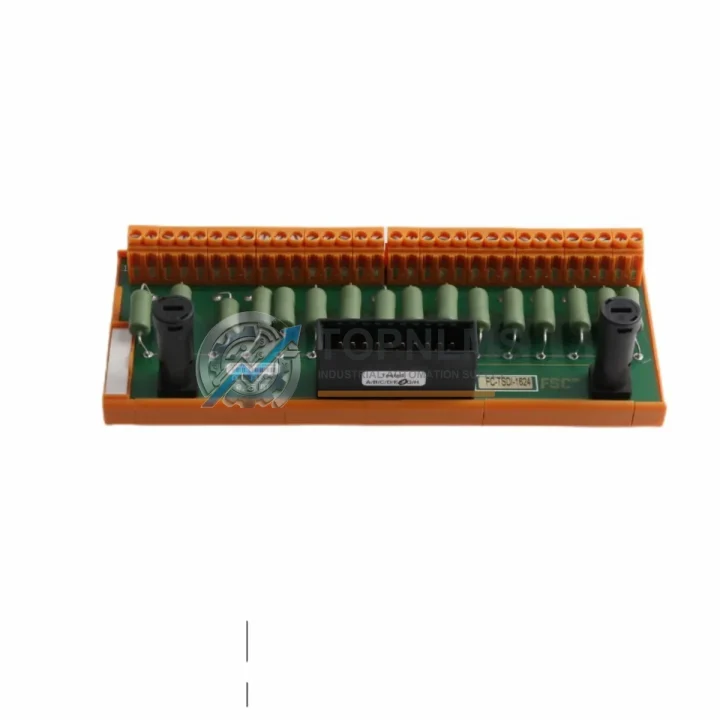

The Honeywell FC-TSDI-1624 V1.0 is a 16-channel digital input module engineered for the TotalPlant Solution (TPS) Distributed Control System platform. As Honeywell progressively phases out legacy TPS hardware in favor of the Experion PKS architecture, many facilities operating on TPS-based control cabinets face urgent pressure to source verified replacement modules that maintain full backward compatibility with existing field wiring, I/O termination assemblies, and control logic — without triggering a full system migration.

TOPNLMS maintains verified stock of the FC-TSDI-1624 V1.0 to support exactly this scenario: a targeted, low-risk module swap that keeps your process running while you plan a broader platform upgrade on your own schedule.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FC-TSDI-1624 V1.0 replacement rarely happens in isolation. In most TPS modernization projects, the digital input module swap is one step in a broader effort to stabilize aging control infrastructure. During commissioning and pre-shipment testing, our team routinely works alongside customers sourcing complementary TPS components to complete the upgrade scope.

For facilities replacing multiple I/O modules in the same TPS rack, the FC-TSDO-0824 digital output module and FC-TSAI-1620 analog input module are frequently ordered alongside the FC-TSDI-1624 to restore full I/O card cage functionality in a single maintenance window. Where the TPS node controller itself has degraded, the FC-SNPM-0001 network processor module is a common co-replacement to ensure UCN communication integrity is maintained after the I/O swap.

On the termination side, customers retaining their existing field wiring typically confirm compatibility with their installed FTA (Field Termination Assembly) — specifically the FC-FTAI-0002 or equivalent TPS FTA model — before proceeding with the module replacement. This avoids any need to re-pull field cables or modify junction boxes, which is a significant cost and schedule advantage in live plant environments.

For facilities beginning a phased migration toward the Experion PKS platform, the FC-TSDI-1624 V1.0 serves as a bridge solution while the new Experion C300 controller and associated CHARM I/O modules are being engineered and staged. This approach allows production continuity on the TPS backbone while the new architecture is validated in parallel. In some configurations, a TPS-to-Experion gateway or UCN interface module is deployed to allow both systems to coexist during the transition period.

Where communication protocol modernization is also in scope — for example, integrating TPS field data into a SCADA or MES layer via OPC server or Modbus TCP gateway — the digital input data from the FC-TSDI-1624 can be surfaced through the existing TPS historian or via a third-party data concentrator without modifying the module itself. This makes the FC-TSDI-1624 V1.0 a practical interim solution even in environments actively planning a full DCS migration.

Power infrastructure supporting the TPS rack — including the Honeywell TPS power supply module and associated redundant power distribution assemblies — should be inspected as part of any module replacement activity. A degraded rack power supply is a common root cause of intermittent I/O module faults that are misdiagnosed as module failures, and addressing it during the same maintenance window eliminates repeat downtime events.

Retrofit Guidance FAQ

Q: Can I replace the FC-TSDI-1624 V1.0 without shutting down the entire TPS system?
A: In most TPS configurations, individual I/O modules can be replaced during a planned partial shutdown of the affected UCN node. A full system shutdown is generally not required, but the specific node must be taken offline and its I/O tags placed in manual or fallback mode before the card is removed. Consult your TPS system documentation and safety procedures before proceeding.

Q: Will my existing field wiring connect directly to the replacement module?
A: Yes. The FC-TSDI-1624 V1.0 uses the same TPS FTA termination interface as the original module. Field wiring connected to the FTA does not need to be disturbed. Only the module card itself is swapped in the rack.

Q: Do I need to modify my TPS control program after the swap?
A: Typically no program logic changes are required for a like-for-like module replacement. However, a re-download of the UCN node configuration is recommended to ensure the new module is correctly recognized by the TPS controller. Verify all I/O tag statuses in the operator station after the download.

Q: Is the FC-TSDI-1624 V1.0 compatible with PROFIBUS or Modbus field devices?
A: No. The FC-TSDI-1624 communicates via the proprietary TPS I/O Link bus. It is not natively compatible with PROFIBUS, Modbus, or HART protocols. Integration with these protocols requires a separate gateway or protocol converter at the system architecture level.

Q: What if the physical installation space in my control cabinet has been modified?
A: The FC-TSDI-1624 V1.0 uses the standard TPS card form factor and fits any unmodified TPS rack slot. If your cabinet has been physically altered, verify the rack slot dimensions and backplane connector alignment before installation.

Q: Can this module be used in an Experion PKS rack?
A: No. The FC-TSDI-1624 V1.0 is designed exclusively for TPS I/O card cages. It is not compatible with Experion PKS C200 or C300 controller racks or CHARM I/O infrastructure.

Warranty Assurance

Every FC-TSDI-1624 V1.0 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification to confirm power-up integrity, channel continuity, and backplane connector condition. Units that do not meet our outgoing quality standard are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault condition. Our after-sales response target is within 24 hours of a reported issue. Customers are not required to return the faulty unit before a replacement is dispatched in cases where the fault is clearly documented.

We ship from Xiamen, China, with express logistics options available for urgent plant maintenance scenarios. Lead time for in-stock units is typically 1–3 business days from order confirmation to dispatch. Customs documentation, commercial invoices, and packing lists are provided as standard for all international shipments.

For procurement teams requiring formal quotations, technical datasheets, or export compliance documentation, contact us directly before placing your order.
