Honeywell FC-SDOL-0424 Replacement for Safety Manager

Product Overview

Honeywell FC-SDOL-0424 Replacement for Safety Manager: Seamless Transition & Upgrade Solution

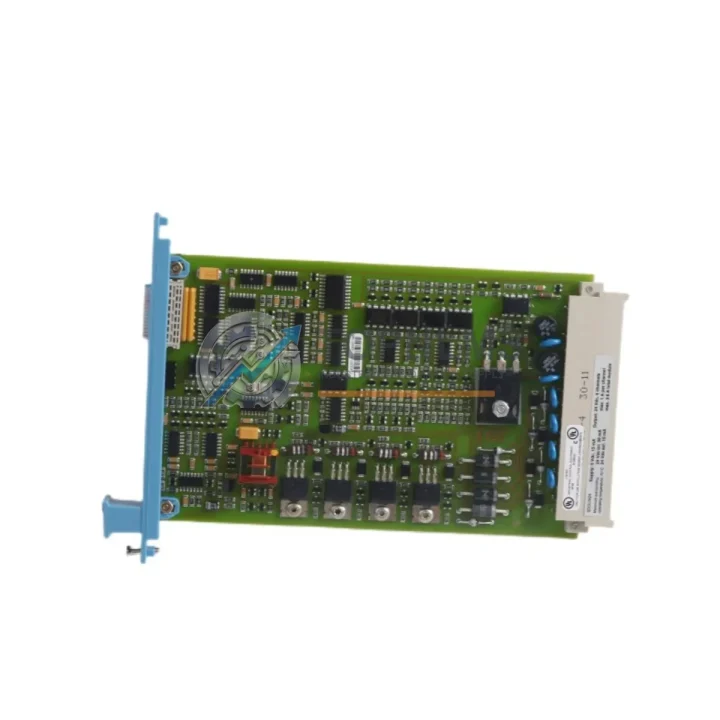

The Honeywell FC-SDOL-0424 is a 24-channel, 24VDC Safety Digital Output Module designed for the Honeywell Safety Manager (SM) series — one of the most widely deployed Safety Instrumented System (SIS) platforms in process industries including oil & gas, petrochemical, power generation, and chemical manufacturing. As legacy Safety Manager installations approach end-of-life or require capacity expansion, sourcing a verified replacement or upgrade-compatible FC-SDOL-0424 is critical to maintaining SIL2/SIL3 loop integrity without triggering a full system redesign.

TOPNLMS supplies the FC-SDOL-0424 as a direct drop-in replacement for existing Safety Manager racks. Each unit is tested, inspected, and shipped with a 12-month warranty, supporting procurement teams, MRO buyers, and system integrators who need a reliable spare or upgrade path with minimal engineering overhead.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FC-SDOL-0424 replacement or system expansion rarely involves a single module in isolation. In practice, Safety Manager modernization projects require coordinated sourcing of several interdependent components. When upgrading or expanding your SM installation, the following components are commonly required alongside the FC-SDOL-0424:

The FC-SDIL-0824 Safety Digital Input Module is the natural companion to the DO module — both share the same rack slot form factor and FTA wiring interface, making it straightforward to balance input and output channel capacity during a system expansion. For analog process variables such as pressure, temperature, or flow, the FC-SAIM-0824 Safety Analog Input Module integrates directly into the same SM I/O rack without additional hardware adapters.

Power integrity is foundational to SIL-rated systems. The FC-PSU-0024 Power Supply Unit for the Safety Manager chassis ensures that additional I/O modules added during an upgrade receive stable, redundant 24VDC power without overloading the existing power budget. When the project involves expanding rack capacity, the FC-RKCX-0800 I/O Expansion Rack provides additional slots while maintaining backplane communication continuity with the SM controller.

For sites migrating from older Honeywell FSC (Fail-Safe Controller) platforms to the Safety Manager architecture, the transition typically involves remapping field wiring from FSC FTA terminal blocks to SM-compatible Field Termination Assemblies. The FC-FTA-0024 Field Termination Assembly is the standard interface between field cables and the FC-SDOL-0424, preserving existing cable runs and minimizing rewiring labor during cutover.

Communication between the Safety Manager and the plant DCS — often a Honeywell Experion PKS or a third-party system via Modbus TCP or PROFIBUS — is handled through the SM communication modules. Ensuring the FC-SDNM-0001 Safety Network Module is current and correctly configured is a prerequisite before commissioning any new I/O module. For sites using Honeywell’s Safety Builder engineering workstation software, a compatible SM Programming Cable and updated I/O configuration database are required to recognize the replacement FC-SDOL-0424 and validate its channel assignments before going live.

Finally, for installations where the FC-SDOL-0424 drives solenoid valves or relay outputs through signal isolators, verifying that existing galvanic signal isolators and intrinsic safety barriers remain within the approved SIL loop calculation is an essential step in the retrofit validation process.

Retrofit Guidance FAQ

Q: Can I replace the FC-SDOL-0424 without rewiring field cables?
A: Yes, in most cases. If the existing Field Termination Assembly (FTA) is retained and undamaged, the FC-SDOL-0424 slots directly into the SM I/O rack and connects to the FTA via the standard module connector. Field cable terminations at the FTA do not need to be disturbed, significantly reducing cutover time and the risk of wiring errors.

Q: Do I need to modify the Safety Builder configuration after replacing the module?
A: A like-for-like replacement of the same FC-SDOL-0424 revision typically requires only a module re-initialization in Safety Builder — no logic changes are needed. If the replacement unit is a different hardware revision, a configuration download and functional test of all 24 output channels is recommended before returning the loop to service.

Q: Is the FC-SDOL-0424 compatible with both SIL2 and SIL3 safety loops?
A: Yes. The FC-SDOL-0424 is certified for use in SIL2 and SIL3 applications when installed and configured in accordance with Honeywell’s Safety Manager System Manual and the applicable IEC 61511 loop design requirements. SIL3 applications typically require redundant module configurations — consult your SIL verification documentation before finalizing the architecture.

Q: What communication protocol does the FC-SDOL-0424 use?
A: The FC-SDOL-0424 communicates exclusively over the Safety Manager internal backplane bus. It does not require external fieldbus configuration. Integration with plant-level systems (DCS, SCADA) is handled at the SM controller level via the network communication modules, not at the I/O module level.

Q: How much physical space does the module require?
A: The FC-SDOL-0424 occupies one standard SM I/O rack slot. No chassis modification, additional mounting hardware, or spacing adjustment is required. The module’s form factor is identical to other SM I/O modules, ensuring physical interchangeability within the same rack.

Q: What is the lead time and shipping arrangement?
A: Units in stock ship within 1–3 business days from Xiamen, China via DHL Express, FedEx International Priority, or sea freight depending on order volume and destination. Expedited shipping is available for urgent plant maintenance requirements.

Warranty Assurance

Every FC-SDOL-0424 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our quality assurance process includes pre-shipment functional testing, visual inspection for physical damage, and verification of firmware/hardware revision markings. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. We maintain stock of common Safety Manager I/O modules to support rapid warranty exchanges without extended lead times.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices aligned with import/export compliance requirements. Volume orders and blanket purchase agreements are supported for MRO and project procurement programs.
