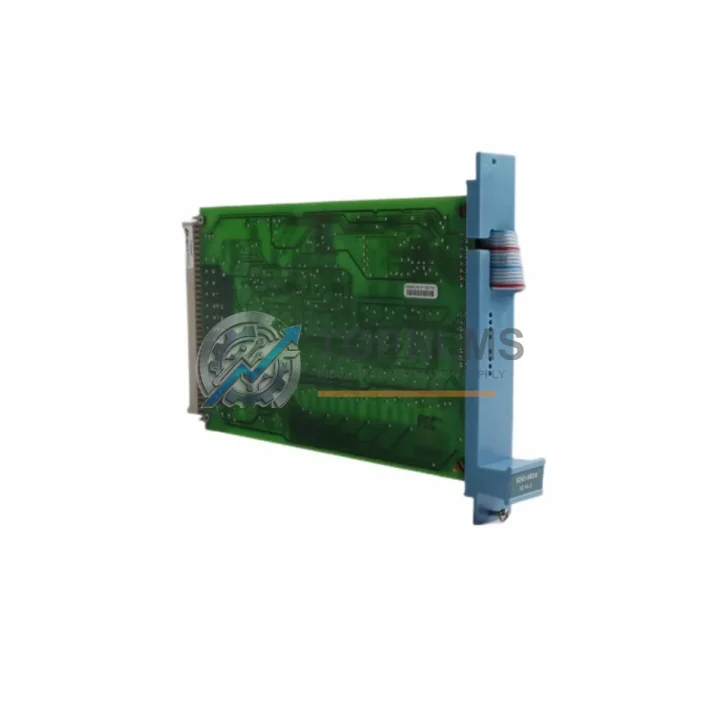

Honeywell FC-SDIL-1608 V1.1 Safety Manager DI Upgrade

Product Overview

Honeywell FC-SDIL-1608 V1.1 Safety Manager DI Upgrade: Seamless Transition from Legacy Safety Systems

The Honeywell FC-SDIL-1608 V1.1 is a 16-channel Safety Digital Input Module designed for the Honeywell Safety Manager platform, certified to SIL2 and SIL3 integrity levels under IEC 61508 and IEC 61511. As aging safety instrumented systems (SIS) reach end-of-life or face discontinued spare part availability, plant engineers and procurement teams are increasingly seeking verified replacement and upgrade paths that preserve existing wiring infrastructure, minimize engineering rework, and reduce unplanned shutdown risk.

At TOPNLMS, we specialize in sourcing, testing, and supplying hard-to-find and discontinued industrial automation components. The FC-SDIL-1608 V1.1 is stocked and ready to ship from our Xiamen warehouse, with full pre-shipment functional verification and a 12-month replacement warranty — giving your maintenance and reliability teams the confidence to proceed with planned or emergency replacements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or within the Honeywell Safety Manager platform rarely involves a single module swap. In practice, field engineers replacing an FC-SDIL-1608 V1.1 are often simultaneously addressing adjacent components in the same safety loop or control cabinet. The FC-SDIL-1608 V1.1 mounts into the Safety Manager I/O chassis alongside companion modules such as the FC-SDOL-0808 V1.x safety digital output module, which handles the corresponding actuator-side signals in the same SIL-rated loop. Where analog process variables feed into the safety logic, the FC-SAIL-0404 V1.x safety analog input module occupies adjacent slots and shares the same backplane communication architecture, simplifying loop checkout and FAT procedures.

Power integrity is critical in any SIS retrofit. The FC-PSU-0024 V1.x Safety Manager power supply module provides the redundant 24 VDC rail that feeds the I/O chassis, and should be inspected or replaced concurrently when the DI module is swapped — particularly in systems that have been in continuous service for more than five years. For sites migrating from a Honeywell FSC (Fail-Safe Controller) platform, the transition typically also involves replacing the FSC-CPU and associated FSC I/O modules with their Safety Manager equivalents, a process that requires careful mapping of existing field wiring to the new SM terminal bases.

Communication continuity is another key concern. Many legacy SIS installations relied on Modbus RTU or HART field device protocols. The Safety Manager platform supports these through dedicated communication modules such as the FC-RAIC-0002 V1.x HART analog input card, enabling engineers to retain existing HART-enabled field instruments — pressure transmitters, flow meters, and level switches — without rewiring. For sites that require integration with a Honeywell Experion PKS DCS, the Safety Manager communicates via the Safety Builder engineering environment and the FTE (Fault Tolerant Ethernet) network, which may also require updating the FC-ECOM-0002 V1.x Ethernet communication module in the SM chassis.

In control cabinet retrofit projects, physical space allocation is a frequent constraint. The FC-SDIL-1608 V1.1 occupies a single I/O slot in the SM chassis, and its compact form factor allows engineers to consolidate multiple legacy DI cards into fewer SM slots, freeing cabinet space for additional signal isolators, surge protection barriers, or terminal blocks. Where field signals originate from hazardous areas, Zener barriers or galvanic isolators remain in the signal path and are fully compatible with the 24 VDC NAMUR input standard supported by this module.

Retrofit Guidance FAQ

Q: Can the FC-SDIL-1608 V1.1 be used as a direct replacement for an older FC-SDIL-1608 without the V1.1 revision?
A: In most cases, yes. The V1.1 revision typically reflects firmware or minor hardware improvements that are backward compatible within the Safety Manager platform. However, always verify the SM system firmware version and consult the Honeywell Safety Manager release notes to confirm compatibility before installation.

Q: Does replacing this module require a safety system proof test or bypass?
A: Yes. Any modification to a safety instrumented function (SIF) — including module replacement — should follow your site’s Management of Change (MOC) procedure and may require a partial or full proof test of the affected safety loop per IEC 61511 requirements. The SM platform supports online module replacement with hot-swap capability, which can minimize the bypass window.

Q: Is the field wiring compatible when migrating from an FSC DI module?
A: Field wiring termination points differ between FSC and Safety Manager terminal bases. A wiring adapter or re-termination to the SM terminal base is typically required. Signal types (24 VDC dry contact or NAMUR) are generally compatible, but wire labeling and loop documentation should be updated as part of the migration.

Q: What programming changes are needed after module replacement?
A: For a like-for-like replacement within the Safety Manager platform (same slot, same module type), no Safety Builder application logic changes are required. The module is recognized automatically by the SM controller. For migrations from FSC, the safety application must be re-engineered in Safety Builder, as FSC and SM use different programming environments and logic structures.

Q: What communication protocols does this module support?
A: The FC-SDIL-1608 V1.1 communicates exclusively via the Safety Manager proprietary backplane bus. Field-side inputs accept standard 24 VDC discrete signals (dry contact or NAMUR). Integration with higher-level systems (DCS, SCADA) is handled at the SM controller level, not at the individual I/O module level.

Q: What are the physical installation space requirements?
A: The module occupies one I/O slot in the Safety Manager I/O chassis. Chassis options include 4-slot, 8-slot, and 16-slot configurations. Ensure the target chassis has an available slot and that the SM controller’s I/O capacity has not been exceeded before installation.

Warranty Assurance

Every FC-SDIL-1608 V1.1 unit shipped by TOPNLMS undergoes a structured pre-shipment inspection process that includes visual inspection for physical damage, connector integrity verification, firmware revision confirmation, and functional power-on testing where applicable. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

All units are covered by a 12-month replacement warranty from the date of shipment. In the event of a confirmed defect or functional failure within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost. Our after-sales response target is within 24 business hours of a warranty claim submission.

For procurement teams managing critical spare parts inventories, we can provide batch testing reports, serialized unit records, and export documentation (commercial invoice, packing list, certificate of origin) to support your incoming inspection and ERP receiving processes. Expedited shipping via DHL, FedEx, or UPS Express is available for emergency replacement orders.

Contact our technical sales team to confirm stock availability, request a quotation, or discuss volume pricing for safety spare parts programs.
