Honeywell FC-SDIL-1608 Ruggedized Discrete Input Module

Product Overview

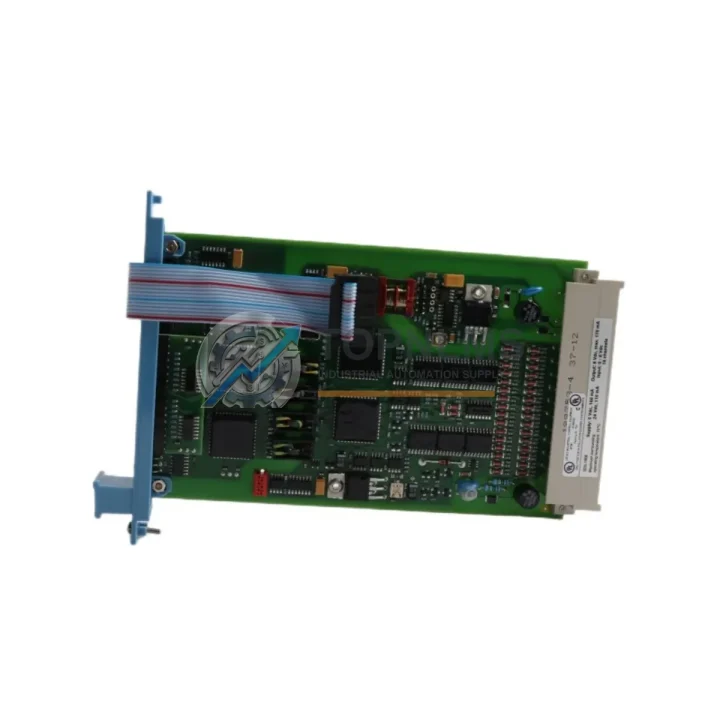

Honeywell FC-SDIL-1608 Ruggedized Discrete Input Module for Harsh Industrial Environments

The Honeywell FC-SDIL-1608 is a 16-channel discrete input module engineered for the Experion PKS Series C Distributed Control System (DCS) platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process plants, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers the signal integrity and system stability that mission-critical infrastructure demands. Whether deployed in a continuous petrochemical production line or a high-cycle power generation facility, the FC-SDIL-1608 maintains deterministic I/O performance without compromise.

Rugged Specifications Table

Comprehensive Protection Solutions

The FC-SDIL-1608 does not operate in isolation — it is a critical node within a broader Experion PKS control architecture. In a typical Series C DCS cabinet, this discrete input module works in concert with the FC-SDOA-1608 discrete output module to form a complete digital I/O pair, enabling closed-loop control of field devices such as solenoid valves, motor starters, and safety interlocks. The FC-SMAI-1620 analog input module handles continuous process variables — temperature, pressure, and flow — while the FC-SDIL-1608 captures binary state signals from limit switches, proximity sensors, and emergency shutdown (ESD) pushbuttons.

System redundancy is maintained through the FC-RPSM-0001 redundant power supply module, which ensures uninterrupted 24 VDC field power even during a single-point power failure. The FC-SCMM-0001 communication module manages data exchange between the I/O chassis and the Experion PKS server, maintaining real-time process visibility. For installations requiring functional safety compliance, the FC-SDIL-1608 is typically paired with Honeywell Safety Manager safety logic controllers and FC-TSAI-1620 safety analog input modules to form an integrated SIL-rated safety instrumented system (SIS).

Terminal connectivity is managed through Honeywell Series C I/O terminal blocks and marshalling panels, which provide organized, labeled field wiring termination points that simplify maintenance and reduce the risk of mis-wiring during panel modifications. In high-EMI environments such as arc furnace facilities or variable frequency drive (VFD)-dense motor control centers, the module’s built-in signal isolation prevents ground loops and noise injection that could cause spurious trips or false input readings. The Experion PKS C300 controller — the primary processing unit in Series C architectures — polls the FC-SDIL-1608 at deterministic scan rates, ensuring that discrete state changes are captured and acted upon within the control system’s defined response time.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the FC-SDIL-1608 monitors wellhead valve positions, pipeline pig detector switches, and emergency shutdown (ESD) system status signals. Its isolation architecture prevents hazardous area ground faults from propagating into the control room, a requirement in ATEX and IECEx classified zones when used with appropriate field barriers.

In coal-fired and gas-fired power generation plants, the module captures turbine trip signals, breaker status, and auxiliary equipment run/stop feedback. The deterministic scan performance of the Experion PKS Series C platform ensures that protective relay signals are processed within the required response windows defined by NERC CIP and plant safety studies.

In mining and mineral processing operations, where vibration from crushers, conveyors, and ball mills is constant, the FC-SDIL-1608’s robust backplane connection and conformal-coated PCB construction resist mechanical stress and airborne particulate contamination. Conveyor belt alignment switches, chute blockage detectors, and sump pump level switches all feed into the module’s 16 input channels, giving operators a complete picture of material handling system status.

In water and wastewater treatment facilities, the module monitors pump run/fail status, valve open/closed confirmation, and high-level float switch signals across multiple lift stations and treatment stages. Its wide operating temperature range accommodates both heated indoor pump rooms and unheated outdoor junction boxes in temperate climates.

In metallurgical and steel production environments, where electromagnetic interference from induction furnaces and large DC drives is severe, the module’s galvanic isolation between field inputs and the backplane bus prevents noise-induced data corruption that could lead to unplanned shutdowns or unsafe control actions.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the FC-SDIL-1608?
All FC-SDIL-1608 modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with Honeywell’s published specifications. Warranty claims are processed promptly with replacement or repair options available.

Q2: How is each module tested before shipment?
Every FC-SDIL-1608 unit undergoes a multi-point pre-shipment inspection that includes visual inspection for physical damage, power-on functional verification, and channel-level I/O continuity testing. Modules that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the FC-SDIL-1608 compatible with existing Experion PKS Series C installations?
Yes. The FC-SDIL-1608 is a direct OEM replacement for existing Series C I/O chassis installations. It is plug-compatible with the standard Experion PKS Series C backplane and requires no firmware modification or reconfiguration of the C300 controller when used as a like-for-like replacement. Always verify the revision level against your system’s I/O configuration database before installation.

Q4: Can TOPNLMS support long-term or repeat supply requirements?
Yes. TOPNLMS maintains dedicated inventory of Honeywell Experion PKS Series C I/O modules to support both emergency spare part requirements and planned maintenance programs. We offer volume pricing for multi-unit orders and can coordinate phased delivery schedules to align with planned plant shutdowns or DCS upgrade projects. Contact our technical sales team to discuss your specific supply requirements.
