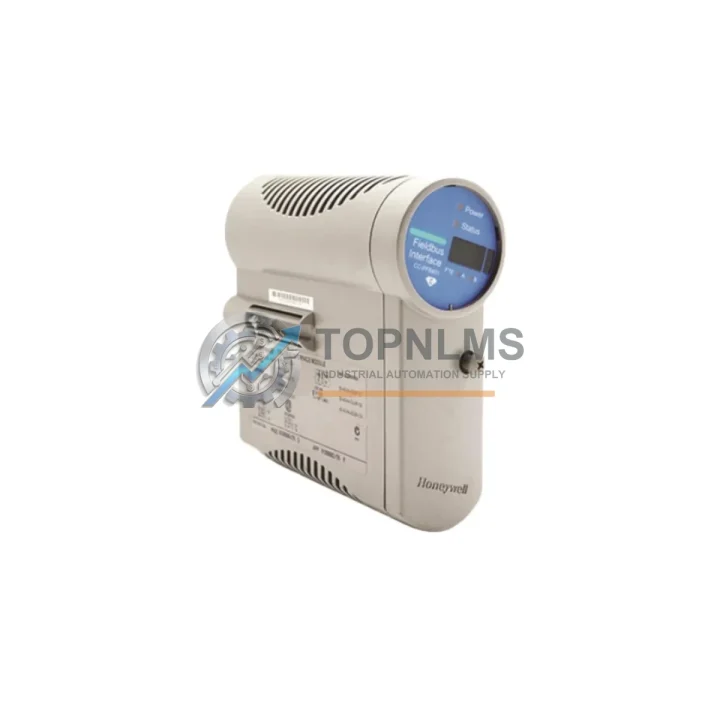

Honeywell FC-PUI001 Replacement for Experion Series C DCS

Product Overview

Honeywell FC-PUI001 Replacement for Experion Series C DCS: Smooth Migration & Backward-Compatible Upgrade

The Honeywell FC-PUI001 Universal I/O Module is a field-proven component within the Experion PKS Series C distributed control system architecture. For facilities operating legacy Honeywell TDC 3000, PlantScape, or early Experion R100–R300 platforms, the FC-PUI001 represents the most direct, wiring-compatible upgrade path available — eliminating the need for full cabinet redesigns or costly re-engineering of field termination assemblies.

When a plant transitions from an older Universal I/O chassis to the current Series C backplane, the FC-PUI001 slots directly into the FC-PSDV001 Series C I/O Link Extender rack without requiring new field wiring. Signal types — including 4–20 mA analog inputs, discrete 24 VDC I/O, RTD, and thermocouple inputs — are handled natively, preserving the existing marshalling cabinet layout. This is critical for brownfield retrofits where minimizing downtime and avoiding field re-termination are primary engineering constraints.

Migration projects that involve replacing the FC-TSAI-1620M Analog Input Terminal Assembly or the FC-TSDO-0824 Digital Output Terminal Assembly benefit directly from the FC-PUI001’s universal channel configuration. Each channel can be independently configured via Experion Control Builder software, meaning a single module can replace multiple legacy single-function I/O cards — reducing slot count, simplifying spare-parts inventory, and lowering the total cost of the migration.

For systems still running the Honeywell HC900 Hybrid Controller or early C300 Controller nodes, the FC-PUI001 integrates seamlessly over the FTE (Fault Tolerant Ethernet) backbone. No protocol conversion gateway is required. The module communicates natively with the C300 Controller via the Series C I/O Link, and existing Experion SCADA tags, alarm configurations, and historian bindings remain intact after the swap — dramatically reducing commissioning time on the control room side.

Power supply compatibility is another key migration consideration. The FC-PUI001 operates from the standard FC-PSU24-0500 24 VDC I/O Power Supply already present in most Series C cabinets. No additional power rail modifications are needed, which is a significant advantage when working within the physical constraints of an existing control cabinet — particularly in retrofit scenarios where DIN rail space and cable routing are already optimized.

For sites upgrading from third-party DCS platforms — including legacy Foxboro I/A Series, ABB Advant, or Yokogawa CENTUM CS — the FC-PUI001 can be integrated as part of a phased migration strategy. In these scenarios, it is common to deploy the module alongside a Honeywell IOLIM I/O Link Interface Module to bridge legacy field bus segments during the transition period, allowing continued operation of existing field devices while the new Experion backbone is commissioned in parallel.

Physical installation follows standard Series C guidelines: the module occupies a single slot in the FC-PSDV001 carrier, requires no jumper configuration, and is hot-swappable in redundant configurations. Firmware is loaded automatically from the C300 Controller upon insertion, eliminating manual firmware management during replacement. This is especially valuable in 24/7 continuous-process environments — petrochemical, power generation, pharmaceutical — where unplanned downtime carries significant operational cost.

For procurement teams, the FC-PUI001 is available as a tested, serialized unit with full functional verification prior to shipment. Each unit undergoes bench testing against Honeywell’s published I/O accuracy and channel isolation specifications. Units ship with original documentation where available, and all orders are covered by a 12-month replacement warranty from the date of delivery.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Series C migration typically involves more than a single module swap. The FC-PUI001 is most commonly deployed alongside the FC-PSDV001 I/O Link Extender carrier, which provides the physical backplane and I/O Link connectivity for up to 40 Universal I/O modules per node. For sites expanding I/O capacity, the FC-SDIL-0100 Series C I/O Link cable assembly is used to extend the I/O Link segment between cabinets without signal degradation.

Terminal assembly selection depends on field signal type: the FC-TSAI-1620M handles analog inputs, while the FC-TSDO-0824 covers digital outputs — both mount directly to the FC-PUI001 without adapter plates. For HART-enabled field instruments, the FC-PUI001’s built-in HART multiplexer eliminates the need for a separate HART Interface Module (HIM), reducing cabinet footprint. Power distribution within the cabinet is managed by the FC-PSU24-0500, which provides regulated 24 VDC to the I/O bus. For larger migration projects requiring a new controller node, the Honeywell C300 Controller serves as the primary processing unit, with the FC-PUI001 modules reporting directly over the Series C I/O Link. HMI integration is handled through Experion Station or third-party OPC-DA/UA clients connected to the Experion server — no additional protocol converter is required when migrating from legacy Honeywell platforms.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing legacy single-function I/O cards with the FC-PUI001?
A: Yes, in most cases. The FC-PUI001 uses the same FC-TSAI and FC-TSDO terminal assemblies as other Series C modules. If your existing marshalling is wired to these terminal assemblies, no field re-termination is required.

Q: Do I need to modify my Experion control strategy after replacing a legacy module with FC-PUI001?
A: Channel re-configuration in Control Builder is required to define signal type per channel, but existing function blocks, tag names, and historian bindings are preserved. No re-download of the full control strategy is necessary in most upgrade scenarios.

Q: Is the FC-PUI001 compatible with HART field instruments?
A: Yes. The module supports HART pass-through on analog channels, allowing HART-enabled transmitters and valve positioners to communicate with the Experion HART Interface without additional hardware.

Q: What is the physical space requirement for the FC-PUI001?
A: The module occupies one slot in the FC-PSDV001 carrier. Standard Series C cabinets accommodate up to 40 modules per I/O Link node, making it straightforward to consolidate multiple legacy cards into fewer FC-PUI001 slots.

Q: Can the FC-PUI001 be used in a non-Honeywell DCS migration?
A: The FC-PUI001 is designed for the Experion PKS Series C platform. For migrations from third-party DCS systems, an IOLIM interface module may be required during the transition period to bridge legacy field bus segments.

Warranty Assurance

Every Honeywell FC-PUI001 unit supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of confirmed delivery. Prior to shipment, each unit undergoes functional bench testing — including channel accuracy verification, I/O Link communication check, and power supply rail validation — to ensure it meets Honeywell’s published specifications.

Units are shipped in anti-static packaging with serialized labeling. Expedited shipping options are available for urgent plant maintenance requirements, with dispatch from our Xiamen warehouse typically within 1–3 business days of order confirmation. For bulk procurement or project-based orders, dedicated account support and consolidated shipment scheduling are available upon request.

In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement at no additional cost, including return shipping coordination. Our after-sales response target is 24 hours for warranty claims, with replacement units dispatched within 3–5 business days subject to stock availability.

For procurement inquiries, technical compatibility questions, or project-based volume pricing, contact our industrial automation team directly.
