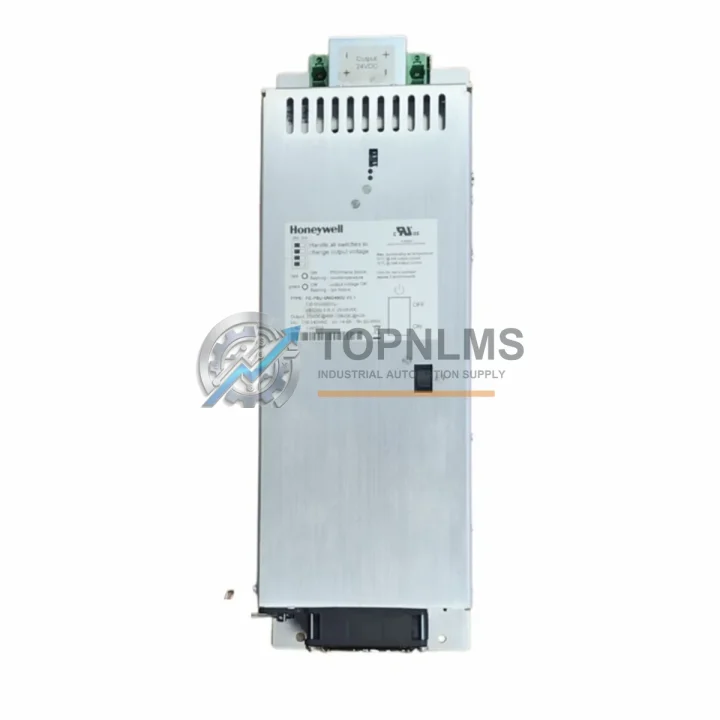

Honeywell FC-PSU-UNI2450U V2.1 Replacement for Experion PKS

Product Overview

Honeywell FC-PSU-UNI2450U V2.1 Replacement for Experion PKS: Seamless Transition & Legacy System Compatibility

When your Honeywell Experion PKS or Safety Manager control system relies on the FC-PSU-UNI2450U V2.1 Universal Power Supply Module, any unplanned failure or end-of-life notification can trigger an urgent search for a verified replacement. TOPNLMS stocks the FC-PSU-UNI2450U V2.1 as a direct, form-fit-function replacement, enabling your engineering team to restore system integrity with minimal downtime and zero re-engineering of the existing power distribution architecture.

The FC-PSU-UNI2450U V2.1 is a universal-input power supply module designed for the Honeywell Experion PKS chassis environment. It accepts a wide AC/DC input range, making it compatible with both 110 V and 220 V site power standards without hardware modification. The module slots directly into the standard Experion PKS power supply bay, sharing the same DIN-rail footprint and connector pinout as earlier revisions, which means no rewiring of the existing power harness or cabinet layout changes are required during a like-for-like swap.

For sites migrating from older Honeywell TDC 3000 or PlantScape systems to Experion PKS, the FC-PSU-UNI2450U V2.1 is a critical infrastructure component. During such migrations, the power supply module must support the new C300 Controller, the IOLIM I/O Link Interface Module, and the associated Series C I/O modules simultaneously. The V2.1 revision provides sufficient current headroom to power a fully populated chassis containing C300 controllers alongside HART-enabled AI/AO modules and DI/DO modules without derating, which is a common concern when consolidating legacy TDC 3000 cabinets into a smaller Experion PKS footprint.

In Safety Manager applications, the FC-PSU-UNI2450U V2.1 is paired with the SM Controller and associated Safety Manager I/O modules. The power supply’s redundancy-ready design allows it to operate in a 1+1 redundant power configuration within the Safety Manager chassis, ensuring SIL-rated availability is maintained even during a single power supply failure. When replacing a failed unit in a live Safety Manager system, the hot-swap capability of the V2.1 module allows removal and reinsertion without de-energizing the chassis, provided the redundant partner module is healthy — a critical feature for facilities that cannot tolerate a safety system shutdown.

Sites running Experion PKS with the EPKS Chassis Backplane and multiple C200 or C300 Controllers will find that the FC-PSU-UNI2450U V2.1 integrates without any firmware or configuration changes in Honeywell Control Builder. The module is transparent to the software layer; it does not appear as a configurable node in the Experion Station or Control Builder project tree, which eliminates the risk of accidental configuration mismatch during replacement. Field engineers can complete the physical swap, verify LED status indicators, and return the system to normal operation without involving the DCS programming team.

For brownfield upgrade projects where aging Honeywell HPM (High-Performance Process Manager) modules are being retired and replaced with Experion PKS C300 controllers, the power supply infrastructure is often the first component to be standardized. Replacing legacy HPM power supplies with the FC-PSU-UNI2450U V2.1 across all new Experion PKS chassis ensures a uniform spare parts strategy, simplifying procurement and reducing the number of unique part numbers held in the plant’s MRO inventory. This is particularly valuable for multi-unit facilities managing dozens of control cabinets across a refinery or chemical plant.

Communication infrastructure within the Experion PKS architecture — including the FTE (Fault Tolerant Ethernet) switches, the EPLCG Ethernet to ControlNet Gateway, and the Series C Remote I/O nodes — all depend on stable, regulated DC power derived from the chassis power supply. The FC-PSU-UNI2450U V2.1’s regulated 24 VDC output maintains tight voltage tolerance under varying load conditions, which is essential for the reliable operation of HART pass-through communication on analog I/O modules and for maintaining the integrity of Modbus or PROFIBUS DP signals routed through gateway modules installed in the same chassis.

When planning a scheduled outage for power supply replacement, TOPNLMS recommends pre-staging the FC-PSU-UNI2450U V2.1 on-site at least 48 hours before the maintenance window. Our standard pre-shipment testing protocol verifies output voltage regulation, inrush current limiting, and fault protection circuitry before dispatch. Each unit ships with a test report, and the 12-month warranty period begins from the date of invoice, not the date of installation, giving your team flexibility in scheduling the actual replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Experion PKS power supply replacement rarely happens in isolation. In most brownfield migration and upgrade projects, the FC-PSU-UNI2450U V2.1 is deployed alongside a broader set of infrastructure changes. During C300 Controller upgrades, engineers typically also address the Experion PKS C300 Controller Module and its associated CEE (Control Execution Environment) firmware to ensure the new power supply is paired with a current-revision controller. In Safety Manager retrofits, the SM Controller Module and Safety Manager I/O Modules are commonly replaced in the same maintenance window to standardize the revision baseline across the safety system chassis.

For sites expanding I/O capacity during the migration, the Series C Analog Input (AI) Module and Series C Digital Output (DO) Module are frequently added to the same chassis that receives the new FC-PSU-UNI2450U V2.1, taking advantage of the power headroom the V2.1 provides. Communication infrastructure upgrades often include the IOLIM I/O Link Interface Module for connecting remote I/O nodes, and the FTE (Fault Tolerant Ethernet) Network Switch to support the dual-redundant Ethernet backbone that Experion PKS relies on for controller-to-server communication.

In legacy TDC 3000 to Experion PKS migration projects, the EPLCG Ethernet to ControlNet Gateway is a transitional component that allows existing ControlNet-based I/O to remain in service while the new Experion PKS infrastructure is commissioned in parallel. Signal conditioning requirements during migration are addressed with DIN-rail mounted signal isolators and terminal block assemblies, which adapt legacy field wiring to the new Series C I/O module connector format without requiring full field cable replacement — a significant cost and schedule saving on large brownfield projects.

Retrofit Guidance FAQ

Q: Does replacing the FC-PSU-UNI2450U V2.1 require any changes to the Honeywell Control Builder project?
A: No. The power supply module is not a configurable node in Control Builder or Experion Station. The replacement is purely a hardware swap. No project download or controller restart is required if the redundant power supply remains healthy during the swap.

Q: Can the FC-PSU-UNI2450U V2.1 be hot-swapped in a live Experion PKS system?
A: Yes, provided the chassis is configured for 1+1 redundant power supply operation and the partner module is healthy. The V2.1 revision fully supports hot-swap insertion and removal. Always verify the partner module’s status LED before initiating the swap.

Q: Is the V2.1 revision backward compatible with chassis originally populated with V1.x power supplies?
A: Yes. The V2.1 is a direct form-fit-function replacement for earlier revisions. The connector pinout, physical dimensions, and electrical interface are identical. No chassis modification or adapter is required.

Q: Will the replacement affect HART communication on analog I/O modules in the same chassis?
A: No. The FC-PSU-UNI2450U V2.1 provides the same regulated 24 VDC output as the original unit. HART pass-through communication on Series C AI/AO modules is unaffected by the power supply revision change.

Q: What is the lead time for the FC-PSU-UNI2450U V2.1 from TOPNLMS?
A: Units in stock ship within 1–3 business days from our Xiamen warehouse. Express international shipping (DHL/FedEx) is available for urgent requirements. Contact [email protected] or +86 18359293191 for real-time stock confirmation.

Q: Can TOPNLMS supply multiple units for a fleet-wide spare parts standardization program?
A: Yes. We support bulk procurement for MRO spare parts programs. Volume pricing and consolidated shipping are available. Please contact our sales team with your quantity requirements and delivery schedule.

Warranty Assurance

Every FC-PSU-UNI2450U V2.1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of invoice. Prior to dispatch, each unit undergoes a pre-shipment functional test covering output voltage regulation, inrush current limiting, over-voltage protection, and short-circuit protection. A test report is included with each shipment.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution confirmation. Replacement units are dispatched from Xiamen with priority shipping to minimize your system downtime.

For procurement teams requiring documentation, we can provide a Certificate of Conformance, packing list, and commercial invoice with HS code declaration for customs clearance. All units are shipped with ESD-protective packaging and are traceable to our incoming inspection records.

TOPNLMS has supplied Honeywell Experion PKS and Safety Manager components to industrial facilities across Asia, the Middle East, and Europe. Our focus on specification accuracy, pre-shipment testing, and responsive after-sales support makes us a reliable source for both emergency replacement and planned MRO procurement.
