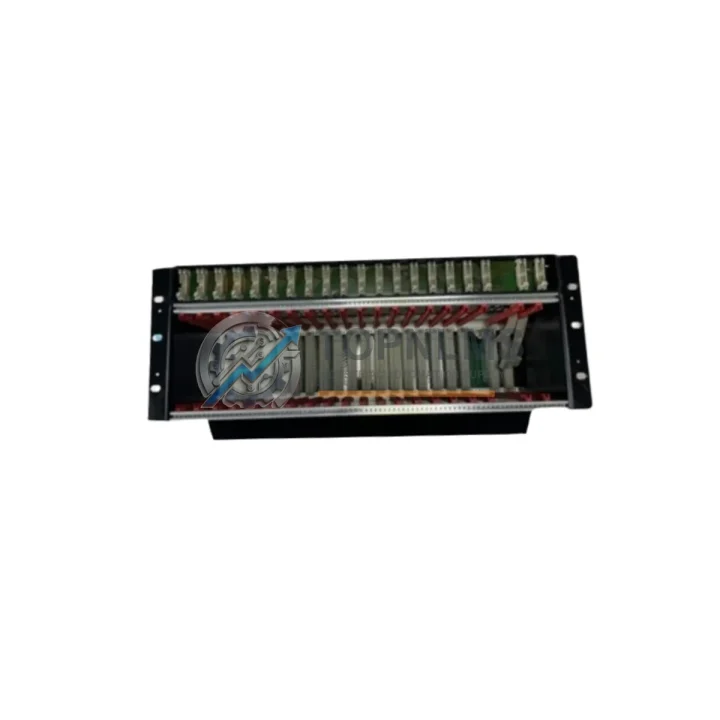

Honeywell FC-IOCHAS-0001R Ruggedized Redundant I/O Chassis

Product Overview

Honeywell FC-IOCHAS-0001R Ruggedized Redundant I/O Chassis: Industrial Resilience for Harsh Environments

The Honeywell FC-IOCHAS-0001R is a ruggedized Redundant I/O Chassis engineered for the Experion PKS Series C Distributed Control System (DCS) platform. Designed to sustain continuous, fault-tolerant operation in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, vibration-intensive heavy manufacturing floors, and electromagnetically noisy power generation plants — this chassis delivers the structural and electrical resilience that mission-critical automation demands.

As the physical backbone of the Experion PKS I/O subsystem, the FC-IOCHAS-0001R provides a mechanically robust, thermally managed enclosure that houses redundant I/O modules while maintaining uninterrupted signal integrity. Its dual-redundant architecture ensures that a single module or communication path failure does not interrupt process control, making it the preferred chassis solution for safety-instrumented systems and high-availability production lines in oil and gas, petrochemical, electric power, water treatment, metallurgy, and mining industries.

Rugged Specifications Table

Comprehensive Protection Solutions

The FC-IOCHAS-0001R does not operate in isolation — it is the structural hub of a tightly integrated Experion PKS control architecture. In a typical Series C control cabinet, this chassis houses redundant pairs of Honeywell FC-SDO-0824 Digital Output Modules and FC-SDI-1624 Digital Input Modules, which together manage discrete field signals from safety valves, motor starters, and emergency shutdown actuators. Analog process variables — pressure, temperature, flow, and level — are conditioned and transmitted through FC-SAI-1620M Analog Input Modules mounted in adjacent slots of the same chassis, ensuring all signals share a common, redundancy-protected backplane.

Chassis power integrity is maintained by the FC-PSU-0024 Redundant Power Supply Unit, which feeds regulated 24 VDC to all installed I/O modules. In high-availability installations, a secondary PSU operates in hot-standby mode, so any power supply fault triggers an automatic, bumpless transfer with no interruption to field I/O scanning. The chassis communicates upstream to the Honeywell C300 Process Controller via the Fault Tolerant Ethernet (FTE) backplane bus — a dual-star, switched Ethernet architecture that eliminates single points of failure across the entire control network.

For process safety applications governed by IEC 61511 or IEC 61508, the FC-IOCHAS-0001R chassis is frequently deployed alongside Honeywell Safety Manager SC safety logic solvers and FC-TSAI-1620M Safety Analog Input Modules, forming a complete Safety Instrumented System (SIS) I/O layer. Communication between the DCS and SIS layers is handled through Honeywell FTE Communication Modules, maintaining deterministic, low-latency data exchange even under heavy electromagnetic interference from variable frequency drives (VFDs), large motor contactors, and high-voltage bus bars common in heavy industrial environments.

Terminal connectivity to field instruments is achieved through Honeywell MC-TAIH12 I/O Terminal Assemblies, which provide marshalled wiring panels that decouple field cable management from the chassis itself — a critical feature during maintenance windows that allows technicians to replace or test I/O modules without disturbing field wiring. This hot-swap, non-intrusive serviceability is essential in continuous-process industries where planned shutdowns are measured in years, not months.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities — offshore platforms, onshore gas compression stations, and pipeline SCADA nodes — the FC-IOCHAS-0001R provides the redundant I/O backbone for wellhead control panels and emergency shutdown (ESD) systems. Salt-laden marine air, wide diurnal temperature swings, and persistent mechanical vibration from rotating equipment are constant stressors; the chassis’s sealed backplane connectors and conformal-coated PCBs resist corrosion and maintain signal fidelity across years of unattended operation.

In coal-fired and combined-cycle power plants, the chassis manages I/O for boiler combustion control, turbine protection, and generator excitation systems. Electromagnetic interference from high-voltage switchgear and large transformers is mitigated by the FTE network’s optical isolation and the chassis’s internal EMI shielding, ensuring that 4–20 mA analog signals and 24 VDC discrete signals remain within specification even in close proximity to 110 kV bus bars.

In mining and mineral processing operations — underground coal mines, open-pit copper concentrators, and gold leach circuits — the chassis endures fine silica dust, aggressive chemical vapors, and continuous vibration from crushers and conveyors. Installed in sealed, positive-pressure control cabinets with NEMA 4X or IP65 enclosures, the FC-IOCHAS-0001R maintains full I/O redundancy for mill drive control, flotation cell automation, and tailings pump management without requiring frequent preventive maintenance interventions.

In municipal and industrial water treatment plants, the chassis supports SCADA-integrated control of pumping stations, chemical dosing systems, and membrane filtration units. High ambient humidity and chlorine-laden air are managed through the chassis’s humidity-rated components, while the redundant architecture ensures that a single card failure does not interrupt potable water delivery or wastewater compliance monitoring.

In metallurgical and steel-making facilities, extreme radiant heat from electric arc furnaces and continuous casting lines, combined with heavy vibration and airborne metallic particulates, create one of the harshest environments for electronic control equipment. The FC-IOCHAS-0001R’s wide operating temperature range and vibration-compliant mechanical design allow it to be installed in control rooms adjacent to the furnace bay, reducing cable runs and improving signal quality for critical temperature and flow control loops.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the FC-IOCHAS-0001R?
All FC-IOCHAS-0001R units shipped by TOPNLMS carry a 12-month quality warranty from the date of delivery. If the unit exhibits any manufacturing defect or functional failure under normal operating conditions within this period, TOPNLMS will arrange repair, replacement, or full refund at no additional cost. Warranty claims are processed within 5 business days of fault confirmation.

Q2: How is each unit tested before shipment?
Every FC-IOCHAS-0001R undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional verification, backplane communication integrity check, and module slot continuity testing. Units that do not pass all inspection stages are quarantined and not shipped. A test report is available upon request for customers with incoming quality control requirements.

Q3: Is this chassis compatible with both Series C and earlier Experion PKS hardware?
The FC-IOCHAS-0001R is specifically designed and validated for the Experion PKS Series C I/O architecture. While the physical form factor may appear similar to earlier Series A/B chassis, the backplane communication protocol and power rail specifications differ. TOPNLMS recommends confirming your existing controller firmware version (C300 R500 or later) and I/O module series before ordering to ensure full compatibility. Our technical team can assist with compatibility verification at no charge.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Yes. TOPNLMS maintains a dedicated inventory of Honeywell Experion PKS Series C components, including the FC-IOCHAS-0001R, to support both emergency replacement and planned maintenance procurement programs. We offer priority reservation for customers with scheduled turnaround maintenance (TAM) windows, blanket purchase order arrangements, and expedited air freight for critical plant shutdowns. Contact our team to discuss long-term supply agreements and volume pricing.
