Honeywell DC-TUIO31 Replacement/Upgrade for Experion PKS

Product Overview

Honeywell DC-TUIO31 Replacement/Upgrade for Experion PKS: Seamless Migration from Legacy DCS Systems

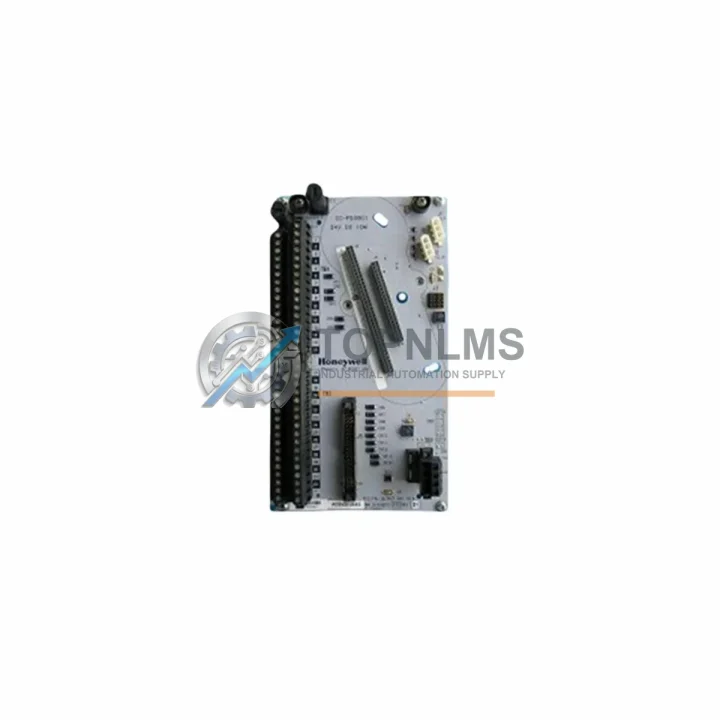

The Honeywell DC-TUIO31 is a Universal I/O Module designed for the Experion PKS (Process Knowledge System) distributed control platform. As legacy DCS installations age and original equipment reaches end-of-life, plant engineers and procurement teams increasingly require a reliable, drop-in replacement that preserves existing wiring infrastructure, retains SCADA/DCS program logic, and minimises unplanned downtime during the transition. TOPNLMS maintains verified stock of the DC-TUIO31 and ships globally from Xiamen, China, with full pre-shipment functional testing and a 12-month warranty on every unit.

Whether you are executing a planned shutdown replacement, responding to an emergency module failure, or conducting a phased modernisation of an ageing Honeywell TotalPlant Solution (TPS) or PlantScape system, the DC-TUIO31 provides the I/O flexibility and backward compatibility required to keep your process running without re-engineering the field wiring or rewriting control strategies in Experion Builder.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DC-TUIO31 migration rarely involves a single module swap. In practice, field engineers replacing a failed or obsolete I/O card within an Experion PKS cabinet must also verify the condition and compatibility of surrounding components. During the upgrade process, the following components are commonly evaluated or replaced alongside the DC-TUIO31.

The CC-TAIX11 and CC-TAIX51 analog input terminal assemblies serve as the field wiring interface for the Universal I/O module. If the existing FTA shows signs of corrosion, terminal wear, or mis-wiring from previous maintenance cycles, replacing it in parallel with the DC-TUIO31 ensures a clean, verified signal path from the field instrument to the controller. Similarly, the CC-TDIL01 digital input terminal assembly is frequently inspected when migrating discrete I/O channels to the universal module format.

On the controller side, the CC-PCF901 Experion PKS C300 Process Controller is the primary execution engine that communicates with the DC-TUIO31 over the chassis backplane. Plants running older C200 controllers (such as the CC-PCNT01) may use this migration as an opportunity to evaluate a controller upgrade as well, particularly if the existing C200 firmware is no longer receiving security patches. The CC-SCMB01 Series C Module Bus Extender is relevant when the replacement module must be installed in an extended chassis configuration, ensuring backplane signal integrity across the full I/O rack.

Power distribution within the control cabinet is another critical consideration. The CC-PWR024 24 VDC power supply module should be load-checked before commissioning the replacement DC-TUIO31, especially in cabinets where additional I/O modules have been added over time. An undersized or aging PSU is a common root cause of intermittent module faults that are incorrectly attributed to the I/O card itself.

For plants that rely on HART-enabled field instruments, the CC-TAIM51 HART multiplexer interface module works in conjunction with the DC-TUIO31 to pass HART diagnostic data from smart transmitters back to the Experion PKS asset management system. Confirming HART pass-through configuration in Control Builder is a standard commissioning step during any Universal I/O replacement project.

Communication infrastructure between the Experion PKS server and the field controllers is typically handled via the CC-LINK01 or equivalent FTE (Fault Tolerant Ethernet) switch modules. While these are not directly replaced during a DC-TUIO31 swap, network latency or switch port faults can mask themselves as I/O module errors, and a network health check is recommended as part of the pre-replacement diagnostic procedure.

Finally, for sites that use Honeywell’s Experion PKS Operator Station (OS) or third-party HMI systems connected via OPC-DA or OPC-UA, verifying that the I/O tag database reflects the new module’s channel assignments is an essential post-replacement step before returning the loop to automatic control.

Retrofit Guidance FAQ

Q: Can I replace a failed fixed-function I/O module with the DC-TUIO31 without rewiring the field terminals?
A: In most cases, yes — provided you use the correct Field Termination Assembly (FTA) that matches the original wiring pinout. The DC-TUIO31 is designed to be configured per-channel in Control Builder, so a channel previously wired as a 4–20 mA analog input can be re-declared as such without moving any field wires. Always verify the FTA model number against the Honeywell I/O module compatibility matrix before installation.

Q: Do I need to modify my existing Experion PKS control strategy to use the DC-TUIO31?
A: No structural changes to the control strategy are required if the replacement module is assigned to the same chassis slot and the channel I/O types are preserved. The module will appear to Control Builder as the same logical I/O resource. A download of the affected controller segment is required after the physical swap to synchronise the module configuration.

Q: Is the DC-TUIO31 compatible with both C200 and C300 controllers?
A: The DC-TUIO31 is primarily validated for use with the C300 controller platform. Compatibility with C200 depends on the firmware revision and chassis generation. Contact TOPNLMS with your existing controller model and firmware version for a pre-sale compatibility confirmation.

Q: What communication protocols does the DC-TUIO31 support for field instruments?
A: The module supports standard 4–20 mA analog signals, discrete 24 VDC digital I/O, and HART protocol pass-through (when used with a compatible HART multiplexer FTA). It does not natively support FOUNDATION Fieldbus or PROFIBUS — those applications require dedicated Fieldbus Interface Modules within the Experion PKS architecture.

Q: How much physical space does the DC-TUIO31 require in the control cabinet?
A: The module occupies a single slot in a standard Experion PKS I/O chassis. No additional DIN rail space or cabinet re-layout is required. The chassis itself must have at least one available slot; if the existing chassis is fully populated, a chassis expansion using the CC-SCMB01 bus extender may be necessary.

Q: What is the recommended procedure for replacing a DC-TUIO31 in a live system?
A: Place the affected I/O channels in manual mode at the operator station before removing the module. If the chassis supports hot-swap, the replacement can be performed without a controller restart. After insertion, perform a module download from Control Builder and verify all channel statuses before returning loops to automatic. Document the replacement in your site maintenance log and retain the defective module for warranty return if applicable.

Warranty Assurance

Every DC-TUIO31 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a functional verification procedure that includes power-on self-test confirmation, backplane communication check, and visual inspection for physical damage or counterfeit indicators. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund depending on the nature of the fault and the elapsed warranty period. Our after-sales response target is 24 hours for initial fault assessment and 72 hours for replacement dispatch. Customers are not required to return the defective unit before a replacement is dispatched for critical process applications — contact our sales team to arrange an advance replacement under warranty.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and certificate of origin for each shipment. Export from Xiamen, China is handled via DHL Express, FedEx International Priority, or sea freight depending on order volume and urgency. Lead time for in-stock units is typically 1–3 business days from order confirmation to dispatch.
