Honeywell DC-TDOB01 Replacement/Upgrade for Experion PKS C300

Product Overview

Honeywell DC-TDOB01 Replacement/Upgrade Solution for Experion PKS C300: Seamless Migration from Legacy DCS I/O

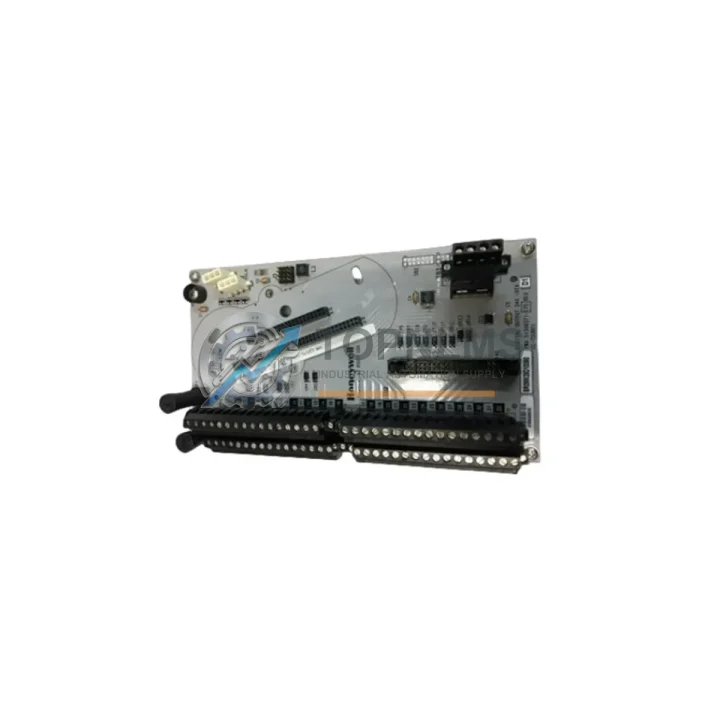

The Honeywell DC-TDOB01 is a 16-channel, 24VDC digital output module designed for the Experion PKS (Process Knowledge System) platform, specifically engineered for integration within the C300 Controller architecture. As legacy DCS installations age and original equipment reaches end-of-life or becomes increasingly difficult to source, the DC-TDOB01 serves as a critical replacement and upgrade solution for facilities running older Honeywell TDC 3000, PlantScape, or early-generation Experion PKS configurations. This module enables engineers and procurement teams to execute a controlled, low-risk migration without requiring full system redesign, panel rewiring, or controller reprogramming.

At TOPNLMS, we maintain verified stock of the DC-TDOB01 with full pre-shipment functional testing, ensuring every unit dispatched from our Xiamen facility meets original Honeywell factory specifications. Each module is covered by a 12-month replacement warranty, providing procurement assurance for MRO buyers, system integrators, and plant maintenance teams operating under tight uptime requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or around the DC-TDOB01 rarely involves a single module swap. In practice, plant engineers undertaking a C300-based DCS modernization project will encounter a range of interdependent components that must be evaluated for compatibility and replaced in a coordinated sequence.

When replacing digital output capacity in a C300 chassis, the DC-TDOB01 works in conjunction with its corresponding IOTA terminal assembly, which provides the physical field wiring interface between the module and the process field devices — typically solenoid valves, motor starters, or relay coils wired at 24VDC. If the existing IOTA is damaged or incompatible with the replacement module revision, it must be sourced alongside the DC-TDOB01 to avoid field wiring disruption.

On the input side of the same control loop, facilities frequently pair the DC-TDOB01 with the DC-TDIB01 — Honeywell’s 16-channel 24VDC digital input module — to maintain balanced I/O capacity within the same chassis slot group. Both modules share the same physical form factor and communicate over the same C300 I/O Link, simplifying spare parts management and reducing the number of unique part numbers held in MRO inventory.

For analog process signals, the DC-TAOX01 (analog output) and DC-TAIX01 (analog input) modules are commonly installed in adjacent slots within the same Experion PKS I/O chassis. When a facility is upgrading a legacy TDC 3000 or PlantScape node to a C300 architecture, these analog I/O modules are typically replaced as a set alongside the digital I/O modules to ensure uniform firmware revision levels and consistent I/O Link behavior across the chassis.

The C300 Controller module itself is the supervisory component that manages all I/O communication over the Fault-Tolerant Ethernet (FTE) network. During a migration from an older Honeywell controller — such as the HPM (High-Performance Process Manager) or ACE node — the C300 must be confirmed at a firmware revision compatible with the DC-TDOB01 module revision. Mismatched firmware between the controller and I/O modules is one of the most common causes of commissioning delays in Experion PKS upgrade projects.

Communication infrastructure also requires attention. The FTE network connecting the C300 to the Experion PKS server relies on dedicated FTE switches (Honeywell-qualified managed Ethernet switches) and structured cabling. In older installations where the legacy LCN coaxial network is being decommissioned, the FTE switch infrastructure must be installed and validated before the C300 and its I/O modules can be brought online.

For facilities that retain legacy field instruments wired to older terminal blocks or marshalling panels, signal isolators and signal conditioners are frequently required to bridge the electrical characteristics of legacy field wiring to the DC-TDOB01’s 24VDC sourcing output specification. This is particularly relevant in brownfield retrofits where the field cable plant is being reused rather than replaced.

Finally, engineering teams performing the migration will require a licensed copy of Honeywell Control Builder — the Experion PKS configuration and programming environment — along with the appropriate FTE programming cable or network connection to download updated control strategies to the C300. If the existing control strategy was developed on a PlantScape or TDC 3000 platform, a strategy migration and re-validation effort is required before the DC-TDOB01 and associated I/O can be placed in service.

Retrofit Guidance FAQ

Q: Is the DC-TDOB01 a direct drop-in replacement for older Honeywell digital output modules?
A: The DC-TDOB01 is designed for the Experion PKS C300 platform. It is a direct replacement for same-generation C300 digital output modules of the same channel count and voltage specification. Replacing modules from the TDC 3000 or PlantScape platforms requires a platform migration rather than a direct swap, as the backplane interface and communication protocol differ fundamentally.

Q: Can I reuse existing field wiring when installing the DC-TDOB01?
A: In most cases, yes. The DC-TDOB01 connects to the field via its IOTA terminal assembly, which accepts standard 24VDC field wiring. If the existing field cables are correctly rated and the terminal block layout matches the IOTA pinout, field wiring can be reused without modification. Always verify wire gauge, insulation rating, and terminal torque specifications against the Honeywell DC-TDOB01 installation manual before reusing legacy cables.

Q: What communication protocol does the DC-TDOB01 use?
A: The DC-TDOB01 communicates with the C300 Controller over the Honeywell I/O Link — a proprietary serial bus that runs within the Experion PKS I/O chassis. The C300 Controller then communicates upstream to the Experion PKS server over Fault-Tolerant Ethernet (FTE). The DC-TDOB01 itself does not require any external network configuration; all addressing is handled through Control Builder during the I/O assignment process.

Q: How much physical space does the DC-TDOB01 require in the control cabinet?
A: The DC-TDOB01 occupies a single slot in a standard Experion PKS I/O chassis. The chassis itself mounts on a standard DIN rail or panel-mount configuration within the control cabinet. No additional space beyond the standard chassis slot allocation is required, making it suitable for retrofits where cabinet space is constrained.

Q: Do I need to modify my control program when replacing a failed DC-TDOB01?
A: A like-for-like replacement of a DC-TDOB01 with the same module type and revision does not require control program modification. The I/O assignment in Control Builder references the chassis slot address, not the physical module serial number. After physical replacement, a module download from Control Builder is recommended to confirm the I/O Link is re-established and all channel assignments are active.

Q: What is the lead time and shipping arrangement for the DC-TDOB01?
A: TOPNLMS ships from Xiamen, China. In-stock units are dispatched within 1–3 business days of order confirmation. International express freight (DHL, FedEx, or UPS) is available for urgent replacement requirements. Estimated transit time to most destinations is 3–7 business days. All units undergo pre-shipment functional testing before dispatch.

Warranty Assurance

Every DC-TDOB01 supplied by TOPNLMS is backed by a 12-month replacement warranty from the date of shipment. Our warranty program is designed to meet the procurement and risk management requirements of industrial facilities, system integrators, and MRO buyers who cannot afford module failures to cause extended process downtime.

Pre-Shipment Testing: Each unit is functionally tested prior to dispatch to verify channel integrity, backplane interface operation, and output voltage compliance. Test records are available upon request for quality-controlled procurement processes.

Replacement Support: In the event of a warranty claim, TOPNLMS will dispatch a replacement unit upon receipt and inspection of the returned module. Expedited replacement dispatch is available for critical process applications — contact our sales team to arrange priority handling.

After-Sales Response: Our technical sales team is available via email and phone to support installation queries, compatibility verification, and documentation requests. We maintain records of all dispatched units to facilitate traceability and warranty administration.

Procurement Assurance: TOPNLMS operates as a specialist supplier of industrial automation components with a focus on DCS, PLC, and I/O module procurement. We source from verified supply channels and do not supply counterfeit or refurbished-as-new components. All units are supplied with original manufacturer packaging where available.
