Honeywell DC-TDIL51 Replacement Solution for Experion PKS C300: Seamless Transition & Legacy System Compatibility

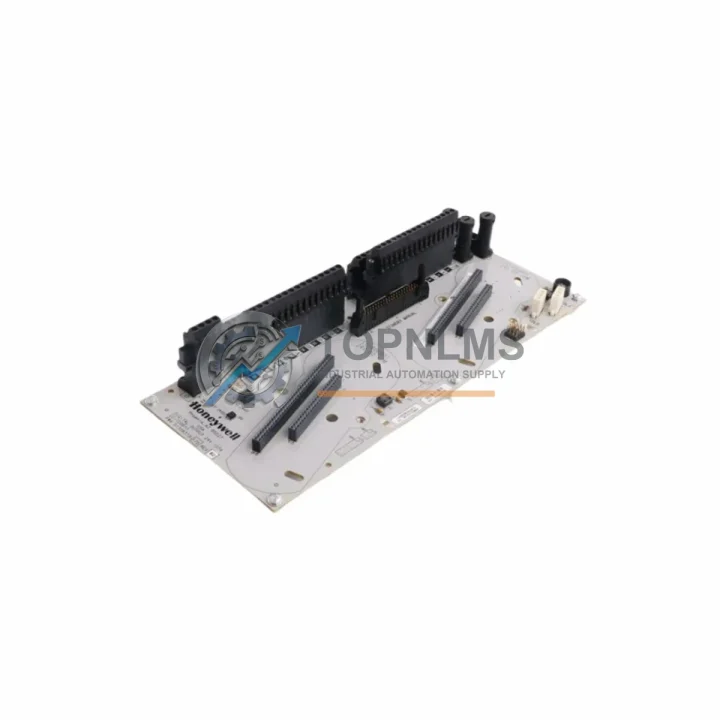

The Honeywell DC-TDIL51 is a Digital Input IOTA (I/O Termination Assembly) module designed for the Experion PKS C300 Controller platform. As aging DCS installations approach end-of-life or face discontinued spare-part availability, facilities running legacy Honeywell TotalPlant Solution (TPS) or PlantScape systems are increasingly migrating to the Experion PKS architecture. The DC-TDIL51 serves as a critical bridge component in this migration, providing a direct-wired field termination point for 24 VDC digital input signals without requiring rewiring of existing field cables.

When upgrading from older Honeywell HPM (High-Performance Process Manager) I/O subsystems or decommissioning legacy FTA (Field Termination Assembly) panels, the DC-TDIL51 IOTA allows engineers to retain existing field wiring while transitioning the control logic to the C300 controller environment. This dramatically reduces installation labor, minimizes the risk of wiring errors during cutover, and shortens the overall plant shutdown window required for migration.

The module interfaces directly with the Honeywell DC-FDI16D Digital Input FIM (Field Interface Module), forming a complete I/O channel pair within the C300 I/O subsystem. During a typical retrofit, the DC-TDIL51 IOTA mounts on the standard C300 I/O carrier, accepting the same 24 VDC discrete signals previously handled by legacy HPM Digital Input modules. Engineers migrating from the Honeywell MC-TDID12 or similar TPS-era digital input termination assemblies will find the wiring pinout and channel density comparable, enabling a structured, phase-by-phase cutover strategy.

For facilities running mixed-generation control architectures — where a Honeywell C300 Controller (DC-CONT02) coexists with older Series C or ACE nodes — the DC-TDIL51 integrates cleanly into the Experion PKS network via the FTE (Fault Tolerant Ethernet) backbone, maintaining deterministic scan rates and alarm response times consistent with the broader DCS platform. No additional protocol converters or signal conditioners are required for standard 24 VDC dry-contact or wet-contact digital inputs.

Power supply compatibility is a key consideration during any DCS migration. The DC-TDIL51 IOTA draws its operating power from the C300 I/O carrier bus, which is typically fed by a Honeywell DC-PSU1 or DC-PSU2 Power Supply Unit. Facilities replacing aging UPS-backed power distribution panels should verify that the new power supply rail meets the inrush and steady-state current requirements for the full complement of IOTA modules installed per carrier. In most C300 cabinet configurations, a single redundant power supply pair is sufficient for up to eight IOTA positions.

Communication between the DC-TDIL51 and the C300 controller is handled entirely over the internal C300 I/O Link — a proprietary, high-speed serial bus embedded within the carrier backplane. This eliminates the need for external Modbus RTU, PROFIBUS DP, or FOUNDATION Fieldbus wiring at the IOTA level, simplifying the cabinet layout and reducing potential points of failure. For facilities that previously relied on Honeywell PMIO or LLMUX multiplexer assemblies to aggregate digital inputs, migrating to the DC-TDIL51 IOTA architecture consolidates field terminations into a more maintainable, standardized form factor.

Physical installation is straightforward: the DC-TDIL51 mounts on the standard Honeywell DC-IOCI16 or DC-IOCI08 I/O Carrier, secured with a single captive screw. The module’s compact DIN-rail-compatible footprint is well-suited for retrofitting existing control cabinets where space is constrained. Field wiring connects via a removable screw-terminal block, allowing the IOTA to be replaced without disturbing field cables — a significant advantage during live-system maintenance or emergency spare replacement scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete migration from a legacy HPM or TPS digital input subsystem to the Experion PKS C300 platform typically involves several interdependent components beyond the DC-TDIL51 IOTA itself. The DC-FDI16D Digital Input FIM must be installed on the same carrier to provide the logical I/O channel mapping between the IOTA field terminations and the C300 controller scan engine. For facilities also upgrading analog input channels in the same cabinet, the DC-TAIX51 Analog Input IOTA (a related SKU in this same product family) can be installed on adjacent carrier positions, maintaining a consistent wiring and maintenance philosophy across all I/O types.

Where digital output control is required alongside digital input monitoring — for example, in motor control center (MCC) or valve actuator applications — the DC-TDOD51 Digital Output IOTA pairs directly with the DC-TDIL51 in the same C300 cabinet, sharing the same carrier bus and power supply infrastructure. This eliminates the need for separate marshalling panels for input and output signals, reducing overall cabinet footprint and simplifying cable management.

For sites migrating communication-intensive nodes — such as those previously using Honeywell HPMM (High-Performance Multifunction Module) controllers with extensive peer-to-peer data links — the transition to C300 may also require updating the FTE network switch infrastructure to support the higher bandwidth demands of the Experion PKS supervisory layer. In these cases, the DC-TDIL51 IOTA installation is typically completed in parallel with FTE switch upgrades, allowing I/O migration to proceed loop-by-loop without requiring a full system cutover.

Programming and configuration of the DC-TDIL51 within the Experion PKS environment is performed using Honeywell Control Builder software. Engineers migrating from legacy LCN (Local Control Network) or HPM configuration tools will find that Control Builder’s graphical function block environment significantly reduces the time required to re-engineer existing control strategies. In most cases, existing HPM DI channel configurations can be replicated in Control Builder within a structured migration template, with the DC-TDIL51 IOTA automatically recognized upon carrier power-up.

For field commissioning and loop checkout, a Honeywell FTE diagnostic cable and laptop running Experion PKS Station provides real-time channel status, force capability, and diagnostic alarm visibility — enabling technicians to verify each DC-TDIL51 input channel against the physical field device before returning the loop to automatic control. This structured commissioning approach, combined with the IOTA’s removable terminal block design, minimizes the risk of wiring errors and reduces overall loop checkout time compared to legacy FTA-based systems.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a legacy HPM Digital Input FTA with the DC-TDIL51?
A: Yes. The DC-TDIL51’s removable screw-terminal block accepts standard 0.5–1.5 mm² field wiring. In most HPM-to-C300 migrations, existing field cables can be re-terminated directly onto the DC-TDIL51 without re-pulling cable, provided the signal type (24 VDC discrete) and polarity are verified during loop checkout.

Q: Is the DC-TDIL51 compatible with both dry-contact and wet-contact digital input signals?
A: The DC-TDIL51 supports 24 VDC wet-contact (voltage-sourced) digital inputs as its primary configuration. Dry-contact inputs require an external 24 VDC wetting voltage source, which is typically provided by the existing field panel power distribution. Consult the Honeywell Experion PKS I/O Installation Guide for channel-specific wiring diagrams.

Q: What is the physical space requirement for the DC-TDIL51 in an existing C300 cabinet?
A: The DC-TDIL51 occupies one IOTA slot on a standard DC-IOCI16 or DC-IOCI08 carrier. A fully populated DC-IOCI16 carrier with 16 IOTA positions fits within a standard 19-inch rack or DIN-rail cabinet section. For cabinets previously housing larger HPM FTA panels, the C300 IOTA architecture typically results in a net reduction in panel space, freeing room for additional I/O expansion or cable management improvements.

Q: Does the DC-TDIL51 require any firmware updates or configuration downloads before installation?
A: The DC-TDIL51 IOTA is a passive termination assembly — it contains no embedded firmware. Configuration is performed entirely within Control Builder at the FIM and controller level. Upon installation, the C300 controller automatically detects the IOTA via the carrier backplane and applies the pre-configured channel parameters from the Control Builder database.

Q: Can the DC-TDIL51 be hot-swapped during live plant operation?
A: The DC-TDIL51 supports field replacement with the carrier powered, provided the associated FIM is placed in a safe state and the affected I/O channels are placed in manual or fallback mode in the DCS. Always follow site-specific MOC (Management of Change) and LOTO (Lockout/Tagout) procedures before removing any IOTA module from a live carrier.

Warranty Assurance

Every Honeywell DC-TDIL51 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional inspection including visual examination, connector integrity check, and where applicable, power-on verification to confirm the unit is free from physical damage and obvious electrical faults.

Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units, with expedited shipping options available for urgent plant maintenance requirements. We ship globally from our Xiamen, China warehouse, with DHL Express, FedEx International Priority, and UCP freight options available depending on destination and order volume.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical team with the order reference and a description of the fault, and we will arrange a replacement unit dispatch or full refund within the warranty period. Our after-sales response target is within 24 hours on business days. We do not require the faulty unit to be returned before dispatching a replacement for verified warranty cases, minimizing your plant downtime exposure.

For procurement teams requiring documentation, we can provide a commercial invoice, packing list, certificate of origin, and test report upon request. All units are sourced through verified supply channels and are represented as tested, functional industrial spare parts suitable for installation in Honeywell Experion PKS C300 control systems.
