Honeywell DC-TDIL11 Ruggedized Digital Input Module for Harsh Environments

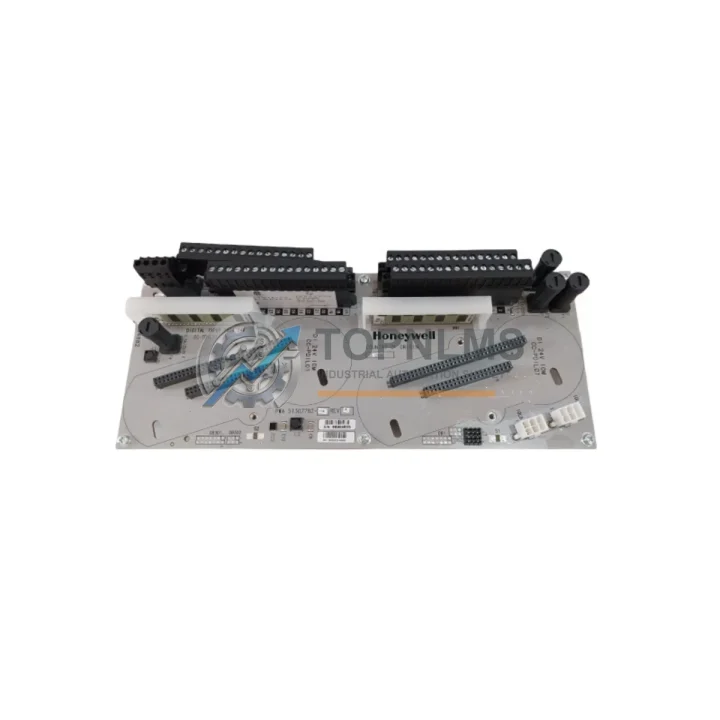

The Honeywell DC-TDIL11 is a high-integrity Digital Input IOTA (I/O Termination Assembly) engineered for the Experion PKS C300 Controller platform — one of the most widely deployed Distributed Control Systems in critical process industries worldwide. Designed to operate continuously in demanding industrial environments, the DC-TDIL11 delivers deterministic signal acquisition, robust field wiring termination, and seamless integration with Honeywell’s redundant I/O architecture. Whether deployed in a petrochemical refinery, offshore platform, power generation facility, or heavy metallurgical plant, this module is built to sustain reliable performance where failure is not an option.

Industrial field environments impose extreme stresses on control hardware: ambient temperatures that swing from sub-zero cold starts to sustained high-heat operation near furnaces and compressors; persistent humidity and condensation in coastal or tropical installations; airborne particulate contamination from cement, coal dust, or mineral processing; mechanical vibration from rotating machinery, pumps, and conveyors; and broadband electromagnetic interference generated by variable frequency drives, high-voltage switchgear, and arc welding equipment. The DC-TDIL11 is rated and validated to withstand these conditions, maintaining signal integrity and system availability across the full operational lifecycle of a process plant.

Within the Experion PKS architecture, the DC-TDIL11 pairs directly with the Honeywell MC-TDID12 Digital Input FTA and interfaces with the C300 Process Controller via the Series C I/O Link. This tight integration ensures that field digital signals — from limit switches, proximity sensors, pressure switches, and safety interlock contacts — are accurately captured and transmitted to the controller with minimal latency. The module supports standard 24 VDC field wiring and provides clearly labeled screw terminals for fast, error-free field installation and maintenance.

Rugged Specifications Table

Comprehensive Protection Solutions

The DC-TDIL11 does not operate in isolation — it is one node in a tightly integrated control and safety architecture. In a typical Experion PKS cabinet, it works alongside the Honeywell MC-PAIH03 Analog Input FTA and the MC-TAIH02 Analog Input IOTA to handle both digital and analog field signals within the same I/O chassis. For process safety applications, the DC-TDIL11 digital inputs feed directly into safety logic executed by the Honeywell Safety Manager SC, which coordinates emergency shutdown sequences and safety instrumented functions in compliance with IEC 61511.

Power distribution within the control cabinet is managed by dedicated Honeywell 24 VDC Power Supply modules and redundant power conditioners that protect the entire I/O bus from voltage transients and brownouts — a critical consideration in facilities where large motor starters and variable frequency drives such as the Honeywell HC900 Hybrid Controller share the same electrical infrastructure. Surge protection devices and EMI filters installed upstream of the I/O termination assemblies further shield the DC-TDIL11 from conducted interference.

Field signal conditioning is often handled by Pepperl+Fuchs or MTL Zener barrier and galvanic isolator modules mounted on DIN rails adjacent to the IOTA, ensuring that signals from hazardous area sensors — including ATEX-rated proximity switches and solenoid valve position feedback contacts — are safely isolated before entering the Experion PKS I/O bus. Communication between the C300 controller and the plant-wide SCADA or historian is routed through Honeywell FTE (Fault Tolerant Ethernet) switches, providing redundant network paths that maintain data continuity even during partial network failures.

For plants running mixed automation architectures, the DC-TDIL11 can coexist in the same control room with Siemens S7-400 PLC racks, ABB AC800M controllers, or Emerson DeltaV I/O cards, each managing their respective process units while sharing a common OPC-UA data highway. Terminal blocks from Phoenix Contact or Weidmüller are commonly used to extend and organize field wiring connections at the IOTA level, providing color-coded, labeled termination points that simplify maintenance and reduce wiring errors during panel modifications.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities — including wellhead control panels, gas compression stations, and pipeline SCADA nodes — the DC-TDIL11 monitors the discrete status of high-integrity shutdown valves, pressure safety switches, and flame detector relay outputs. Its ability to operate reliably in high-vibration environments near reciprocating compressors and its tolerance for wide ambient temperature swings make it a preferred choice for remote unmanned installations where maintenance access is infrequent and system uptime is paramount.

In coal-fired and combined-cycle power generation plants, the module handles digital inputs from turbine protection systems, boiler drum level switches, and generator breaker status contacts. The Experion PKS platform’s redundant I/O capability — leveraged through paired DC-TDIL11 assemblies in a redundant configuration — ensures that no single point of failure in the I/O termination layer can cause an unplanned unit trip, protecting both equipment and grid stability.

Water and wastewater treatment facilities rely on the DC-TDIL11 to monitor pump run/fail status, valve open/closed feedback, and high-level float switch signals across distributed pump stations. The module’s compatibility with long field cable runs — common in large treatment plants where field devices may be hundreds of meters from the control room — and its robust noise immunity ensure accurate signal acquisition even in the presence of variable speed pump drives and large transformer installations.

In metallurgical and mining operations, including smelters, concentrators, and continuous casting lines, the DC-TDIL11 endures elevated ambient temperatures, heavy airborne dust, and intense electromagnetic fields generated by arc furnaces and large DC drive systems. Installed within sealed, climate-controlled control cabinets rated to IP54 or higher, the module provides the signal acquisition backbone for conveyor interlock systems, crusher protection circuits, and furnace safety shutdown logic — applications where a missed or spurious digital signal can result in catastrophic equipment damage or personnel injury.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the DC-TDIL11?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified digital input acquisition functions within the warranty period, we will provide a replacement or full refund. The warranty applies to both new and certified-refurbished units and is supported by our in-house technical team in Xiamen, China.

Q2: How is the DC-TDIL11 tested before shipment?
Every DC-TDIL11 unit undergoes a comprehensive pre-shipment functional test protocol that verifies all 16 digital input channels for correct signal acquisition, proper termination continuity, and absence of internal faults. Refurbished units additionally undergo a full power-on burn-in cycle and visual inspection for component condition. A test report is available upon request for customers requiring documented quality evidence for their maintenance records.

Q3: Is the DC-TDIL11 compatible with all Experion PKS C300 configurations, including redundant I/O setups?
Yes. The DC-TDIL11 is designed specifically for the Honeywell Experion PKS Series C I/O architecture and is fully compatible with both simplex and redundant C300 controller configurations. It pairs with the MC-TDID12 FTA and connects via the standard Series C I/O Link. Customers upgrading from earlier Experion R2xx to R5xx releases should verify firmware compatibility with their site’s Experion PKS version; our technical team can assist with compatibility confirmation prior to purchase.

Q4: Can you support long-term or repeat supply of the DC-TDIL11 for ongoing maintenance programs?
Absolutely. We maintain standing inventory of the DC-TDIL11 and related Honeywell Experion PKS Series C I/O components to support plant maintenance, turnaround sparing, and emergency replacement programs. Customers with multi-site operations or annual maintenance contracts are encouraged to contact us to discuss volume pricing, reserved stock arrangements, and priority shipment agreements. We ship globally from Xiamen with standard lead times of 3–7 business days for in-stock units.
