Honeywell CC-TPOX01 51306528-175 Replacement for Experion PKS

Product Overview

Honeywell CC-TPOX01 51306528-175 Replacement for Experion PKS C300: Seamless FF H1 Migration & Upgrade

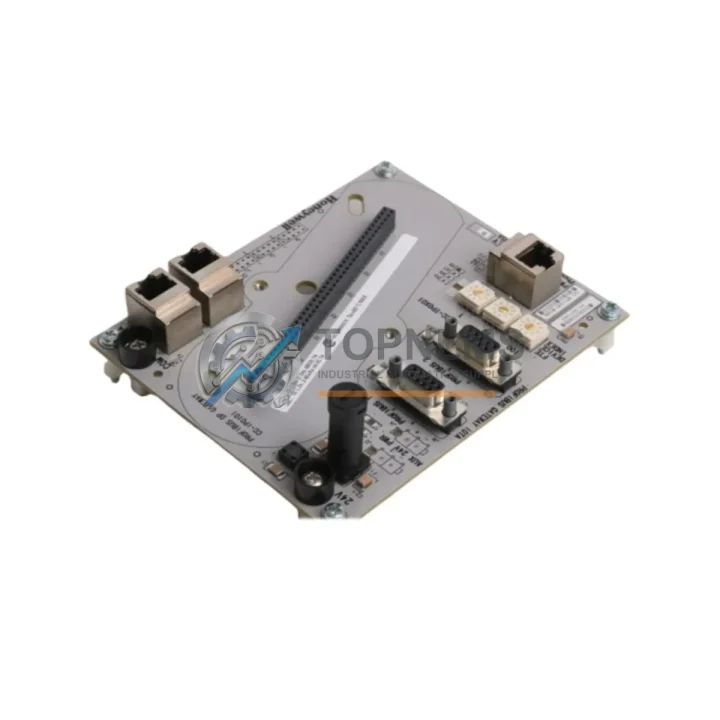

The Honeywell CC-TPOX01 (Part No. 51306528-175) is the FOUNDATION Fieldbus H1 Link Interface Card designed for the Experion PKS C300 Controller platform. As Honeywell continues to evolve its DCS ecosystem, many facilities running legacy Experion PKS R400 or R500 architectures are now facing end-of-life support challenges for this module. TOPNLMS supplies verified CC-TPOX01 / 51306528-175 units — both new-surplus and factory-refurbished — to support your plant’s continuity, scheduled turnaround, or emergency replacement needs without forcing a full system overhaul.

Whether your existing CC-TPOX01 has failed in service, is flagged as a critical spare, or you are executing a phased migration from an older Honeywell TDC 3000 or PlantScape system to the current Experion PKS architecture, this card slots directly into the C300 Controller Chassis and restores FF H1 segment communication with zero re-engineering of your field device wiring. The card supports up to two independent FF H1 segments per slot, maintaining compatibility with all FOUNDATION Fieldbus-compliant field instruments already installed on your process lines — including transmitters, valve positioners, and analyzers from major vendors.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CC-TPOX01 replacement or system migration rarely involves a single module in isolation. In practice, engineers replacing this FF H1 Link Interface Card are simultaneously reviewing the health of adjacent components within the same C300 chassis. The CC-PCNT01 C300 Controller Module is the most common co-replacement item — if the LIC has failed due to backplane voltage irregularities, the controller itself should be inspected and a spare sourced concurrently. Similarly, the CC-PWR01 / 51309512-175 Power Supply Module that feeds the C300 chassis should be verified, as under-voltage conditions are a leading cause of premature LIC failure.

For sites running multiple FF H1 segments across a large process unit, the CC-TPDO01 Digital Output Link Interface Card and CC-TPAI01 Analog Input Link Interface Card are frequently ordered alongside the CC-TPOX01 to complete a full I/O refresh within the same maintenance window. If your migration involves consolidating legacy HLAI or LLAI field termination assemblies, the CC-TAIX01 / 51305476-175 Analog Input FTA and associated CC-TCNT01 Control Net Interface may also be required to bridge older wiring infrastructure to the current Experion PKS backplane architecture.

Sites transitioning from TDC 3000 HPM racks will often need to re-engineer their MC-TAIH03 HLAI FTA connections and remap I/O addresses in Experion Control Builder. During this process, having a CC-SCMB01 System Cabinet Mounting Base and verified Experion PKS R501 or R511 software license in place before the physical swap significantly reduces commissioning time. Our team can advise on compatible spare combinations based on your existing chassis slot map and segment count.

Retrofit Guidance FAQ

Q: Can I replace the CC-TPOX01 without modifying field wiring?
A: Yes. The CC-TPOX01 connects to existing FF H1 trunk cables via the chassis backplane and the associated field termination assembly. As long as your trunk cable, segment conditioner, and field devices remain unchanged, the card swap is a direct replacement with no field wiring modification required.

Q: Do I need to re-download the control strategy after replacement?
A: In most cases, yes. After inserting the new CC-TPOX01, you will need to perform a module load from Experion Control Builder to restore the FF H1 segment configuration, device tags, and function block assignments. The process typically takes 15–30 minutes per segment in a prepared environment.

Q: Is the CC-TPOX01 compatible with all Experion PKS releases?
A: The CC-TPOX01 / 51306528-175 is qualified for Experion PKS R400 through R511. Compatibility with R600 and later should be confirmed against Honeywell’s current compatibility matrix, as newer releases may require firmware updates to the card before commissioning.

Q: What communication protocols does this card support?
A: The CC-TPOX01 exclusively supports FOUNDATION Fieldbus H1 at 31.25 kbps. It does not support HART, Profibus PA, or Modbus. If your migration involves transitioning from HART to FF H1, field instruments must also be replaced or converted.

Q: How much physical space does the card require?
A: The CC-TPOX01 occupies a single slot in the standard C300 Controller Chassis (CC-PCNT01). No additional cabinet space or external power supply is required beyond the existing chassis installation.

Warranty Assurance

Every CC-TPOX01 / 51306528-175 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to dispatch, each module undergoes a multi-point functional inspection including backplane connector integrity check, firmware version verification, and power-on self-test validation. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 3 business days of confirmed fault diagnosis. We maintain buffer stock of high-demand Experion PKS C300 series modules specifically to support emergency replacement scenarios with minimal lead time. Our after-sales team is reachable via email and phone for technical pre-sales consultation, installation guidance, and post-delivery support throughout the warranty period.

For bulk procurement, project-based orders, or standing spare agreements, please contact us directly to discuss pricing, lead time, and consignment stocking options tailored to your plant’s maintenance schedule.
