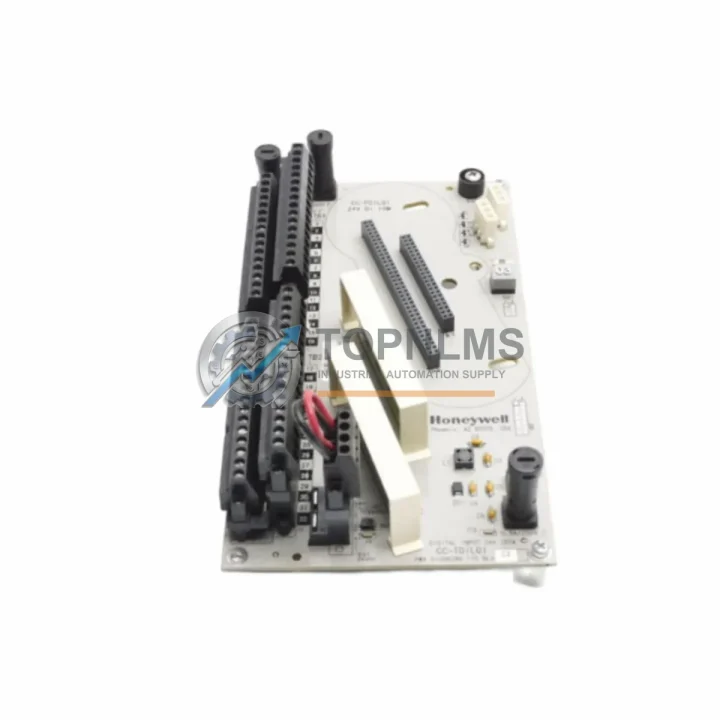

Honeywell CC-TDIL01 51308386-175 Replacement for Experion PKS C300

Product Overview

Honeywell CC-TDIL01 51308386-175 Replacement for Experion PKS C300: Seamless Transition from Legacy DI Systems

The Honeywell CC-TDIL01 (part number 51308386-175) is a 32-channel Digital Input module engineered for the Experion PKS C300 Series distributed control system. As legacy DCS installations age and original equipment reaches end-of-life or becomes increasingly difficult to source, the CC-TDIL01 serves as the authoritative drop-in replacement for facilities operating earlier-generation Honeywell TDC 3000, PlantScape, and first-generation Experion PKS platforms. This module enables plant engineers to modernize their I/O infrastructure without redesigning the control architecture, rewriting control strategies, or incurring extended shutdown windows.

Designed to mount directly into the standard C300 I/O Link chassis, the CC-TDIL01 accepts 32 discrete 24 VDC digital input signals and communicates over the Honeywell proprietary I/O Link bus to the C300 Controller. The module’s field wiring termination is handled through a compatible I/O termination assembly — typically the CC-TAIX11 or CC-TAIX51 terminal block — preserving existing field cable runs and eliminating the need for rewiring during a retrofit. This wiring compatibility is one of the most significant cost-reduction factors when migrating from older Honeywell I/O subsystems, where field cable replacement alone can represent a substantial portion of total project cost.

For sites transitioning from the Honeywell PMIO or LLMUX I/O families, the CC-TDIL01 provides a structured migration path. The C300 controller, paired with this DI module, supports the same function block programming environment used in legacy Experion configurations, meaning that existing control logic — including interlock sequences, permissive chains, and alarm management strategies — can be migrated with minimal modification. Engineers familiar with Honeywell Control Builder will find the commissioning workflow consistent with prior project experience.

In multi-cabinet control room environments, the CC-TDIL01 is typically deployed alongside complementary modules such as the CC-TDOB01 32-channel Digital Output module and the CC-TAIX11 termination assembly, forming a complete discrete I/O subsystem within a single C300 I/O chassis. For analog signal integration within the same rack, the CC-TAIM01 Analog Input module and CC-TAOM01 Analog Output module are commonly installed in adjacent slots, allowing a single C300 controller to manage both discrete and analog field devices from a unified I/O chassis. This consolidated architecture reduces panel footprint, simplifies cable management, and lowers long-term maintenance overhead.

Communication between the CC-TDIL01 and the C300 Controller is handled entirely over the I/O Link protocol, a deterministic, fault-tolerant bus that supports redundant controller configurations. Sites running redundant C300 controller pairs — a common configuration in safety-critical process industries such as refining, petrochemicals, and power generation — will find that the CC-TDIL01 participates fully in the redundancy switchover mechanism, with no loss of field signal monitoring during a controller failover event. This behavior is consistent with the broader Experion PKS C300 I/O architecture and requires no additional configuration beyond standard redundancy setup in Control Builder.

For facilities that have historically relied on the Honeywell FSC (Fail-Safe Controller) or Safety Manager platforms for safety-instrumented functions, the CC-TDIL01 is not a direct replacement for safety-rated I/O. However, it is frequently deployed in parallel with FSC or Safety Manager I/O in the same control room, handling non-safety discrete inputs while the safety system manages SIL-rated functions. This co-deployment approach is well-established in brownfield modernization projects and allows the process control and safety layers to be upgraded on independent schedules.

Physical installation of the CC-TDIL01 follows the standard C300 I/O chassis slot assignment procedure. The module is hot-swappable in systems where the chassis power supply and I/O Link bus remain energized, enabling replacement during live plant operation in many configurations — a critical capability for continuous-process facilities where planned shutdowns are infrequent. Field engineers should verify chassis firmware compatibility and I/O Link segment loading prior to hot-swap operations, consistent with Honeywell’s standard maintenance procedures for Experion PKS C300 I/O.

Power consumption of the CC-TDIL01 is supplied from the C300 I/O chassis backplane, sourced from the chassis power supply module — typically the CC-PWR001 or CC-PWR002 redundant power supply units. No separate field-side power supply is required for the module itself, though field device power for the 24 VDC input circuits must be provided externally, consistent with standard discrete input wiring practice. This power architecture simplifies cabinet design and reduces the number of discrete power distribution components required in a retrofit project.

From a procurement standpoint, the CC-TDIL01 51308386-175 available through TOPNLMS is sourced from verified supply channels, individually inspected prior to shipment, and covered by a 12-month replacement warranty. Each unit undergoes functional verification to confirm I/O Link communication integrity, channel-level input detection, and backplane power draw within specification. Units are shipped in anti-static packaging with full documentation support. Expedited shipping from our Xiamen warehouse is available for urgent plant maintenance requirements, with typical lead times of 3–7 business days for international destinations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete C300 I/O modernization project rarely involves a single module. In practice, the CC-TDIL01 is deployed as part of a broader I/O chassis build-out that addresses the full range of field signal types present in a legacy DCS installation. The CC-TDOB01 32-channel Digital Output module is the natural companion to the CC-TDIL01, handling discrete output functions — motor starters, solenoid valves, and on/off actuators — within the same I/O chassis. Together, these two modules cover the discrete I/O requirements of most process unit control panels.

For analog field instruments — pressure transmitters, flow meters, temperature elements, and control valve positioners — the CC-TAIM01 Analog Input module and CC-TAOM01 Analog Output module provide 4–20 mA signal handling within the same C300 I/O chassis, allowing a single chassis to serve as a complete field I/O hub for a process unit. The CC-TAIX11 and CC-TAIX51 termination assemblies connect to both digital and analog I/O modules, providing the physical field wiring interface and preserving existing cable infrastructure during the migration.

Controller-level upgrades typically involve the C300 Controller module itself, which serves as the I/O Link master and executes the control strategy. In redundant configurations, a pair of C300 controllers operates in lockstep, with automatic failover ensuring continuous process control. The C300 chassis backplane, powered by the CC-PWR001 or CC-PWR002 redundant power supply, provides the structural and electrical foundation for the entire I/O assembly. For sites requiring communication gateway functions — connecting the Experion PKS system to third-party PLCs, SCADA systems, or field device networks using Modbus, PROFIBUS, or OPC — the Honeywell EPLCG Ethernet PLC Gateway or equivalent communication interface modules are commonly integrated into the same control room architecture.

HMI integration is typically handled through the Experion PKS Station or a compatible Honeywell operator workstation, which provides the process graphics, alarm management, and historian functions that operators rely on during and after the migration. Ensuring that the HMI configuration is updated to reflect the new I/O module addresses and channel assignments is a standard commissioning step that should be completed and verified before returning the process unit to normal operation.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a legacy Honeywell DI module with the CC-TDIL01?
A: In most cases, yes. The CC-TDIL01 uses the CC-TAIX11 or CC-TAIX51 termination assembly as its field wiring interface. If your existing field cables are 24 VDC discrete input circuits and are terminated at a compatible marshalling panel or junction box, they can typically be re-landed on the new termination assembly without modification. Verify cable labeling and signal polarity before reconnection.

Q: Do I need to rewrite my control logic after installing the CC-TDIL01?
A: Not necessarily. If you are migrating from an earlier Experion PKS I/O configuration, the function block logic in Control Builder can often be retained with only I/O address reassignment required. Migrations from TDC 3000 or PlantScape will require a more structured logic migration effort, but the Control Builder environment supports import tools and manual remapping workflows that reduce the engineering effort compared to a full rewrite.

Q: Is the CC-TDIL01 compatible with redundant C300 controller configurations?
A: Yes. The CC-TDIL01 participates fully in the C300 redundancy architecture. During a controller failover, the module continues to report field input states to the backup controller without interruption, ensuring that interlock and alarm functions remain active throughout the switchover.

Q: What communication protocol does the CC-TDIL01 use?
A: The CC-TDIL01 communicates exclusively over the Honeywell I/O Link protocol, which is the native bus for the C300 I/O chassis. It is not compatible with PROFIBUS, Modbus, or other open fieldbus protocols directly. Integration with third-party systems is handled at the controller or gateway level, not at the I/O module level.

Q: How much physical space does the CC-TDIL01 require in the control cabinet?
A: The CC-TDIL01 occupies one slot in a standard C300 I/O chassis. The chassis itself is designed for standard 19-inch rack or panel mounting. If you are replacing a legacy module that occupied a different form factor, verify that the C300 chassis fits within your existing cabinet rail space before ordering. TOPNLMS can provide dimensional drawings on request.

Q: Can the CC-TDIL01 be replaced while the plant is running?
A: Hot-swap replacement is supported in configurations where the I/O Link bus and chassis power remain energized. However, replacing the module will interrupt the 32 input channels served by that slot for the duration of the swap. Assess the process impact of losing those input signals before performing a live replacement, and coordinate with operations accordingly.

Warranty Assurance

Every Honeywell CC-TDIL01 51308386-175 shipped by TOPNLMS is backed by a 12-month replacement warranty from the date of delivery. Our pre-shipment inspection process includes I/O Link communication verification, channel-level input detection testing, backplane power draw measurement, and visual inspection for physical damage or component anomalies. Units that do not pass all inspection criteria are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit as the primary remedy, with the goal of minimizing your plant downtime. Warranty claims are processed within 2 business days of receipt of the returned unit and supporting documentation. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance throughout the warranty period.

For urgent plant maintenance situations, TOPNLMS maintains stock of the CC-TDIL01 and related C300 I/O modules in our Xiamen warehouse, with expedited shipping options available to minimize the time between order placement and module delivery. We ship internationally to all major industrial regions, with tracking provided for all shipments.

Purchasing the CC-TDIL01 through TOPNLMS provides access to a verified supply chain, documented inspection records, and responsive after-sales support — reducing the procurement risk associated with sourcing discontinued or hard-to-find DCS components from unverified channels.
