Honeywell CC-TCNT01 51308307-175 Replacement for C300

Product Overview

Honeywell CC-TCNT01 51308307-175 Replacement for C300: Seamless DCS Migration & Upgrade Solution

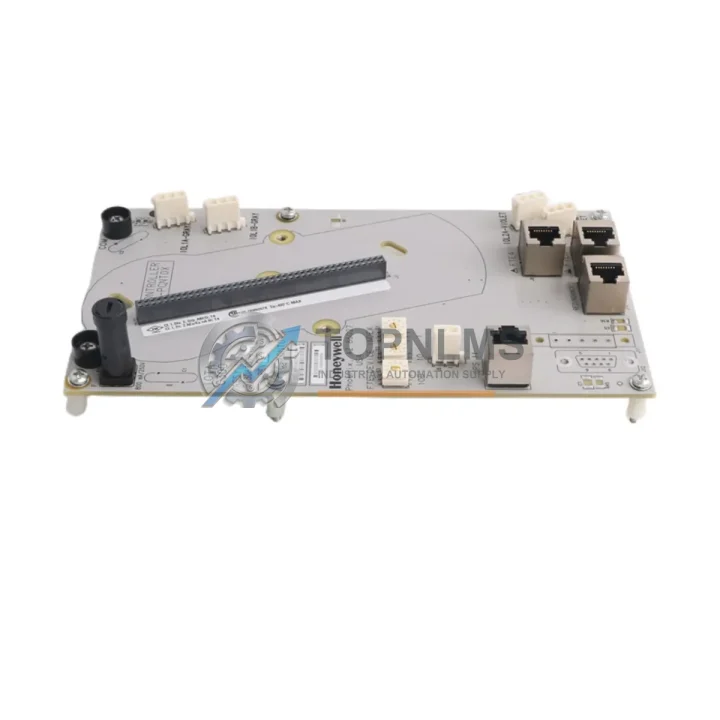

The Honeywell CC-TCNT01 (P/N 51308307-175) is a field-proven I/O Termination Assembly designed for the Experion PKS C300 Controller platform. As legacy DCS installations age and original Honeywell spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source reliable, drop-in compatible replacements that minimize engineering rework, reduce unplanned downtime, and preserve existing field wiring investments.

At TOPNLMS, we stock the CC-TCNT01 51308307-175 as a verified replacement and upgrade solution for C300-based control systems. Whether you are executing a planned turnaround, responding to an emergency breakdown, or executing a phased DCS modernization project, this termination assembly delivers the wiring compatibility, mechanical fit, and signal integrity your system demands.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful C300 DCS migration rarely involves a single component. In practice, replacing or upgrading the CC-TCNT01 51308307-175 termination assembly is one step in a broader system modernization effort. During field commissioning and system integration, engineers typically work alongside several complementary components within the same control cabinet or I/O chassis.

The CC-TCNT01 interfaces directly with the Honeywell CC-PAIM01 Analog Input Module and the CC-PAOX01 Analog Output Module, both of which mount on the same C300 I/O chassis and share the same field wiring termination philosophy. When migrating from a TDC 3000 or PlantScape installation, the CC-PDOB01 Digital Output Module and CC-PDIL01 Digital Input Module are frequently replaced in the same work order, since their termination assemblies follow the same DIN rail mounting standard as the CC-TCNT01.

Power distribution within the C300 cabinet is typically handled by the CC-PWR001 Power Supply Module, which must be verified for load capacity when adding new I/O termination assemblies. For systems requiring HART device integration, the CC-TAIX11 HART-enabled termination assembly is often deployed alongside the CC-TCNT01 to support smart field instruments without additional signal conditioners.

Communication continuity during migration is maintained through the C300 Controller Module (CC-PCF901) and its associated FTE network switch, which must be confirmed compatible with the firmware revision of the replacement termination assembly. In larger migration projects involving multiple I/O cabinets, the CC-SCMB01 Series Communication Module and CC-LINK01 I/O Link Interface are also commonly sourced as part of the same procurement package to ensure end-to-end system coherence.

For sites upgrading from older marshalling architectures, a signal isolator or barrier strip may be required at the field junction box level to protect the new termination assembly from legacy wiring insulation issues. TOPNLMS can advise on compatible signal conditioning accessories based on your specific field instrument inventory.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing the CC-TCNT01?
A: Yes. The CC-TCNT01 51308307-175 uses a standard screw terminal block interface that is dimensionally and electrically compatible with the original C300 termination assembly. In most retrofit scenarios, field cables can be reconnected directly without re-pulling or re-labeling, significantly reducing installation labor and the risk of wiring errors during hot cutover.

Q: Is the CC-TCNT01 compatible with my existing C300 controller firmware?
A: The CC-TCNT01 is compatible with Experion PKS R400 and later releases. If your C300 controller is running an earlier firmware revision, a firmware upgrade may be required prior to installation. TOPNLMS recommends confirming the controller revision (CC-PCF901 or equivalent) before finalizing the replacement order.

Q: Do I need to modify my control program (Control Builder) after replacing the termination assembly?
A: No program changes are required for a like-for-like termination assembly replacement. The I/O channel assignments, tag names, and HART device descriptors remain intact. If you are simultaneously upgrading from an older I/O module type (e.g., replacing a CC-PAIM01 with a newer variant), a partial Control Builder download may be required to update the I/O module definition.

Q: What are the physical space requirements for installation?
A: The CC-TCNT01 mounts on a standard 35mm DIN rail and occupies approximately the same footprint as the original assembly. It is designed to fit within a standard 19-inch control cabinet without requiring panel modifications. Verify that the DIN rail section is free of obstructions and that the I/O chassis has an available slot before ordering.

Q: How is the CC-TCNT01 connected to the C300 I/O chassis?
A: The termination assembly connects to the I/O module via a keyed ribbon cable or direct backplane connector, depending on the chassis generation. Ensure the mating I/O module (e.g., CC-PAIM01 or CC-PDIL01) is present and seated correctly before energizing the assembly.

Q: Can this unit replace termination assemblies from TDC 3000 or PlantScape systems?
A: The CC-TCNT01 is a C300-platform-specific component and is not a direct physical replacement for TDC 3000 or PlantScape termination panels. However, it is the correct target component when migrating field I/O from those legacy platforms to the Experion PKS C300 architecture. TOPNLMS can provide a migration BOM review upon request.

Warranty Assurance

Every Honeywell CC-TCNT01 51308307-175 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point inspection covering physical integrity, connector condition, terminal block seating, and label verification. Units that do not meet our outgoing quality standard are quarantined and not offered for sale.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost. Our after-sales response target is within 24 business hours of a warranty claim submission. We understand that DCS component failures in operating plants carry significant operational risk, and our procurement support team is structured to respond accordingly.

For time-critical plant shutdowns or emergency breakdown situations, expedited shipping options are available from our Xiamen warehouse. Most in-stock orders are processed and dispatched within 1–2 business days. Tracking information is provided upon shipment confirmation.

TOPNLMS maintains a dedicated inventory of C300-platform components to support both planned maintenance programs and unplanned breakdown requirements. Our team can assist with cross-referencing legacy part numbers, confirming compatibility with your installed base, and coordinating multi-line procurement packages for turnaround projects.

For procurement inquiries, technical compatibility questions, or warranty claims, contact our team directly:

📧 [email protected]
📞 +86 18359293191
