Honeywell CC-TCF901 Ruggedized FTE Firewall Module for Harsh Environments

Product Overview

Honeywell CC-TCF901 Ruggedized FTE Firewall Module for Harsh Environments

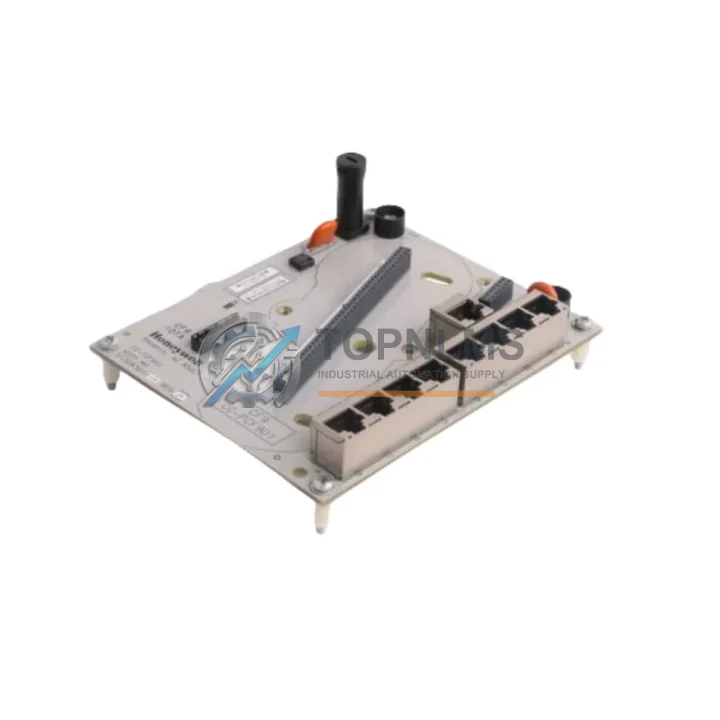

The Honeywell CC-TCF901 (P/N 51308301-175) is a Fault-Tolerant Ethernet (FTE) Control Firewall Module engineered for mission-critical deployment within the Experion PKS (Process Knowledge System) distributed control architecture. Designed to operate continuously in high-temperature, high-humidity, dust-laden, and electromagnetically noisy industrial environments, this module delivers the network segmentation and traffic filtering that modern process control networks demand. Whether installed in a petrochemical control room, a power generation facility, or a heavy-metals smelting plant, the CC-TCF901 maintains deterministic communication between controller nodes and operator workstations without compromise.

At TOPNLMS, every CC-TCF901 unit is sourced from verified supply channels, subjected to pre-shipment functional verification, and dispatched with a 12-month replacement warranty. Our inventory is maintained in a climate-controlled warehouse in Xiamen, China, enabling rapid fulfillment to customers across Asia-Pacific, the Middle East, and Europe.

Rugged Specifications Table

Comprehensive Protection Solutions

The CC-TCF901 does not operate in isolation — it is the network guardian at the heart of a tightly integrated Experion PKS control system. In a typical heavy-industry control cabinet, it works in concert with the Honeywell C300 Process Controller, which executes the real-time control strategies, and the CC-PCNT01 Pulse Counter Module and CC-PAIH01 Analog Input Module, which feed field-level process data into the controller over the IOLINK backplane. The firewall module enforces strict traffic boundaries between the FTE supervisory network and the controller-level network, preventing unauthorized broadcast storms or rogue packets from disrupting scan cycles.

On the power side, the system relies on Honeywell CC-PWR01 Power Supply Modules to deliver clean, regulated backplane power. Any transient on the supply rail that bypasses the power module’s filtering could propagate to the FTE switch fabric — the CC-TCF901’s onboard isolation circuitry provides a secondary line of defense. For I/O expansion, CC-TDIL01 Digital Input Modules and CC-TDOB01 Digital Output Modules connect field devices such as solenoid valves, motor starters, and safety interlocks. The firewall module ensures that I/O data traversing the FTE backbone reaches the SCADA layer without latency spikes caused by unfiltered multicast traffic.

In safety-instrumented system (SIS) architectures, the CC-TCF901 is frequently deployed alongside Honeywell Safety Manager SC controllers and FSC (Fail-Safe Controller) modules, where network segregation between the basic process control network (BPCN) and the safety network (SN) is a regulatory requirement under IEC 61511. Communication gateways such as the Honeywell IOLINK Gateway Module bridge legacy serial field devices to the FTE backbone, and the CC-TCF901 ensures that this bridged traffic is properly filtered before reaching the C300 controller. Terminal modules including the CC-TAIX11 Analog Input Terminal Assembly complete the signal chain from field transmitters to the control layer, all protected by the firewall’s traffic management policies.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations — wellhead automation, pipeline SCADA, and compressor station control — the CC-TCF901 is a standard component in Experion PKS cabinets exposed to wide ambient temperature swings, salt-laden air, and persistent vibration from rotating machinery. Its dual-path FTE architecture means that a single cable fault or switch failure does not interrupt controller-to-supervisory communication, a non-negotiable requirement in unmanned remote stations.

At coal-fired and gas-fired power generation plants, the module manages the boundary between the unit control network and the plant information network, preventing historian polling traffic from interfering with turbine governor control loops. In water and wastewater treatment facilities, where control cabinets are often located in humid pump houses with limited HVAC, the CC-TCF901’s wide humidity tolerance and conformal-coated PCB design ensure long mean-time-between-failure (MTBF) even without air conditioning.

In metallurgical and mining operations — electric arc furnace control, ore conveyor automation, and flotation cell management — electromagnetic interference from high-current bus bars and variable-frequency drives (VFDs) is a constant threat to Ethernet-based control networks. The CC-TCF901’s EMI-hardened design, combined with shielded FTE cabling practices, maintains sub-millisecond network latency even in the presence of severe conducted and radiated interference. For chemical and petrochemical plants operating under ATEX or IECEx zone classifications, the module is installed in purged and pressurized enclosures (Ex p), with the FTE cabling routed through certified conduit systems to maintain hazardous-area compliance.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers functional failure under normal operating conditions. If the CC-TCF901 fails within the warranty period, TOPNLMS will ship a verified replacement unit at no additional cost after the defective module is returned for inspection. Typical replacement dispatch is within 3–5 business days of claim confirmation. Contact [email protected] to initiate a warranty claim.

Q2: How is each unit tested before shipment?
Every CC-TCF901 unit undergoes a pre-shipment inspection that includes visual examination for physical damage, power-on self-test (POST) verification, and FTE port link-up confirmation using a bench-level Experion PKS test chassis. Units that fail any inspection step are quarantined and not dispatched. A test report summary is available upon request for customers with quality assurance requirements.

Q3: Is the CC-TCF901 compatible with all Experion PKS software releases?
The CC-TCF901 (51308301-175) is compatible with Experion PKS Release R310 and all subsequent releases through R520 and beyond. It is backward-compatible with C300 Controller firmware versions that support FTE Rev 2 and Rev 3 network topologies. Customers upgrading from an earlier Experion release should verify their FTE switch firmware version against Honeywell’s compatibility matrix — TOPNLMS technical support can assist with this assessment prior to purchase.

Q4: Can TOPNLMS guarantee long-term supply for ongoing maintenance and spare-parts programs?
Yes. TOPNLMS maintains a dedicated inventory buffer for high-demand Experion PKS modules including the CC-TCF901, C300 controllers, and associated I/O modules. For customers running multi-year maintenance contracts or planned turnaround schedules, we offer reserved-stock agreements to guarantee availability. Bulk pricing and priority fulfillment are available for orders of 3 units or more. Contact our sales team at [email protected] or +86 18359293191 to discuss your spare-parts program requirements.
