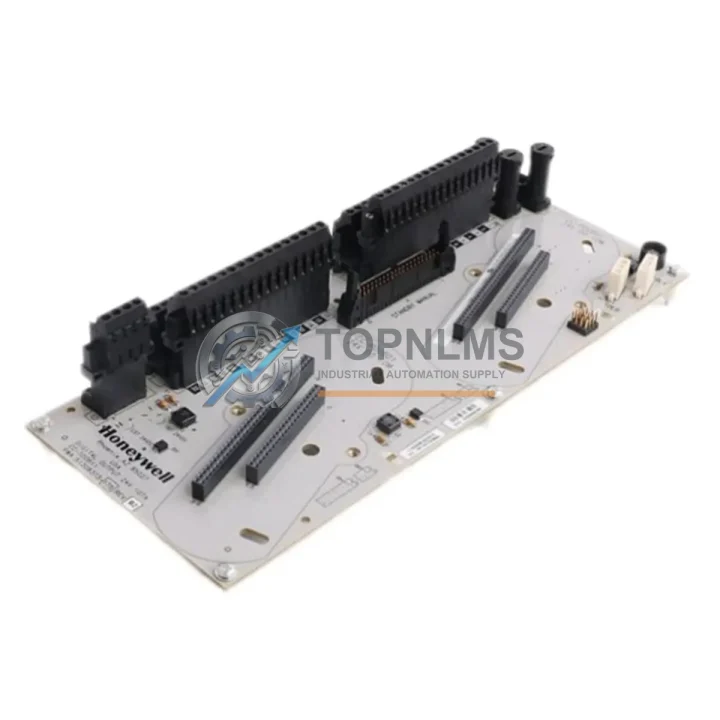

Honeywell CC-TAOX11 51308353-175 Ruggedized Analog Output Module

Product Overview

Honeywell CC-TAOX11 51308353-175 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

The Honeywell CC-TAOX11 51308353-175 is a single-channel analog output CHARM (Characterization Module) engineered for deployment within the Honeywell Experion PKS distributed control system architecture. Designed to operate reliably under the most demanding industrial conditions — including high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference — this module delivers the signal integrity and operational continuity that mission-critical process industries demand.

As a CHARM-based I/O component, the CC-TAOX11 51308353-175 integrates directly into the CHARM I/O Assembly (CIOA) and communicates with the C300 Controller over the FTE (Fault Tolerant Ethernet) backbone. Its characterization architecture eliminates the need for marshalling cabinets, dramatically reducing wiring complexity and panel footprint while improving system diagnostics and field device visibility. Each channel is individually configurable, enabling engineers to adapt signal ranges and output types without hardware replacement — a critical advantage in continuous production environments where downtime carries significant operational cost.

In oil and gas upstream and midstream facilities, where control panels are exposed to hydrocarbon vapors, salt-laden air, and wide diurnal temperature swings, the CC-TAOX11 51308353-175 maintains stable 4–20 mA analog output to final control elements such as control valves, variable-speed drives, and electro-pneumatic positioners. Its robust signal conditioning circuitry suppresses common-mode noise and ground loop interference, ensuring that the output signal reaching the field device accurately reflects the setpoint commanded by the C300 Controller — even in the presence of high-voltage switching transients from adjacent variable frequency drives (VFDs) or large motor starters.

In power generation and substation automation environments, the module operates alongside Honeywell’s CC-TAIX11 single-channel analog input CHARM and CC-TDIL01 digital input CHARM modules, forming a cohesive I/O layer that feeds real-time process data to the Experion PKS historian and operator workstations. The CHARM architecture’s built-in loop diagnostics continuously monitor field wiring integrity, detecting open-circuit and short-circuit faults before they escalate into unplanned shutdowns — a capability that directly supports IEC 61511 functional safety requirements in Safety Instrumented Systems (SIS) applications.

Water treatment and wastewater facilities operating 24/7 rely on the CC-TAOX11 51308353-175 to drive dosing pump controllers, valve actuators, and blower speed references with consistent accuracy. The module’s galvanic isolation between field and system sides protects the C300 Controller backplane from ground faults originating in wet or chemically aggressive field environments. When paired with the CC-PAIH01 CHARM power adapter and the CIOM-A CHARM I/O Module, the assembly provides a fully redundant, hot-swappable I/O node that can be replaced under power without interrupting the control loop — a feature that is indispensable in continuous-process industries where scheduled maintenance windows are measured in hours per year.

In metallurgical and heavy manufacturing plants — steel mills, aluminum smelters, and cement kilns — where radiated heat, conductive dust, and high-frequency vibration are constant operating realities, the CC-TAOX11 51308353-175 sustains output accuracy across its full operating temperature range. Its conformal-coated PCB resists moisture ingress and corrosive atmospheric agents, extending mean time between failures (MTBF) in environments that would rapidly degrade standard commercial-grade electronics. Maintenance engineers working on Honeywell Experion PKS systems can replace this CHARM module in the field without reconfiguration, as the characterization data is stored in the CIOA — reducing spare-parts management complexity and accelerating fault recovery.

Mining operations, where control panels are subject to blast vibration, diesel exhaust particulates, and intermittent power quality issues, benefit from the module’s wide input power tolerance and its ability to maintain output stability during brief supply voltage dips. The CC-TAOX11 51308353-175 works in concert with CC-TCNT01 counter/frequency input CHARMs and CC-TDOB01 digital output CHARMs to provide comprehensive I/O coverage across conveyor systems, crusher controls, and ventilation management applications — all within a single CHARM I/O Assembly that minimizes cabinet space and simplifies cable management.

For pharmaceutical and food-and-beverage manufacturers operating under GMP and HACCP regulatory frameworks, the module’s deterministic output behavior and comprehensive audit trail support — enabled through Experion PKS’s integrated change management — facilitate compliance with process validation requirements. Its compatibility with the C300 Controller and the broader Experion PKS R500 and later software releases ensures that facilities upgrading from legacy TDC 3000 or PlantScape systems can integrate the CC-TAOX11 51308353-175 into their modernized control architecture without disrupting validated process parameters.

TOPNLMS maintains verified stock of the Honeywell CC-TAOX11 51308353-175, sourced through established industrial supply channels. Every unit undergoes functional verification prior to dispatch, including output signal accuracy testing across the 4–20 mA range and visual inspection of connector integrity and PCB condition. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express international freight options available to minimize downtime for urgent replacement requirements.

Rugged Specifications Table

Comprehensive Protection Solutions

The CC-TAOX11 51308353-175 is most effective when deployed as part of a fully integrated Honeywell Experion PKS I/O strategy. In a typical C300-based control cabinet, it operates alongside the CC-TAIX11 single-channel analog input CHARM for closed-loop PID control, and the CC-TDIL01 and CC-TDOB01 digital I/O CHARMs for discrete device monitoring and actuation. Power distribution to the CHARM I/O Assembly is managed through the CC-PAIH01 CHARM power adapter, which provides regulated, isolated power rails to each installed CHARM module — protecting the entire I/O node from field-side power disturbances.

For applications requiring functional safety compliance, the CC-TAOX11 51308353-175 can be integrated within a broader safety architecture that includes Honeywell’s Safety Manager system and associated SM-series I/O modules, providing a layered defense against process hazards. Communication integrity between the C300 Controller and the Experion PKS server is maintained over the FTE switch network, which provides redundant Ethernet paths that automatically reroute traffic in the event of a cable or switch failure — ensuring that analog output commands reach the CC-TAOX11 without interruption even during network maintenance activities.

In control cabinets where space is at a premium, the CHARM architecture’s high channel density — enabled by the CIOA assembly accommodating up to 96 CHARM modules — allows engineers to consolidate analog output, analog input, digital input, digital output, and specialty function CHARMs (such as the CC-TCNT01 counter/frequency CHARM) within a single enclosure, reducing the number of I/O cabinets required and simplifying inter-cabinet wiring. Terminal modules and marshalling components are eliminated, further reducing the risk of wiring errors that can compromise both process safety and product quality.

Application in Critical Infrastructure

In oil and gas production facilities — onshore wellhead sites, offshore platforms, and LNG terminals — the CC-TAOX11 51308353-175 drives the analog setpoints of pressure control valves, flow control valves, and compressor anti-surge controllers. Its ability to maintain output accuracy in the presence of high-frequency vibration from rotating machinery and electromagnetic interference from VFD-driven pumps makes it a preferred choice for upstream automation engineers specifying replacement I/O for aging DCS installations.

In power generation — gas turbine plants, combined-cycle facilities, and hydroelectric stations — the module provides the analog output signals that position inlet guide vanes, control fuel flow valves, and regulate cooling water flow rates. Its hot-swap capability allows maintenance teams to replace a failed CHARM module during a scheduled outage window without requiring a full controller restart, minimizing the impact on generation availability.

In water and wastewater treatment plants, the CC-TAOX11 51308353-175 controls chemical dosing pumps, aeration blower speed references, and sludge dewatering press pressures. Its galvanic isolation prevents ground loops from corrupting the output signal in environments where multiple field devices share common ground references across large physical distances.

In mining and mineral processing — copper concentrators, gold processing plants, and coal preparation facilities — the module withstands the conductive dust, high humidity, and mechanical shock that characterize these environments. It provides reliable analog output to mill discharge pump speed controllers, flotation cell level controllers, and thickener rake drive controllers, supporting continuous production targets that cannot tolerate unplanned I/O failures.

In metallurgical and steel manufacturing plants, where furnace radiated heat and high-current bus bars generate intense electromagnetic fields, the CC-TAOX11 51308353-175’s EMC-hardened design maintains signal integrity for analog outputs driving combustion air damper actuators, cooling water flow control valves, and rolling mill tension controllers.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact TOPNLMS at [email protected] with the order reference and a description of the fault. We will arrange return shipping, perform functional verification, and dispatch a replacement or repaired unit within the agreed lead time. Warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling.

Q2: How is each unit tested before shipment?
Every CC-TAOX11 51308353-175 unit in our inventory undergoes pre-shipment functional verification, including analog output signal accuracy testing across the 4–20 mA range, visual inspection of PCB condition and connector integrity, and confirmation of firmware version compatibility where applicable. Units that do not meet specification are quarantined and not dispatched. Test records are retained and can be provided upon request for quality-assurance documentation purposes.

Q3: Is this module compatible with all versions of the Honeywell Experion PKS platform?
The CC-TAOX11 51308353-175 is designed for use with the Honeywell Experion PKS C300 Controller and CHARM I/O Assembly (CIOA). It is compatible with Experion PKS R400 and later software releases. For installations running earlier software versions or using the C200/C200E controller platform, compatibility should be verified against the Honeywell system release notes and the CHARM I/O compatibility matrix. TOPNLMS technical staff can assist with compatibility verification prior to order placement.

Q4: Can TOPNLMS support long-term supply and emergency replacement requirements?
Yes. TOPNLMS maintains ongoing stock of the CC-TAOX11 51308353-175 and related Honeywell Experion PKS CHARM modules to support both planned maintenance programs and emergency breakdown replacement scenarios. For customers with critical infrastructure requirements, we recommend establishing a framework supply agreement to ensure priority access to stock. Emergency orders received before 14:00 CST on business days are typically dispatched the same day via express international freight, with tracking information provided upon dispatch.
