Honeywell CC-TAIX01 51308363-175 Replacement for Experion PKS C300: Seamless Migration & Upgrade Solution

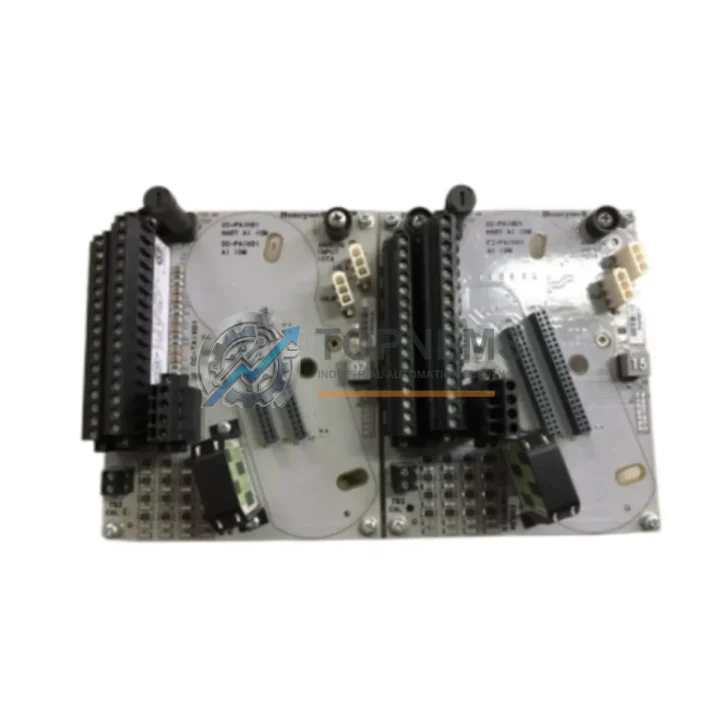

The Honeywell CC-TAIX01 (part number 51308363-175) is a dedicated Analog Input Termination Assembly engineered for the Experion PKS distributed control system platform, specifically designed to interface with the C300 Controller and its associated I/O Link architecture. As legacy Experion PKS installations age and original termination assemblies reach end-of-service life, facilities engineers and procurement teams face the critical challenge of sourcing verified replacement units that maintain full backward compatibility — without triggering costly re-engineering of field wiring, marshalling cabinets, or control logic.

TOPNLMS supplies the CC-TAIX01 51308363-175 as a direct drop-in replacement for existing Experion PKS C300 analog input subsystems. Each unit is sourced from authorized supply chains, individually inspected prior to dispatch, and backed by a 12-month replacement warranty. Stock is maintained in Xiamen, China, with international express shipping available to minimize plant downtime during unplanned failures or scheduled turnarounds.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration-Ready Components for Experion PKS C300

A successful migration or replacement project involving the CC-TAIX01 51308363-175 rarely involves a single component in isolation. In practice, field engineers replacing a failed or end-of-life termination assembly will simultaneously audit the surrounding I/O infrastructure to prevent repeat failures and ensure system-wide integrity.

The CC-TAIX01 interfaces directly with the CC-PAIH01 Analog Input HLAI Module, which processes the conditioned analog signals from the termination assembly and passes them upstream via the I/O Link bus. When replacing the termination assembly, it is best practice to verify the health of the paired HLAI module simultaneously — particularly in installations that have been running continuously for more than five years.

The I/O Link bus itself is managed by the CC-IOLIM01 I/O Link Interface Module, which connects the C300 Controller to the distributed I/O chassis. In aging Experion PKS installations migrating from TDC 3000 or earlier Honeywell platforms, the IOLIM is often a bottleneck component that warrants replacement alongside the termination assembly to eliminate latent communication faults.

For facilities upgrading from older analog I/O architectures — particularly those previously using Honeywell PM I/O or HPM (High-Performance Process Manager) modules — the transition to Experion PKS C300 I/O requires careful attention to signal scaling, loop power configuration, and marshalling cabinet layout. The CC-TAIX01 supports passive field devices powered via external loop supplies, and engineers migrating from HPM analog input cards should verify that existing 24 VDC loop power distribution panels remain compatible with the new termination assembly’s wiring scheme.

In multi-cabinet control room retrofits, the CC-PCNT01 C300 Controller Module itself is frequently upgraded in parallel with I/O termination assemblies. The C300 controller communicates with the CC-TAIX01 through the I/O Link architecture, and upgrading the controller firmware or replacing an aging C300 unit requires no re-configuration of the termination assembly — a key advantage of the Experion PKS modular design.

Projects that also involve digital I/O migration will typically require the CC-TDID11 Digital Input Termination Assembly and the CC-TDOD11 Digital Output Termination Assembly alongside the analog input termination assembly. These components share the same DIN rail mounting standard and I/O Link bus architecture, simplifying cabinet layout and reducing installation time during turnaround windows.

For sites where signal integrity is a concern — particularly in high-noise industrial environments such as refineries, chemical plants, or power generation facilities — the addition of signal isolators or galvanic barriers between field transmitters and the CC-TAIX01 termination assembly is a common engineering recommendation. These passive or active isolators protect the termination assembly from ground loops and transient voltage spikes originating in the field.

Finally, commissioning engineers will require a Honeywell FTE (Fault Tolerant Ethernet) network switch and a configured Experion PKS Engineering Station running Control Builder software to perform loop checkout, signal calibration, and I/O assignment verification after the CC-TAIX01 replacement is physically installed. TOPNLMS can advise on compatible programming cables and interface hardware upon request.

Retrofit Guidance FAQ

Q: Can I replace the CC-TAIX01 51308363-175 without rewiring field cables?
A: Yes. The CC-TAIX01 uses a screw-terminal field wiring interface that is pin-compatible with predecessor termination assemblies in the Experion PKS C300 I/O family. Field cables can be transferred directly from the old assembly to the replacement unit without modification, provided the cable labeling and loop documentation are verified prior to reconnection.

Q: Is any programming or controller reconfiguration required after replacement?
A: In most cases, no. The CC-TAIX01 is a passive termination assembly — it does not contain firmware or configurable parameters. The C300 Controller and associated HLAI module retain their existing I/O assignments and signal scaling configurations. A loop check and signal verification via the Experion PKS Engineering Station is recommended after installation, but no Control Builder reprogramming is typically required.

Q: Is the CC-TAIX01 compatible with both C200 and C300 controllers?
A: The CC-TAIX01 51308363-175 is specifically designed for the C300 I/O architecture. Compatibility with C200 or C200E controllers depends on the I/O Link interface module in use. Please contact TOPNLMS with your system configuration details for a compatibility assessment before ordering.

Q: What communication protocol does the CC-TAIX01 use?
A: The CC-TAIX01 communicates via Honeywell’s proprietary I/O Link protocol, managed by the CC-IOLIM01 I/O Link Interface Module. It does not use HART, PROFIBUS, or Modbus directly at the termination assembly level — HART pass-through capability depends on the paired HLAI module configuration.

Q: Will the replacement unit fit in the existing cabinet space?
A: Yes. The CC-TAIX01 51308363-175 maintains the standard Experion PKS termination assembly form factor and DIN rail mounting dimensions. No additional cabinet space or mounting hardware modifications are required for a like-for-like replacement.

Q: How do I verify the replacement unit is functioning correctly after installation?
A: After physical installation and field wiring reconnection, use the Experion PKS Engineering Station and Control Builder to perform an I/O checkout. Verify that each analog input channel reads the expected 4–20 mA signal from the field transmitter. Check the system event log for any I/O Link communication alarms. TOPNLMS provides pre-shipment test documentation upon request.

Warranty Assurance

Every CC-TAIX01 51308363-175 unit supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Our warranty commitment covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) units confirmed through our returns assessment process.

Pre-Shipment Testing: Each unit undergoes visual inspection and functional verification before dispatch. Test records are available upon request for quality-critical procurement processes.

Replacement Support: In the event of a warranty claim, TOPNLMS will dispatch a replacement unit on a priority basis to minimize plant downtime. Our team will coordinate with your procurement and engineering contacts to expedite the replacement process.

After-Sales Response: Our technical support team is available via email and phone to assist with installation queries, compatibility questions, and commissioning support throughout the warranty period.

Procurement Assurance: TOPNLMS maintains stock of Honeywell Experion PKS components in Xiamen, China, with international express shipping to major industrial regions. Lead times, export documentation, and customs compliance support are available upon request.

For urgent replacement requirements, emergency stock inquiries, or volume procurement discussions, contact our team directly.
